Switronix

Switronix JP-A-BASE 3-Stud JetPack

SKU: SXJPABASE MFR: JP-A-BASE
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$419.00 $17 per week
Free Expedited Shipping
Qty:
Add to Wishlist

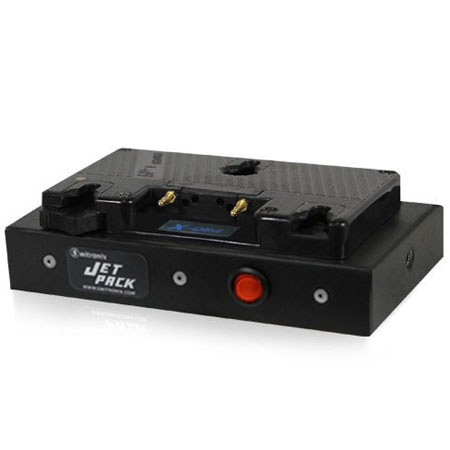

About the Switronix JP-A-BASE 3-Stud JetPack

The Switronix JP-A-BASE 3-Stud JetPack offers all the power outputs you'll ever need in a super compact design. The all aluminum design reduces weight while still being able to handle wear and tear. The JetPack includes three 1/4-20 mounting points, as well as an optional "cheese" backplate, which offers additional 1/4-20 and 3/8-16 tapped holes.

Switronix JP-A-BASE 3-Stud JetPack Features

  • Two powertap outputs (power monitors, lights, etc.)
  • One USB output (i.e. Redmote, Tascam DR-05, other USB device)
  • One 5V Lemo output (i.e. Zoom, AJA)
  • One 7.2V regulated outputs (i.e. HDV Cameras, DSLRs)
  • One 12V regulated outputs (i.e. Blackmagic, 12v accessories)

Switronix JP-A-BASE 3-Stud JetPack Specifications

V-Mount Battery Input DC 11-17V
BMCC Pin Output DC 11-17V, Unregulated
P-Tap(2) Outputs DC 11-17v, Unregulated
O/P controlled by JetPack power switch USB Output: 5V, 1A
LEMO 2-pin(0B): 5V, 2.5A
LEMO 3-pin(0B): 7.2V, 2.5A
LEMO 4-pin(0B): 12V, 2.5A
Mounting Points 1/4-20 threads on bottom and two on back
M3 screw pattern on back for optional Cheese Plate
Dimensions 6x3.5x1.88"/15.24x8.89x4.7cm
Weight 1.2 lbs/0.54kg
