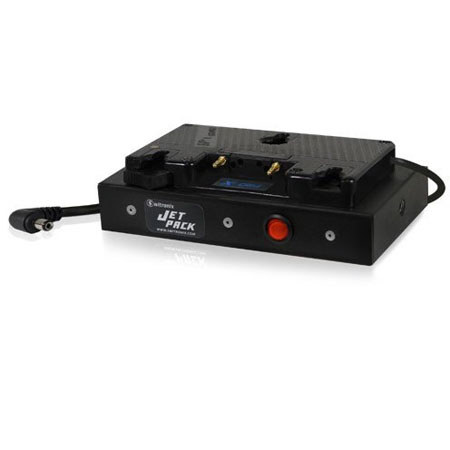

Switronix JP-A-BMCC 3-Stud JetPack for Black Magic Cinema Camera

Switronix
SKU: SXJPABMCC MFR: JP-A-BMCC
Switronix JP-A-BMCC 3-Stud JetPack: Picture 1 thumbnail Switronix JP-A-BMCC 3-Stud JetPack: Picture 2 thumbnail Switronix JP-A-BMCC 3-Stud JetPack: Picture 3 thumbnail Switronix JP-A-BMCC 3-Stud JetPack: Picture 4 thumbnail

About Switronix JP-A-BMCC 3-Stud JetPack

For limited time only, save 23.31% on the Switronix JP-A-BMCC 3-Stud JetPack dropping from 429.00 to 329.00 . The Switronix JP-A-BMCC 3-Stud JetPack also comes in and 2 other colors . Bonus: No sales tax either, unless you live in New York or New Jersey.

The Switronix JP-A-BMCC 3-Stud JetPack offers all the power outputs you'll ever need in a super compact design. The all aluminum design reduces weight while still being able to handle wear and tear. The JetPack includes three 1/4-20 mounting points, as well as an optional "cheese" backplate, which offers additional 1/4-20 and 3/8-16 tapped holes.

Switronix JP-A-BMCC 3-Stud JetPack Features

  • Power connection to your Black Magic Cinema Camera
  • Two powertap outputs (power monitors, lights, etc.)
  • One USB output (i.e. Redmote, Tascam DR-05, other USB device)
  • One 5V Lemo output (i.e. Zoom, AJA)
  • One 7.2V regulated outputs (i.e. HDV Cameras, DSLRs)
  • One 12V regulated outputs (i.e. Blackmagic, 12V accessories)

Switronix JP-A-BMCC 3-Stud JetPack Specifications

3-Stud Battery Input
DC 11-17V
BMCC Pin Output
DC 11-17V, Unregulated
P-Tap(2) Outputs
DC 11-17V, Unregulated
O/P controlled by JetPack power switch
USB Output: 5V, 1A
LEMO 2-pin(0B): 5V, 2.5A
LEMO 3-pin(0B): 7.2V, 2.5A
LEMO 4-pin(0B): 12V, 2.5A
Mounting Points
1/4-20 threads on bottom and two on back
M3 screw pattern on back for optional Cheese Plate
Dimensions
6x3.5x1.88"/15.24x8.89x4.77cm
Weight
1.2lbs/0.54kg
