Core SWX JP-V-BASE V-Mount JetPack
See all Core SWX items

Core SWX JP-V-BASE V-Mount JetPack

SKU: SXJPVBASE
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Core SWX JP-V-BASE V-Mount JetPack Specifications

  • V-Mount Battery Input

    DC 11-17V

  • BMCC Pin Output

    DC 11-17V, Unregulated

  • P-Tap(2) Outputs

    DC 11-17V, Unregulated

  • O/P controlled by JetPack power switch

    USB Output: 5V, 1a
    LEMO 2-pin(0B): 5V, 2.5A
    LEMO 3-pin(0B): 7.2V, 2.5A
    LEMO 4-pin(0B): 12V, 2.5A

  • Mounting Points

    1/4-20 threads on bottom and two on back
    M3 screw pattern on back for optional Cheese Plate

  • Dimensions

    6x3.5x1.88" (15.24x8.89x4.78cm)

  • Weight

    1.2lbs (0.54kg)

About Core SWX JP-V-BASE V-Mount JetPack

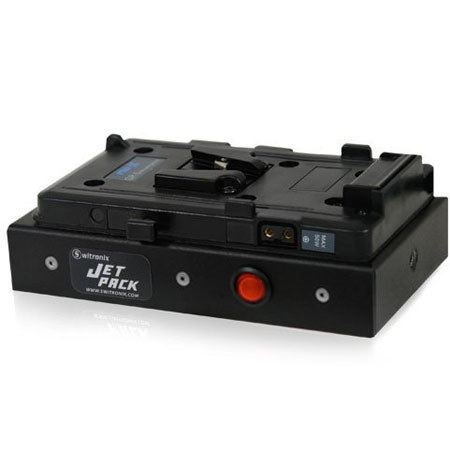

The Core SWX JP-V-BASE V-Mount JetPack offers all the power outputs you'll ever need in a super compact design. The all aluminum design reduces weight while still being able to handle wear and tear. The JetPack includes three 1/4-20 mounting points, as well as an optional "cheese" backplate, which offers additional 1/4-20 and 3/8-16 tapped holes.

Core SWX JP-V-BASE V-Mount JetPack Features

  • Two powertap outputs (power monitors, lights, etc.)
  • One USB output (i.e. Redmote, Tascam DR-05, other USB device)
  • One 5V Lemo output (i.e. Zoom, AJA)
  • One 7.2V regulated outputs (i.e. HDV Cameras, DSLRs)
  • One 12V regulated outputs (i.e. Blackmagic, 12V accessories)
