Switronix Recon Wireless HDMI 3-Stud Mount
Your card will only be charged once item ships.
What's Included With This Item:
- Switronix Recon Wireless HDMI 3-Stud Mount
- Protective Travel Case
- Switronix Warranty

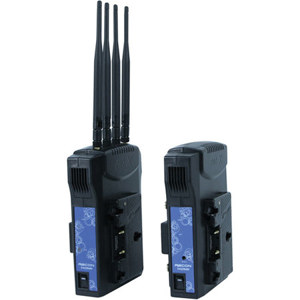

The Switronix Recon Wireless HDMI 3-Stud Mount is a transmitter and receiver set that wirelessly transfers HD video, along with embedded sound, just over 160 feet from a camera to a field monitor. The data is transferred uncompressed and with a latency of less than a millisecond, allowing real-time monitoring in high quality. Whatever is being shot can be viewed as its being captured. The transmitted data is encrypted for safety.
Power is by a 3-stud battery or by DC input via a 4-pin XLR connector. If you have both a battery and a power supply connected, a back-up power failure function will switch to the battery if the power supply is accidentally disconnected. The batteries and power supply are not included. Adding further reliability, a 5.1 - 5.9GHz frequency rate automatically adjusts frequencies in case of interference with another RF system and an external antenna further supports a stable connection.

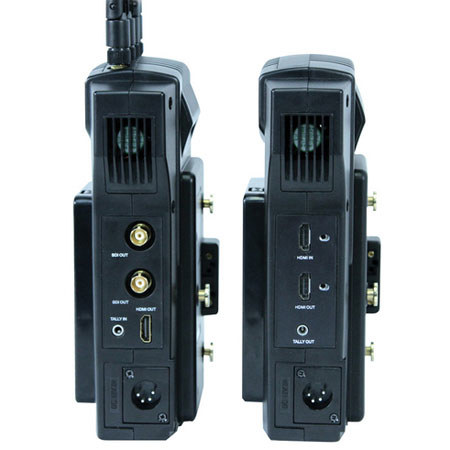

The Recon HDMI is equipped with an HDMI input and output and an HD-SDI output. The quality of data supported is fully uncompressed 1080 true cinema video with embedded sound. Also, the Recon automatically detects and supports both PAL and NTSC.
|Transmission Distance||164 ft in open space (50 m)
98 ft through walls (30 m)
|Latency||Less than 1 millisecond|
|Inputs/Outputs||Transmitter: 1 x HDMI input
Receiver: 1 x HDMI output / 2 x HD/SDI outputs
|Resolutions||1080p: 23.98psf, 24p, 25p, 25psf, 29.97p
1080I: 50i, 60i
720p: 24p, 25p, 50p, 60p
|Supported Formats||SD: 480i, 576i
SDSDI: 525/59.94i (NTSC equivalent), 625/50i (PAL equivalent)
HDMI: HD 1080i, HD720p and NTSC/PAL
|Frequency||5.1GHz - 5.9GHz|
|Dimensions||Transmitter/Receiver: 6.14 x 8 x 3" / 155.96 x 203.2 x 76.2 mm
Transmitter/Receiver Antenna: 8" / 203.2 mm
|Weight||1.8 lbs / 0.82 kg|
