164 ft in open space (50 m)
98 ft through walls (30 m)
Less than 1 millisecond
Transmitter:
(1) HDMI input
(1) HD/SDI input
(1) HD/SDI loop through output
Receiver:
(1) HDMI output
(2) HD/SDI outputs
1080p: 23.98psf, 24p, 25p, 25psf, 29.97p
1080I: 50i, 60i
720p: 24p, 25p, 50p, 60p
SD: 480i, 576i
SDSDI: 525/59.94i (NTSC equivalent)
625/50i (PAL equivalent)
HDMI: HD 1080i, HD720p and NTSC/PAL
5.1GHz - 5.9GHz
V-Mount
Transmitter/Receiver: 6.14 x 8 x 3" (15.59 x 20.3 x 7.6 cm)
Transmitter/Receiver Antenna: 8" (20.3 cm)
1.8 lbs (0.81 kg)

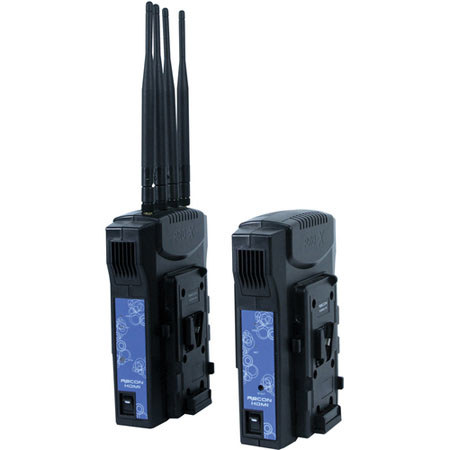

The Core SWX Recon Wireless ULTRA V-Mount Battery is a transmitter and receiver set that wirelessly transfers HD video, along with embedded sound, just over 160 feet from a camera to a field monitor. The data is transferred uncompressed and with a latency of less than a millisecond, allowing real-time monitoring in high quality. Whatever is being shot can be viewed as its being captured. The transmitted data is encrypted for safety.
Power is by a V-mount battery or by DC input via a 4-pin XLR connector. If you have both a battery and a power supply connected, a back-up power failure function will switch to the battery if the power supply is accidentally disconnected. The batteries and power supply are not included. Adding further reliability, a 5.1 - 5.9GHz frequency rate automatically adjusts frequencies in case of interference with another RF system and an external antenna further supports a stable connection.
The Recon Ultra is equipped with HDMI and SDI inputs and outputs and with a built-in HDMI to HD-SDI converter. The quality of data supported is fully uncompressed 1080 true cinema video with embedded sound. Also, the Recon automatically detects and supports both PAL and NTSC.
