Starlight Xpress Trius SX-9 USB Hub Monochrome CCD Camera System, Sony ICX285 Sensor with 1.45 Million Pixels, 17mm +/-1mm Back Focal Length

SKU: SXTRIUS9 MFR: TRIUSSX-9
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$1,675.00 $67 per week
Free Expedited Shipping
Qty:
Add to Wishlist

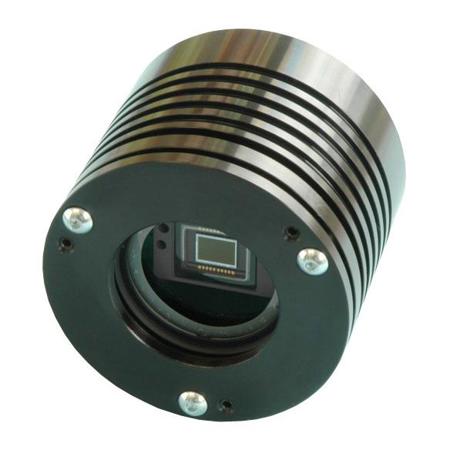

Starlight Xpress Trius SX-9: Picture 1 regular

About the Starlight Xpress Trius SX-9

The Starlight Xpress Trius SX-9 USB Hub Monochrome CCD Camera utilizes a Sony ICX285 Sensor with 1.45 million pixels. Super low-noise performance with fast download times of approximately 2 million pixels per second. A complete powered USB hub has been incorporated into the Starlight Xpress Trius SX-9 USB Hub Monochrome CCD Camera which offers three USB 2.0 ports at the rear of the camera. It is fitted with a new peltier cooler configuration to go along with an Argon-Filled CCD chamber, allowing a greater differential cooling delta to be achieved. The Starlight Xpress Trius SX-9 USB Hub Monochrome CCD Camera boasts outstanding construction in a compact, light-weight package.

Starlight Xpress Trius SX-9 Features

  • High resolution 'Exview' CCD chip, with 1,447,680 x 6.45uM pixels in a 9 x 6.7mm array
  • Exceptionally low dark signal - No dark frames necessary for most deep sky objects
  • Triple output powered USB hub built-in for guider and wheel control etc
  • Dual stage high performance cooler with -40C delta T
  • Dry Argon-filled CCD chamber for efficient cooling
  • Exceptionally effective anti-blooming with minimal effect on linearity and no lost active area
  • Built-in very high speed USB 2.0 interface for sub-1 second downloads
  • Exceptionally high QE over an extremely wide spectral range from near UV to deep IR
  • Back focal length 17mm +/-1mm
  • Built-in autoguider interface and output - compatible with the optional dedicated external guide camera
  • Built-in dual serial ports for accessory control - directly drive filter wheels, GOTO 'scopes etc
  • Single USB cable control for all features - get rid of that dangerous cable tangle!
  • Only ONE computer needed to control all of the devices and functions
  • Very low power consumption. Less than 1.5 amps at 12v DC
  • Compact and lightweight - only 75mm in diameter x 70mm long - less than 300 grams load on the scope

Starlight Xpress Trius SX-9 Specifications

CCD type Sony ICX285AL Exview HAD CCD with ultra low dark current, extended IR response and vertical anti-blooming
CCD quality Grade 1 or better - No bad columns, no dead pixels, no more than 6 'hot' pixels (saturated in <10 seconds)
CCD Full resolution Pixel data Pixel size: 6.45uM x 6.45uM, Image format: 1392 x 1040 pixels
CCD Image area 8.98mm (Horizontal) x 6.7mm (Vertical)
Spectral Response QE max at 540nM (-65%), 50% roll-off at 400nM and 750nM
Readout Noise Less than 7 electrons RMS - typically only 5 electrons
Full-well capacity Greater than 23,000 e- (unbinned)
Anti-blooming Overload margin greater than 800x
Dark current Dark frame saturation time greater than 100 hours. Less than 0.02 electrons/second at + 10C ambient.
Data format 16 bits
System gain 0.35 electrons per ADU
Computer Interface Built-in USB 2.0 compatible interface with 3 port USB 2 hub for peripheral devices.
Image download time Typically 0.6 seconds at full resolution using USB 2.0
Power requirements 115VAC / 240VAC at 12VA, or 12VDC at 1.5 A max
Cooling system Regulated set-point cooling supply with two stage thermoelectric cooler to give a CCD temperature of better than -40C below ambient. Dry Argon fill.
Size 75 x 70mm ( 2.95 x 2.75") black anodized aluminium barrel with 42mm 'T2' thread at the CCD window end & input/output plugs at rear
Weight Approx. 300g. / 10.58oz
