Synology

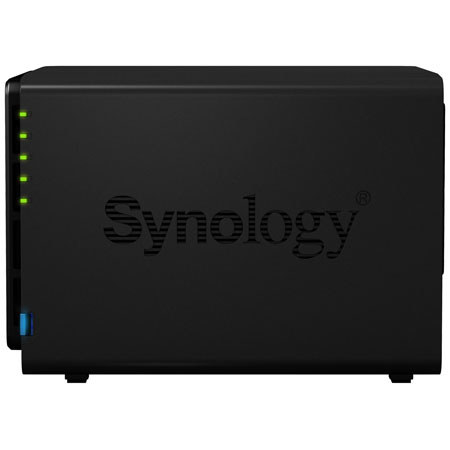

Synology DiskStation DS412+ High-Performance 4-Bay All-In-1 NAS Server, 2.13GHz Dual Core, 1GB DDR3 RAM, 16TB Storage Max Capacity, 4x 3.5" Internal Drive Bays

SKU: SYDS412 MFR: DS412+
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$599.00
Free Shipping
Qty:

Add to Wishlist

About the Synology DS412

The Synology DiskStation DS412+ High-Performance 4-Bay All-In-One NAS Server is specially engineered for small- to medium-sized businesses requiring a high-performance, easily-managed and full-featured NAS (Network Attached Storage) solution. The DiskStation centralizes data backups, safeguards vital assets and shares files across various platforms.

The DS412+ enables fast transfer speeds of approximately 205 MB/s read and 183 MB/s write when using a RAID 5 configuration in a Windows-based environment, with link aggregation enabled. It's equipped with 2 LAN with failover and link aggregation support, which, combined with a convenient hot-swappable hard drive design, ensures continual service uptime in the event that the drives require replacement or LAN fails unexpectedly. The DiskStation features blazing-fast USB 3.0 connectivity, offering transmission speeds of up to 5 Gbps.

CPU Passive Cooling Technology and System Fan Redundancy work to prevent overheating, in order to keep the DS412+ running optimally. This also allows the system to avoid reliance on a dedicated processor cooling fan and mitigate critical points of failure. When the system detects fan failures, the integrated redundancy mechanism spins up the functional fan, giving proper ventilation to the system, while supporting continued operations until your replacement fan is in position. Thus, system damage is minimized, while availability is maximized.

Synology's Hybrid RAID (SHR) automatically constructs an optimal RAID volume with data protection based on the hard drives installed, so you need not have hard drives of identical size. The SHR still provides a manual setup option for advanced users. Multiple volumes on RAID enable you to generate numerous volumes on a RAID structure, giving you a versatile and efficient way to manage your storage across all available drives. Should the need arise to expand your volumes, just allocate additional storage space on the UI and DSM will take care of the rest for you - without any service disruption.

The system runs on Synology DiskStation Manager (DSM), delivering comprehensive applications and features targeted at office and business workgroups. Web Station with PHP/MySQL support permits one Synology DS412+ to host as many as 30 websites, as well as multiple third party web applications, including Content Management, Customer Relationship Management and e-Commerce systems.

The integrated mail server transforms Synology DS412+ into a dedicated mail service provider, while the add-on package, Mail Station 2, offers a webmail interface for users to access e-mails stored on Synology DS412+. Synology Surveillance Station provides a centralized interface from which to control IP cameras deployed in your office or home, giving you the freedom to travel miles away and still watch live views, record events and capture snapshots with a computer or mobile device.

A slew of add-on packages enables the Synology DS412+ to replace multiple pieces of network hardware. The VPN Server provides a simple VPN solution that turns your Synology DS412+ into a VPN server, giving you a safe way to connect to a private LAN at a remote site. Directory Server lets Synology DS412+ host LDAP service with centralized access control, authentication and account management, further boosting your office management efficiency.

Enjoy Windows ADS and ACL support. ADS integration permits Synology DS412+ to quickly and easily fit in an existing business network environment without requiring a recreation of users' accounts on the Synology DS412+. The User Home feature reduces the amount of effort required for administrators to create a private shared folder for a large number of users. ACL support offers much finer-grained access control and efficient privilege settings, enabling IT staff to set up privileges to files and folders on DS412+ via their familiar Windows user interface. The privileges will be applied to all access entries, including AFP, FTP, File Station, NFS and WebDAV. The secure privilege gives IT staff peace of mind, eliminating worry about loopholes.

Additionally, the iSCSI support in DiskStation Manager (DSM) allows the DS412+ to offer seamless storage solutions for virtualization servers, including VMware, Citrix and Microsoft Hyper-V. This is a perfect alternative to a SAN business solution. Not only efficient but also affordable, the iSCSI enables SMB users to consolidate storage into data center arrays while giving hosts the appearance of locally attached disks.

Designed to make efficient use of resources, the DS412+ boasts a low operating power consumption of a mere 44 W. It offers dual 3.62 x 3.62" (92 x 92 mm) fans, plus smart airflow to keep the system running cool all the time. In addition, the noise-dampening design makes the device whisper-quiet compared to PC counterparts. As if this weren't enough, the DS412+ also supports Wake on LAN/WAN, multiple scheduled power on/off and hard drive hibernation to further minimize power consumption and operation costs. Like all Synology products, this NAS server is produced with RoHS-compliant parts, reflecting Synology's commitment to the preservation and protection of the environment.

Synology DS412 Includes

  • Synology DiskStation DS412+ High-Performance 4-Bay All-In-1 NAS Server
  • Installation Disk
  • Welcome Note
  • Assembling Kit
  • AC Power Adapter
  • AC Power Cord
  • RJ-45 LAN Cable
  • Synology 2 Years Warranty

Synology DS412 Features

  • High-Performance Data Throughput: DS412+ enables fast transfer speeds of approximately 205MB/s read and 183MB/s write when using a RAID 5 configuration in a Windows-based environment, with link aggregation enabled
  • Dependable and Reliable: CPU Passive Cooling Technology and System Fan Redundancy work to prevent overheating, in order to keep the DS412+ running optimally. This also allows the system to avoid reliance on a dedicated processor cooling fan and mitigate critical points of failure
  • Flexible Storage Management: Synology's Hybrid RAID (SHR) automatically constructs an optimal RAID volume with data protection based on the hard drives installed, so you need not have hard drives of identical size
  • Rich Business Applications: The system runs on Synology DiskStation Manager (DSM), delivering comprehensive applications and features targeted at office and business workgroups
  • Fit to Business Environment: Enjoy Windows ADS and ACL support. ADS integration permits Synology DS412+ to quickly and easily fit in an existing business network environment without requiring a recreation of users' accounts on the Synology DS412+
  • iSCSI and Virtualization Ready: Additionally, the iSCSI support in DiskStation Manager (DSM) allows the DS412+ to offer seamless storage solutions for virtualization servers, including VMware, Citrix and Microsoft Hyper-V. This is a perfect alternative to a SAN business solution
  • Backup Your System Settings: Synology's Backup & Restore not only enables you to easily back up data, but also gives you the ability to back up your system configurations in Control Panel - user group, shared folder, domain, file sharing and other services
  • Automatic Backup: It's not enough to just back up your system configurations once. Businesses are constantly evolving, as are the configurations - employee relocation, new projects and new teams
  • Customize Restoration: Whenever you need to back up, you need to restore. Synology's configuration backup permits businesses to restore system configurations at 3 levels
  • Antivirus for Your NAS: Available in Package Center, Antivirus Essential is a free application that safeguards your Synology DiskStation against all potential virus threats
  • Ready to Scan: Antivirus Essential boasts 3 scan modes: Full, custom and system scan. A Full Scan runs a server-wide check on system, data and files
  • Quarantine, Report & Update: When viruses are caught, they're automatically relocated to the quarantine zone to prevent them from affecting DiskStation. When you think the system is wrong about a certain quarantined file, you have the ability to restore it and add it to the white list
  • Complete LDAP Support: Synology offers comprehensive LDAP directory service support, enabling businesses to host their own LDAP server for centralization of network resources and accounts. Alternatively, join DiskStation to an existing LDAP domain as a client
  • Hosting Your Own LDAP Server: Centralized directory service management is safer and more efficient. Businesses can join their other network devices to LDAP domain and utilize DiskStation as command center to manage user accounts and offer authentication
  • Joining an LDAP Directory Service: You have the ability to join Synology DiskStation to your LDAP directory service, substantially increasing IT management productivity by minimizing the time needed to individually setup new accounts
  • Privilege Management: IT administrator can easily set up privileges for domain users and groups to DiskStation resources, including shared folders, space quota and applications. Plus, set storage quota for a group or user account to keep storage capacity in check
  • The All-In-One DiskStation: Getting DiskStation to connect to the Internet is no sweat. Synology DiskStation supports all types of connections and web essentials to suit your particular requirements
  • DDNS Service: With Synology's ezCloud DDNS service, you can register a domain name for your business. This way, you can connect to DiskStation with a simple URL of your own choosing, instead of IP address
  • By PPPoE: Does your business use PPPoE connection provided by your Internet Service Provider (ISP) Just connect DiskStation to DSL or cable modem and input account name and password to obtain connection directly to the web--without using a router
  • By Router: Router Configuration on DSM's Control Panel enables you to choose router you are using and set up your own port forwarding regulations. If router is UPnP capable, DSM can automatically discover it in network. From there, it's just a few clicks to get everything set up
  • By Wireless Dongle-1: Synology DiskStation supports a plethora of USB wireless dongles, including models from AboCom, AirLink, ALFA, Amped, ARGtek, Asus, AZIO, Belkin, Buffalo, CERIO, Cisco, CNet, ConnectLand, ConnectGear, Corega, D-Link, DrayTek, EDIMAX, ENCORE and EnGenius
  • By Wireless Dongle-2: Hawking, IBT, INTELLINET, IOGear, KEEBOX, LevelOne, LG, Loopcomm, MOMOPRICE, Netgear, Netis, Patriot, PCI, PremierTek, Proxim, Rosewill, Sapido, SMC, Sony, Sparklan, Tenda, TOTOLINK, TP-Link, TRENDNET, Zinwell, Zonet and Zyxel
  • Link Aggregation Support: The way to address 2 problems with Ethernet connections: Bandwidth limitations and lack of resilience. As bandwidth has non-linear scaling, the only way without jumping to next generation is to connect 2 Ethernet links via channel bonding
  • Auto DSM Update: DSM Update in Control Panel checks your DSM version and lets you update through the web. You can allow regular check-up for DSM update to function behind the screen
  • Smart System Migration: Helps minimize your panic level by providing smooth and no-sweat system migration. All you need do is remove the hard disks and insert them into an identical DiskStation, run initial setup process again and voila all your data and server settings will be recovered right away

Synology DS412 Specifications

CPU Dual Core 2.13GHz
Floating Point Yes
Memory DDR3 1.0 GB
Internal Drive Bays 4x 3.5" (8.9 cm) or 2.5" (6.4 cm) SATA II HDD/SSD bays (drives not included)
Storage Capacity 16 TB: 4x 4.0 TB
Hot Swappable Yes
Interface 2x USB 3.0 ports
1x USB 2.0 port
1x eSATA port
Read/Write Speed Approx. 205 MB/s read, 183 MB/s write
Transmission Speed Up to 5.0 Gbps (via USB 3.0)
LAN 2x Gigabit LAN
Link Aggregation Yes
Wake on LAN Wake on LAN / WAN 2
Wireless Support Yes
System Fan 2x 3.62 x 3.62" (92 x 92 mm)
Noise Level 19.4 dB(A)
Power Recovery Yes
Input Power 100-240 VAC, 50 / 60 Hz, single phase
Power Consumption 44 W (Access); 15W (HDD Hibernation)
Maximum Operating Altitude 10,000' (3048 m)
Certifications FCC Class B, CE Class B, BSMI Class B, RoHS Compliant
File Station Virtual Drive, Remote Folder
Mail Server Supported Protocols: POP3, SMTP, IMAP
FTP Server Bandwidth Control, Custom FTP Passive Port Range, Anonymous FTP, Transfer Log
Web Station Virtual Host (up to 30 websites); PHP / MySQL; 3rd-Party applications support
Print Server Max Printers: 2
Printing Protocols: LPR, CIFS, IPP, Apple AirPrint, Google Cloud Print, Multi Functional Print Server (Only PostScript USB printers supported in MAC environment)
iOS/Android Applications DS photo+, DS audio, DS cam, DS file, DS finder
Windows Phone Applications DS finder
Surveillance Station IP cameras (max.): 20 (1 free license)
Total frame rate: 200 fps WXGA: 1280 x 800 resolution
Directory Server LDAP Directory Server, Backup and Restore LDAP Database
VPN Server Maximum Connections: 20
VPN Method: PPTP, OpenVPN
DHCP Server Independent DHCP Server on Different Network Interfaces
Multiple Subnets Support
Address Reservation
Syslog Server SSL Connection
Log Rotation: 6 months, 1 year, 2 years, 3 years
Email Notification
Antivirus Full System Scan, Scheduled Scan, White List Customization, Virus Definition Auto Update
Time Backup Maximum Task Number: 8
Multiple File Versions Retained
Instant File Restoration
Personal Cloud & Remote Access Maximum User Accounts: 32
Retain Historical and Deleted File Versions
HiDrive Backup Backup DiskStation data to STRATO HiDrive online storage
Photo Station Supported Image Format: BMP, JPG (jpe, jpeg), GIF, RAW (arw, srf, sr2, dcr, k25, kdc, cr2, crw, nef, mrw, ptx, pef, raf, 3fr, erf, mef, mos, orf, rw2, dng, x3f)
Supported Video Format: 3G2, 3GP, ASF, AVI, DAT, DivX, FLV, M4V, MOV, MP4, MPEG, MPG, QT, WMV, XviD, RM, RMVB, VOB, RV30, RV40, AC3, AMR, WMA3
User can click and download the following video formats: RM, RMVB, VOB, RV30, RV40, AC3, AMR, WMA3, but not able to play it in Photo Station as compressed Flash video
Audio Station Supported Audio Format (USB Mode): AAC, FLAC, M4A, MP3, Ogg Vorbis, WMA, WMA VBR
Supported Audio Format (Streaming Mode): MP3, M4A, M4B
Supported Playlist Format: M3U, WPL
Internet Radio: SHOUTcast, Radioio
iTunes Server Supported Audio Format: MP3, M4A, M4P, WAV, AIF, The music in WAV and AIF format can be streamed, but the metadata (ex: title, album) may not be indexed on iTunes
Supported Video Format: M4V, MOV, MP4
Supported Playlist Format: M3U, WPL
DLNA/UPnP Media Server PS3/Xbox 360 Support
Supported Audio Format: AAC, AIFF, APE, FLAC, M4A, Apple Lossless, MP3, Ogg Vorbis, PCM, WAV, WMA, WMA VBR, WMA PRO, WMA Lossless
Supported Video Format: 3GP, 3G2, ASF, AVI, DAT, DivX, DVR-MS, ISO, M2T, M2TS, M4V, MKV, MP4, MPEG1, MPEG2, MPEG4, MTS, MOV, QT, SWF, TP, TRP, TS, VOB, WMV, XviD, RMVB (The actual playback capabilities may vary depending on the DLNA/UPnP client)Supported Image Format: BMP, JPG (jpe, jpeg), GIF, ICO, PNG, PSD, TIF (tiff), UFO
Download Station Supported Download Protocols: BT / HTTP / FTP / NZB / eMule
Maximum Concurrent Download Tasks: 80
Packages by 3rd Party HASP, phpMyAdmin, Webalizer, Logitech Media Server, WordPress, OpenERP
Networking Protocols CIFS, AFP, NFS, FTP, WebDAV, iSCSI, Telnet, SSH, SNMP, VPN (PPTP, OpenVPN)
File System EXT4, EXT3(External Disk Only), FAT (External Disk Only), NTFS (External Disk Only)
Storage Management-1 Max File System Size: 108TB
Max Internal Volumes: 512
Max iSCSI Targets: 32
Max iSCSI LUN: 256Supported RAID Type: Synology Hybrid RAID, Basic, JBOD, RAID 0, RAID 1, RAID 5, RAID 5+Spare, RAID 6, RAID 10RAID Migration: Basic to RAID 1, Basic to RAID 5, Basic to RAID 5+Spare, RAID 1 to RAID 5, RAID 1 to RAID 5+Spare, RAID 5 to RAID 5+Spare, RAID 5 to RAID 6
Storage Management-2 Volume Expansion with Larger HDDs: RAID 1, RAID 5, RAID 5+Spare, RAID 6
Volume Expansion by adding HDD: RAID 5, RAID 5+Spare, RAID 6
File Sharing Capability Max User Accounts: 2048
Max Groups: 256
Max Shared Folder: 256
Max Concurrent CIFS / AFP / FTP Connections: 512
Windows Access Control List (ACL) Yes
Windows ADS Domain Integration Domain Users login via Samba / AFP / FTP / File Station
Virtualization VMware vSphere 4, Microsoft Hyper-V, Citrix Ready
Backup Solutions Network Backup, Local Backup, Desktop Backup (Window: Synology Data Replicator 3, Mac: Apple Time Machine backup application), Shared Folder Sync - Max task number: 8, Configuration Backup
Security FTP over SSL / TLS, IP Auto-Block, Firewall, Encrypted Network Backup over Rsync, HTTPS Connection
Management Auto DSM Upgrade
Administrator Group
Push Notification - MSN/Skype/Mobile Devices
Email / SMS Notification
Customized User Quota
Syslog Support
DDNS Support
IPv6 Support
VLAN support
PPPoE
Hotspot
Resource Monitor
Connection Manager
UPS Management
Scheduled Power On / Off
Custom Management UI HTTP / HTTPS Ports
HDD Management HDD Hibernation, S.M.A.R.T., Dynamic Bad Sector Mapping
Utilities Synology Assistant, Synology Data Replicator
Supported Clients Windows XP and later
Mac OS X 10.5 and later
Ubuntu 9.04 and later
Supported Web Browsers Chrome, Firefox, Internet Explorer 8 or 9, Safari (Mac) 5
Operating Temperature 40 to 95deg. F (5.0 to 35deg. C)
Storage Temperature 15to 155deg. F (-10 to 70deg. C)
Relative Humidity 5 to 95% RH
Dimensions (HxWxD) 6.5x8.0x9.17" (16.5x20.3x23.3 cm)
Weight 4.5 lbs (2.03 kg)
