Speedotron 21203 DM604 - 3/CC Light System Specifications

  • <b>D604</b>

    Power Supply Specs

  • Power (Watt Seconds)

    225-600

  • Guide Number

    320
    at ISO 100 in feet, with M11 Light Unit, and 11.5" standard grid reflector.

  • Recycling Time

    2.3s

  • Power Range

    2

  • Flash Head Outlets

    4

  • Weight & Size

    9.1x5.9x5.9" 11 lbs.

  • <b>M90</b>

    Light Unit Specs

  • Maximum Power (Watt/Seconds)

    400

  • Modeling Lamp Wattage

    3 x 40W

  • Fan Cooled

    Yes

  • Reflector

    8.5" fixed, 60°

  • Cable length

    20'

  • Dimensions

    NA

  • Weight

    NA

  • <b>MW3R</b>

    Light Unit Specs

  • Maximum Power (Watt/Seconds)

    400

  • Modeling Lamp Wattage

    60W

  • Fan Cooled

    Yes

  • Reflector

    5.5" fixed, 105°

  • Cable length

    20'

  • Dimensions

    NA

  • Weight

    NA

13 Accessories for Speedotron DM604 - 3/CC Light System

  • All Accessories (13)
  • Lamps & Bulbs (1)
  • Collapsible Reflectors (1)
  • Cables & Adapters (2)
  • Flashes & Accessories (1)
  • Umbrellas (1)
  • Light Booms & Arms (1)
  • Reflectors (1)
  • Carts & Trolleys (1)
  • Studio/Still Life & Copy Equip (2)
  • Apple Boxes (1)
  • Power Pack Strobes (1)

About Speedotron 21203 DM604 - 3/CC Light System

The D604 LV produces 600Ws of power that can be split symmetrically or asymmetrically between its four power outlets. It has a half power option for additional light control, and a low voltage sync circuit compatible with newer electronic cameras. 9.1x5.9x5.9", 11 lbs.

The MW3R is a small, inexpensive secondary light source. It is designed to be used primarily as a hair light or background light. Its small size makes it ideal for hiding on a set. It has a fixed 5.5" reflector, 60W modeling lamp, and can handle 400Ws of power.

Brown Line Light Units are engineered with the same rigorous attention to real-world functionality as our power supplies. Light units are made of metal and are convection-cooled for decades of trouble-free use. All units come cabled with a 20' locking/quick release power supply connector (which is compatible with all older Brown Line Power Supplies), come with a flash tube (in your choice of either clear or color corrected), model lamp(s), reflector and 5/8" stand mount. Speedotron Light Units are backed by a 2-year warranty, with an optional Plus-3 Protection Plan available.

The affordable M90s are perfect for use as main or fill lights for portraiture. The M90 (400Ws maximum) is equipped with fixed 8.5" reflectors, and accept light control accessories such as snoots, diffusers, gel holders, barn doors and umbrellas for versatile light control. As an added feature for portriat work, the M90s come with thre e 40W modeling lamps instead of one bright one. This feature allows models to look into the light without squinting.

Brown Line Light Units are engineered with the same rigorous attention to real-world functionality as our power supplies. Light units are made of metal and are convection-cooled for decades of trouble-free use. All units come cabled with a 20' locking/quick release power supply connector (which is compatible with all older Brown Line Power Supplies), come with a flash tube (in your choice of either clear or color corrected), model lamp(s), reflector and 5/8" stand mount. Speedotron Light Units are backed by a 2-year warranty, with an optional Plus-3 Protection Plan available.

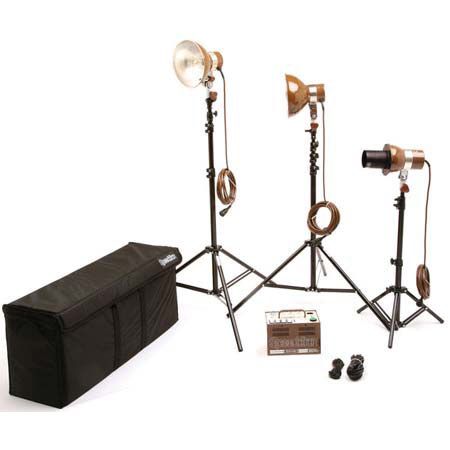

What's in the box:

  • (1) 21264
  • D604 LV power supply, 600Ws, (1)22207 MW3R/CC light unit, (2) 22213 M90/CC light unit, (2) 25562
  • 7.5' travel light stands, (1) 25555
  • 3.5' back light stand, (1) 25535
  • 4 section soft carrying case, (1) 24210
  • snoot, 3" opening for MW3R
