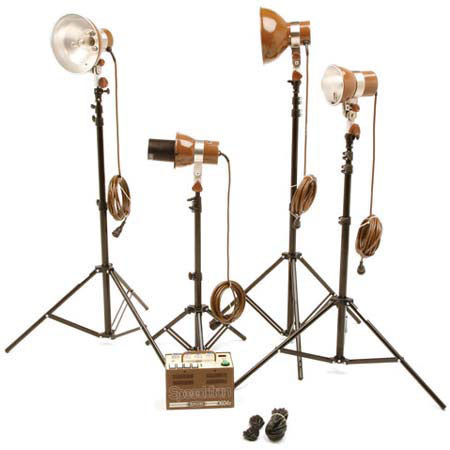

Speedotron DM604 LV - 4/CC Light System
Mfr. Part: 21204 SKU: SZ21204
enlarge image
|
|
 |
|
|
|
Item Includes
(1) 21264 - D604 LV power supply, 600Ws, (2) 22207 MW3R/CC light unit, (1) 22213 M90/CC light unit, (1) 22218 M90Q/CC light unit, (3) 25562 - 7.5' travel light stands, (1) 25555 - 3.5' back light stand, (1) 24210 - snoot, 3" opening for MW3R
|
Description
The D604 LV produces 600Ws of power that can be split symmetrically or asymmetrically between its four power outlets. It has a half power option for additional light control, and a low voltage sync circuit compatible with newer electronic cameras. 9.1x5.9x5.9", 11 lbs.
The MW3R is a small, inexpensive secondary light source. It is designed to be used primarily as a hair light or background light. Its small size makes it ideal for hiding on a set. It has a fixed 5.5" reflector, 60W modeling lamp, and can handle 400Ws of power.
Brown Line Light Units are engineered with the same rigorous attention to real-world functionality as our power supplies. Light units are made of metal and are convection-cooled for decades of trouble-free use. All units come cabled with a 20' locking/quick release power supply connector (which is compatible with all older Brown Line Power Supplies), come with a flash tube (in your choice of either clear or color corrected), model lamp(s), reflector and 5/8" stand mount. Speedotron Light Units are backed by a 2-year warranty, with an optional Plus-3 Protection Plan available.
The affordable M90s are perfect for use as main or fill lights for portraiture. The M90 (400Ws maximum) and M90Q (1200Ws maximum) are equipped with fixed 8.5" reflectors, and accept light control accessories such as snoots, diffusers, gel holders, barn doors and umbrellas for versatile light control. As an added feature for portriat work, the M90s come with three 40W modeling lamps instead of one bright one. This feature allows models to look into the light without squinting.
Brown Line Light Units are engineered with the same rigorous attention to real-world functionality as our power supplies. Light units are made of metal and are convection-cooled for decades of trouble-free use. All units come cabled with a 20' locking/quick release power supply connector (which is compatible with all older Brown Line Power Supplies), come with a flash tube (in your choice of either clear or color corrected), model lamp(s), reflector and 5/8" stand mount. Speedotron Light Units are backed by a 2-year warranty, with an optional Plus-3 Protection Plan available. |
Specifications
| D604 | Power Supply Specs |
| Power (Watt Seconds) | 225-600 |
| Guide Number | 320
at ISO 100 in feet, with M11 Light Unit, and 11.5" standard grid reflector. |
| Recycling Time | 2.3s |
| Power Range | 2 |
| Flash Head Outlets | 4 |
| Weight & Size | 9.1x5.9x5.9" 11 lbs. |
| M90 | Light Unit Specs |
| Maximum Power (Watt/Seconds) | 400 |
| Modeling Lamp Wattage | 3 x 40W |
| Fan Cooled | Yes |
| Reflector | 8.5" fixed, 60° |
| Cable length | 20' |
| Dimensions | NA |
| Weight | NA |
| MW3R | Light Unit Specs |
| Maximum Power (Watt/Seconds) | 400 |
| Modeling Lamp Wattage | 60W |
| Fan Cooled | Yes |
| Reflector | 5.5" fixed, 105° |
| Cable length | 20' |
| Dimensions | NA |
| Weight | NA |
| | |
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
|
|
