Teradek

Teradek Bolt Pro Wireless HD-SDI Video Transmitter and 4 Receiver Set

SKU: TEBPPTX4RX MFR: BOLT-PRO-PLUS TX +4R
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$6,490.00
Free Shipping
Qty:

Add to Wishlist

About the Teradek Wireless HD-SDI

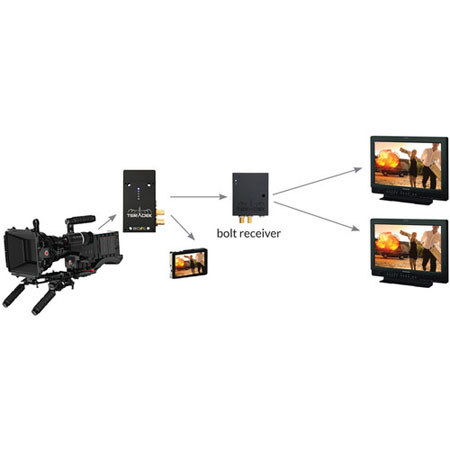

The Teradek Bolt Pro Wireless HD-SDI Video Transmitter and 4 Receiver Set transmits zero delay uncompressed HD video at full 1080p60 4:2:2 fidelity. Bolt Pro PLUS has a looping 3G-SDI input on the transmitter, dual 3G-SDI outputs on the receiver and can transmit to multiple receivers simultaneously at up to 300ft away.

The transmitter is housed in a rugged machined T6061 aluminum chassis with several 1/4" threaded mounting holes for easy attachment to your camera. The receiver is made of durable ABS plastic that can easily mount to your monitor or sit by your video switcher.

Teradek Wireless HD-SDI Includes

  • Teradek Bolt Pro Wireless HD-SDI Video Transmitter
  • 4 x Receiver
  • Teradek Warranty

Teradek Wireless HD-SDI Features

  • 1 Bolt Pro PLUS TX to Multiple RX: One of the best features of Bolt Pro PLUS is its ability to transmit full 1080p60 HD video to multiple receivers (up to 256) simultaneously
  • Connectivity: Bolt Pro PLUS transmits uncompressed video using WSDI Pro, which provides a wireless range of up to 300ft and can coexist with other wireless equipment by dynamically adjusting the frequency bands used in real time
  • Rugged and Low Power: Bolt Pro PLUS transmitters are housed in a 7oz milled aluminum chassis with six 1/4"-20 mounting holes. The receiver is enclosed in a durable ABS plastic shell. Both units require approximately 3.0W of power and have an operating temperature of 0-50 degrees Celsius
  • Bolt Pro PLUS Meets Cube: Since Bolt Pro PLUS's receiver has dual 3G-SDI outputs, Teradek Cube encoders can connect with it and transmit a compressed video feed over Wi-Fi for live Internet streaming, H.264 proxy recording, or wireless monitoring on iOS devices
  • Transmitter: Milled aluminum chassis
  • Transmitter: Built in rechargeable battery for up to 100 minutes of run time or maintaining the video link during external battery exchanges
  • Transmitter: Chargeable over micro USB port
  • Transmitter: Hot-shoe mount
  • Transmitter: Can coexist with Wi-Fi and 5GHz cordless phones
  • Receiver: Lemo DC Input with a voltage input of 6-28V
  • Receiver: IR remote to switch video sources

Teradek Wireless HD-SDI Specifications

Transmitter: Input 3G-SDI
Transmitter: Output Looping 3G-SDI
Transmitter: Resolutions Upto 1080P60
Transmitter: Supports Up to 256 receivers
Transmitter: Low power 3.0W
Transmitter: Multiple mounting options With 1/4"-20 holes
Transmitter: Input range 5-18V
Transmitter: Temperature 0-50 deg C
Transmitter: Wireless range Upto 300 ft
Transmitter: Encryption AES128
Receiver: Outputs Dual 3G-SDI
Receiver: Resolutions Upto 1080P60
Receiver: Low power 4.5W
Receiver: Through-hole 1/4"-20
Dimensions Transmitter: 58x110mm / 2.28x4.33"
Receiver: 75x110mm / 2.9x4.33"
Weight Transmitter: Less than 8 oz/ 226.79 oz
