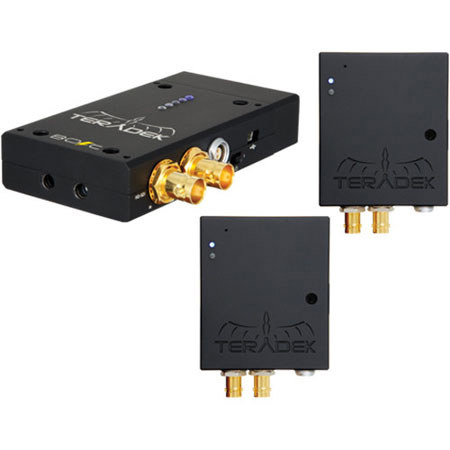

Teradek Bolt Pro Wireless 1080p60 SDI Monitoring Transmitter & 2 Receivers Set

SKU: TEBPTX2RX MFR: BOLT-PRO TX+2RX
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$3,590.00
Free Shipping
Qty:

Add to Wishlist

About this item

The Teradek Bolt Pro Wireless 1080p60 SDI Monitoring Transmitter & 2 Receivers Set wirelessly transmits an uncompressed HD video signal in up to 1080p60 4:2:2 as far as 300 ft with zero delay. The receivers each feature two 3G-SDI outputs for dual monitoring. One of these two can be used to pass the video signal to an optional Teradek Cube Encoder, which will stream the signal even further on by Wi-Fi or Ethernet, although only in up to 1080p30. A third receiver and even more than three receivers, can be set up to receive from one transmitter, multiplying thus the outputs. And the transmitter itself has a looping SDI output for local monitoring.

The Bolt Pro transmitter differs from just a Bolt transmitter in having a looping SDI output, an internal battery and the capacity to connect to more than one receiver.

What's Included With This Item

  • Teradek Bolt Pro Wireless 1080p60 SDI Monitoring Transmitter
  • 2 x Receivers
  • 3 x Power Supply
  • P-Tap to 2-Pin Lemo Cable
  • Teradek Warranty

Key Features

  • Wireless 1080p60 4:2:2: The Bolt Pro Transmitter and 2-Receiver set can wirelessly transmit 1080p60 4:2:2 up to 300 ft with zero delay
  • 1 TX to Multiple RX: A third and even more than three receivers can be added into the setup. One Bolt Pro transmitter can transmit full 1080p60 HD video to multiple receivers simultaneously
  • WSDI Pro Connectivity: Bolt transmits uncompressed video using WSDI Pro, which provides a wireless range of up to 300 ft and can coexist with other wireless equipment by dynamically adjusting the frequency bands used in real time
  • Low Power / Internal Battery: All three units require approximately 3W of power. For long periods of use, each Bolt features a Lemo DC input that external power sources, like V-mount or Gold-mount batteries, can be connected into
  • Rugged Design: The transmitter has a milled aluminum body and the receivers have ABS plastic bodies. Both the transmitter and receivers have 1/4" mounting threads and can be attached right onto or next to the equipment you'll be using them with

Technical Specs

Transmitter: Connections 1x SD/HD/3G-SDI input
1x looping 3G-SDI output
Transmitter: Resolutions Up to 1080p60
Transmitter: Wireless Range Up to 300 ft (91 m)
Transmitter: Power Low power: 3.0W
Lemo 5-18 V DC input
Rechargeable lithium-ion battery with 70 minute run time
Chargeable over mini USB port or DC input
Transmitter: Encryption AES128
Transmitter: Chassis Milled aluminum
Transmitter: Mount Type 1/4"-20 threads
Transmitter: Operating Temperature 32 to 122deg.F (0 to 50deg.C)
Receiver: Connections 2x SD/HD/3G-SDI outputs
Receiver: Resolutions Up to 1080p60
Receiver: Chassis Durable ABS plastic
Receiver: Mount Type 1/4"-20 through-hole
Dimensions Transmitter: 2.3x4.3" (5.8x11 cm)
Receiver: 2.95x4.3" (7.5x11 cm)
Weight Transmitter: 0.4 lbs (0.18 kg)
