Teradek

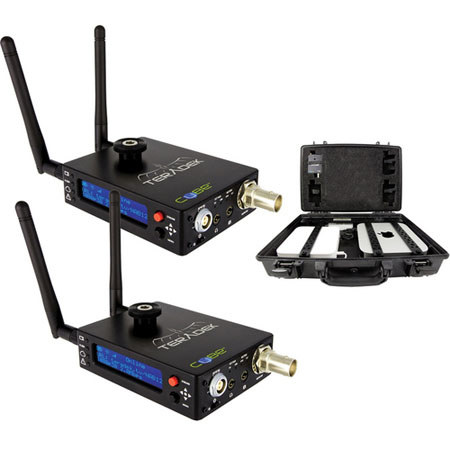

Teradek Case, Video Assist System in a Box with Two Cube-155 Transmitters

SKU: TECASE2155 MFR: CASE-2155
Please note! This is a Special Order Item and is Non Cancelable and Non Returnable.
We Charge you when you place your order. Approximate arrival at Adorama 1 - 2 Weeks from date of order.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$6,090.00
Free Shipping
Qty:
Add to Wishlist

About the Teradek Case

The combination of small size, low power and versatility in a single, well-designed system makes for a powerful and elegant wireless VTR system. The Teradek Cube is pre-configured to automatically begin recording a proxy file the moment record is pressed on the camera. An instant daily is created when recording is started in real-time on the Mac Mini server in the ubiquitous .MOV or .MP4 formats. The recorded file will be identical in name, start and stop times and time code as the original file still on the camera's storage. It will also be available for immediate review on any LivePlay equipped iPad on set. LivePlay users are able to add comments with a simple touch of a button in completely customizable data fields with managed user privileges and reporting.

The Case takes the power and performance of Teradek's Cube to new levels of convenience. This turnkey video-assist system provides everything you need for wireless proxy recording, remote analysis over the Internet and video monitoring on iPad and field monitors. Cube alone can transmit 1080p HD video up to 300ft, but with Case the range is increased to 1000ft. Case elegantly packs all of its components into an unbreakable waterproof Pelican case with vibration dampened shock mounts holding custom aircraft grade aluminum mounting hardware and cheeseplates.

The Teradek Cube 155 HD-SDI Two Encoders with Wi-Fi are the wireless camera-top video and embedded audio encoder. It connects to a camera by SDI and streams proxy files/dailies in H.264 to a decoder or website. You can stream by dual-band Wi-Fi wherever a network is available, by Ethernet via an optional router, or by optional 3G/4G modem connection otherwise. You can also store the files to a MicroSD card as the Cube features a MicroSD slot with support for 32GB cards.

Teradek Case Includes

  • Teradek Case Video Assist System in a Box
  • 2 x Cube-155 Transmitters
  • Teradek Warranty

Teradek Case Features

  • Supports up to 20 iPads
  • Proxy Recording Ready
  • Built-in Streaming Server
  • 3/8" Mount with Included 8' C-Stand
  • Water and Dust Resistant when closed
  • Shock Resistant internal mounting
  • Includes compartments with secure mounting for 4 Cubes and 1 iPad
  • Cube-155: Streams proxy files in H.264 to a decoder or website
  • Cube-155: Streams by Wi-Fi, by Ethernet, or by optional 3G/4G modem
  • Cube-155: Stores files to an optional MicroSD card of up to 32GB in capacity
  • Cube-155: Attaches to a camera's hot-shoe or onto a cage/rig by a 1/4"-20 screw
  • Cube-155: Powered by a two hour internal battery or by an included AC power adapter
  • Cube-155: An OLED screen indicates battery life, online status and the URL being streamed to

Teradek Case Specifications

Interfaces Dual Band Wi-Fi: Internal 802.11a/b/g/n
10/100/1000base-T Ethernet (RJ-45 Connector)
Power Input 100-240Vac, 50-60Hz. IEC-320
Nominal Power Consumption 110W
Temperature 10deg. to +35deg. C
Humidity 5% to 95% non condensing
Cube 155: Connections 1x HD/SD-SDI input
1x RJ45 port
1x 1/8" line/mic input with adjustable gain
1x headphone jack with adjustable volume
1x micro USB slot
1x 2-pin Lemo power input
Cube 155: File Transfer Method Dual-band 2.4/5.8G 802.11 a/b/g/n MiMO Wi-Fi wherever accessible
Ethernet 10/100BASE-T
Or by optional 3G/4G modem connection
Cube 155: Supported Resolutions 1080i 50/59.94/60
1080p 23.98/24/25/30
720p 23.98/24/50/59.94/60
576p
480p
Cube 155: Video Codec Compression algorithm: Baseline, Main and High Profile H.264
Main and Baseline profiles
Bit Rate: 250 Kbps to 10 Mbps
Built in video scaler and deinterlacer
Cube 155: Video Streaming Support Network protocols: TCP/IP, UDP, HTTP, DHCP, NTP, SSL, IGMP
Transport protocols: RTP, RTSP, RTP over HTTP, optional MPEG-TS
RTMP (Adobe Flash streaming)
HTTP live steaming
Point-to-point (TCP or UDP), Multiple Unicast (UDP), or optional Multicast (UDP+IGMP)
Cube 155: Audio Compression AAC-LC, MPEG Layer 2
Cube 155: Memory MicroSD card slot with support for 32GB cards
Cube 155: Mounting Cold-shoe for mounting onto hot-shoe
1/4"-20 mounting screw for attachment onto a cage/rig
Cube 155: Power Consumption 3W
(While charging): up to 10W
Cube 155: Auxiliary Power Input 6-28V DC
Cube 155: Power Internal battery that lasts up to two hours and is charged via micro USB slot
Included AC power supply
Or by optional 2-pin Lemo batteries:
Teradek/Swit Canon BP-945
Teradek/Swit Panasonic D54
Teradek/Swit Panasonic VW-VGB6
Dimensions Cube 155: 2.5x3.5x9" / 6.35x8.89x22.86cm
Case: 17.75x11.4x4.2" / 45x28.95x10.66cm
Weight Cube 155: 8oz / 226g
Case: 15lbs / 6.8kg
