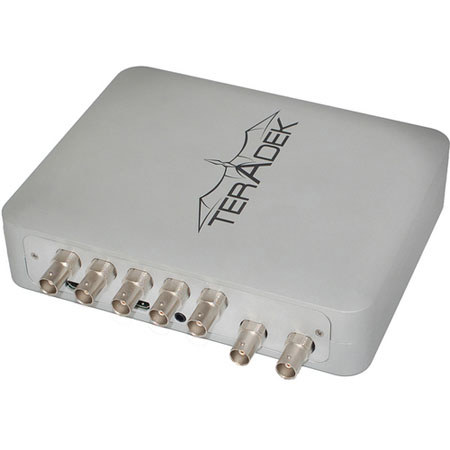

Teradek Chimera HD H.264 Network Video Encoder, Supports 3G-SDI/HD-SDI/SD-SDI Formats
We Charge you when you place your order. Approximate arrival at Adorama 1 - 2 Weeks from date of order.
The Teradek CHM-10 Chimera HD H.264 Network Video Encoder can encode video signals at a resolution of up to 1920 x 1080. It accepts input signal formats such as 1080p60 HDMI, 3 wire component RGB and 5-wire component RGB+HV signals and also supports 3G-SDI / HD-SDI / SD-SDI (serial digital interface) formats. In addition, the encoder also decodes 1080p or up to 4 channels of SD H.264 or MPEG2 video. Equipped with H.264 Level 4.1 compression, the CHM-10 Chimera offers high picture quality with 2:1 reduced bit rates. Offering Blu-ray quality 1080p HD video over IP, the encoder unit provides low latency and efficient network bandwidth usage. Enabling the broadcasters to use full D1 or HD instead of half D1, the video encoder offers high quality display properties without exceeding the bandwidth allocation.
The CHM-10 Chimera encoder can also output H.264 stream over DVB-ASI using MPEG-TS for maximum compatibility with existing professional broadcasting equipment. Featuring HDMI/DVI output, the unit displays 1080p HD (high definition) video. Built-in scaler and compositing engine allow any output resolution video signal to be displayed on any output. With Gigabit Ethernet / USB 2.0 and an advanced web server, the CHM-10 Chimera encoder automatically pairs with other Teradek devices offering easy installation. It features an embedded operating system and a milled aircraft grade 6061-T6 enclosure housing. The device has low power consumption (7.5W) and can be powered using a DC power source or PoE (Power over Ethernet). In addition, it can be used in applications such as mobile news, sports, religious broadcasting, defense and digital signage systems.
|Video Inputs||1 ch. HDMI/DVI up to 1080p60/50
1 ch. Component YPbPr or RGB Input with SoG, HV, H+V
1 ch. ASI, 3G-SDI, HD-SDI, SDI
|Video Outputs||1 ch. HDMI/DVI 1080i60/50
1 ch. DVB-ASI MPEG-TS encapsulated H.264
|Audio||Channels: 7.1 HDMI, 7.1 3G-SDI, Stereo Analog
Connector: HDMI, SDI or 3.5mm Stereo
Audio Outputs: 71. HDMI, 3.5mm stereo
|Codec||Compression Algorithm: High Profile H.264 (L4.1), MJPEG, MPEG-TS
Bit Rate: 64 Kbps to 20 Mbps
Resolution: HD (1920 x 1080), 720p, SXGA, XGA, SVGA, VGA, Full D1, CIF, QCIF
Audio Compression: AAC, MP2
Decode Algorithm: H.264 High Profile (L4.1), MPEG2, MJPEG, MPEG-TS
No. Channels Decoded: 1 HD or 4 D1 or 6 CIF
|Network||Ethernet: 10/100/1000 Base-T
Ethernet Protocols: TCP/IP, UDP, HTTP, DHCP, NTP, RTP, RTSP, RTP/RTSP over HTTP, SSL, MPEG-TS, IGMP, Multicast, MPEG-TS over HTTP-Live
Advanced built-in web server, with feature-rich WebUI
Point to Point (TCP or UDP), Multiple Unicast (UDP), or Multicast (UDP+IGMP)
|Interfaces||USB 2.0: 2 Powered Ports
RS485, RS422, RS232: 1 ea.
Alarm Inputs: 4
Discreet Outputs: 2
PTZ & POS Integration
|Nominal Power Consumption||6W|
|Auxiliary Power Input||9-30V DC|
|Temperature||0 to +50deg. C|
|Humidity||95% non condensing|
|Dimensions (W x D x H)||7 x 5.75 x 1.6875" / 17.7 x 14.6 x 4.286 cm|
|Weight||1 lbs / 0.45 kg|
