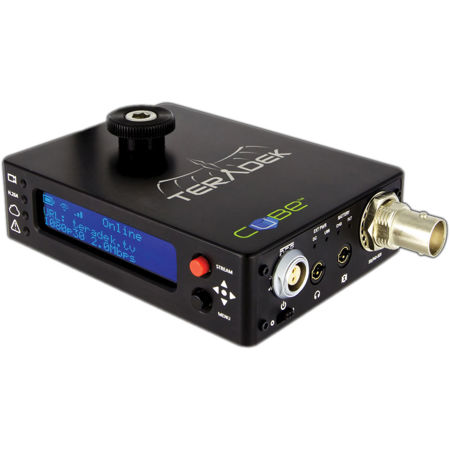

Teradek Cube-105 HD-SDI Encoder, 10/100BASE-T Ethernet, microSD Storage, USB 2.0

SKU: TECUBE105 MFR: 10-0105
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$1,690.00 $67 per week
Free Expedited Shipping
Qty:
Add to Wishlist In Stock

About the Teradek Cube-105

The Teradek Cube-105 HD-SDI Encoder is the same as Cube-155 except that the 155 additionally features Wi-Fi and an internal battery. If you don't require these, then you can take advantage of the 105's more affordable price.

The 105 connects to a camera by SDI, encodes video and embedded audio and streams these in H.264, in up to 1080p/30, to an optional decoder or to a designated URL, streaming by Ethernet or optionally by a 3G/4G USB modem, which connects into the 105's USB port. You can at the same time also store proxy files to a MicroSD card or stream them to a computer over a network. (You would need to first enable a feature called "Proxy Recording" for free from a Teradek forum.)

Cube can be used camera-top, attaching right into a camera's hot-shoe, or you can mount it onto a rig by an included 1/4" mounting screw. For power, you can use the included AC adapter or you can connect a compatible 2-pin Lemo battery, namely, Teradek's Canon BP-945, Panasonic D54 and Panasonic VW-VGB6. These batteries are sold separately.

Teradek Cube-105 Includes

  • Teradek Cube-105 HD-SDI Encoder
  • AC Power Adapter
  • SDI Cable
  • Ethernet Cable
  • 1/4"-20 Mounting Screw
  • Teradek Pouch
  • Teradek 2 Years Limited Warranty

Teradek Cube-105 Features

  • Streams video and embedded audio in up to 1080p/30 in H.264 to an optional decoder or designated URL
  • Can simultaneously also save or stream proxy files
  • Streams by Ethernet or by an optional 3G/4G USB modem
  • Stores to an optional 32GB MicroSD card
  • Attaches to a camera's hot-shoe or onto a rig by a 1/4"-20 screw

Teradek Cube-105 Specifications

Video Input 1x HD/SD-SDI
Supported Resolutions 1080i 50/59.94/60
1080p 23.98/24/25/30
1080PsF 23.98/24/25
720p 50/59.94/60
576i
480i
Video Codec Compression algorithm: Baseline, Main and High Profile H.264
Main and Baseline profiles
Bit rate: 250 Kbps to 10 Mbps
Built-in video scaler and deinterlacer
Video Streaming Support Network Protocols: TCP/IP, UDP, HTTP, DHCP, NTP, SSL, IGMP
RTMP (Adobe Flash streaming)
HTTP live steaming
Optional:
Transport protocols: RTP, RTSP, RTP over HTTP, MPEG-TS
Point to Point (TCP or UDP), Multiple Unicast (UDP), or Multicast (UDP+IGMP)
Audio Audio compression: AAC-LC, MPEG layer 2
Embedded audio input
Analog line or mic in, adjustable gain
Headphone output, adjustable volume
Interfaces Feature-rich WebUI for configuration and control
OLED LCD screen with joystick navigation buttons
On/Off and Reset Switch
microSD
Powered USB 2.0 host port
Network Ethernet: 10/100BASE-T
USB Modem support (optional)
Power 2-pin LEMO input
USB charging
Nominal power consumption: 3 W
Nominal power consumption while charging: up to 10 W
Auxiliary power input: 6-28 V DC
Dimensions 2.5x3.5x0.9" (6.35x8.9x2.2 cm)
Weight 0.5 lbs (0.22 kg)
