Teradek

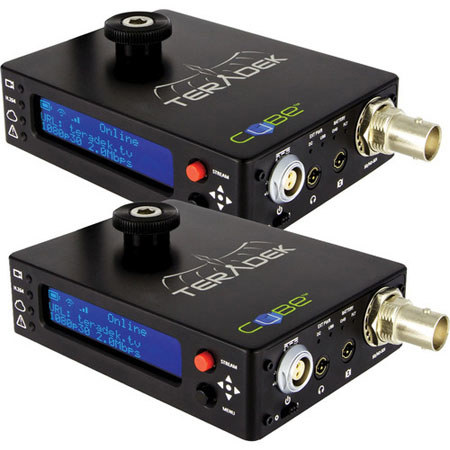

Teradek Cube 105/305 HD-SDI Encoder/Decoder Pair, Powered USB 2.0 Host Port

SKU: TECUBE105305 MFR: CUBE-105/305
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$2,950.00
Free Shipping
Qty:
Add to Wishlist

About this item

A pair of Cube encoders and decoders is called a Cubelet. Cubelet's are capable of very low latency (-3-4 frames) and provide an easy to use point-to-point streaming solution. Both units are paired and will automatically connect with one another over an ad-hoc or Wi-Fi network.

The Cube 105/305 bundle is Teradek's most versatile HD-SDI encoder/decoder pair and features a hardened aluminum chassis, low power consumption and a variety of network connectivity options. This bundle provides an affordable high definition end-to-end streaming video solution that eliminates the need for PC-based decoding. The 105/305 bundle is particularly useful for filmmaking, ENG and Pro AV applications.

The Cube 105 includes all of the same great features of the original Cube such as a compact aluminum chassis, comprehensive transport protocol support like RTP/RTSP/RTMP/MPEG-TS and an HD-SDI input.

Key Features

  • OLED: Cube's new OLED enables users to rapidly change and review the settings of their unit in addition to providing real-time feedback for filenames, recording status and wireless connectivity. No longer are computers or iPads needed for configuration; every feature is a simple click away
  • Li-ION Battery: Cube's built-in Li-ION battery will give users up to 2 hours of runtime, which allows for seamless battery swapping or quick broadcasts. The battery can also be charged from an AC adapter or even a suitable external battery such as an Anton Bauer
  • MIMO Access Point: The new MIMO access point feature greatly improves wireless performance and enables special features such as wireless camera control for devices without a WiFi capability built in and ensures improved connectivity from an iPad or Android tablets
  • Audio Output: Cube now comes with a headphone output for immediate audio monitoring
  • Micro USB: Cube's micro USB port will charge the new internal battery
  • CDN Integration: The new Cube also supports dozens of Content Delivery Networks (CDNs), including Ustream, Justin.tv, Livestream, YouTube Live and many others

Technical Specs

Video Inputs HD-SDI, SD-SDI: BNC
Supported Resolutions 1080i 50/59.94/60
1080p 23.98/24/25/30
1080PsF 23.98/24/25
720p 50/59.94/60
576i
480i
Video Codec Compression Algorithm: Baseline, Main and High Profile H.264
Main and Baseline profiles
Bit Rate: 250 Kbps to 10 Mbps
Built in Video Scaler and Deinterlacer
Video Streaming Support Network Protocols: TCP/IP, UDP, HTTP, DHCP, NTP, SSL, IGMP
Transport Protocols: RTP, RTSP, RTP over HTTP, MPEG-TS
RTMP (Adobe Flash Streaming)
HTTP Live Steaming
Point to Point (TCP or UDP), Multiple Unicast (UDP), or Multicast (UDP+IGMP)
Audio Audio Compression: AAC-LC, MPEG Layer 2
Embedded Audio Input
Analog Line or Mic in, adjustable gain
Headphone output, adjustable volume
Interfaces Feature-rich WebUI for configuration and control
OLED LCD Display with joystick
Navigation buttons
On/Off and Reset Switch
Micro SD
Powered USB 2.0 host port
Network Ethernet: 10/100BASE-T
WiFi: Dual Band 802.11 a/b/g/n MiMO
USB Modem support
Power 2 Pin Lemo Power input
USB Charging
Nominal Power Consumption: 3W
Nominal Power Consumption while Charging: up to 10W
Auxiliary Power Input: 6-28V DC
Dimensions (WxDxH) 2.5x3.5x0.9" / 6.35x8.89x2.28 cm
Weight 8 oz / 226.7 g
