Teradek Cube-155 HD-SDI Encoder with Built-in Dual Band Wi-Fi & MiMO Access Point

SKU: TECUBE155 MFR: 10-0155

Our Price

Buy more and save
Quantity Discount

The quantity discount will be reflected in your shopping cart

Availability: In Stock & Ready to Ship

Free Shipping

See all shipping options

Teradek Cube-155: Picture 1 regular $1,990.00

About Teradek Cube-155

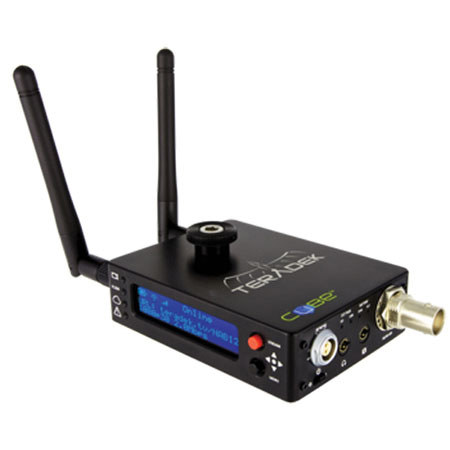

The Teradek Cube-155 HD-SDI Encoder with Wi-Fi is a wireless camera-top video and embedded audio encoder. It connects to a camera by SDI and streams proxy files/dailies in H.264 to a decoder or website. You can stream by dual-band Wi-Fi wherever a network is available, by Ethernet via an optional router, or by optional 3G/4G modem connection otherwise. You can also store the files to a MicroSD card as the Cube features a MicroSD slot with support for 32 GB cards.

For mounting, the Cube attaches either into a camera's hot-shoe or onto a cage/rig by an included 1/4"-20 mounting screw. Aside from the SDI input, connections consist of an Ethernet port, a 1/8" line/mic input and a headphone jack. A micro USB slot is available for charging and configuring.

Power is by an internal lithium-ion battery that lasts up to two hours or by an included AC power adapter. An OLED LCD screen indicates what the remaining battery life is and also displays online status and the URL being streamed to. Optionally, any of the following three 2-pin Lemo batteries can be used for power: the Teradek/Swit Canon BP-945, Teradek/Swit Panasonic D54 and Teradek/Swit Panasonic VW-VGB6.

Teradek Cube-155 Features

  • OLED: Cube's new OLED enables users to rapidly change and review the settings of their unit in addition to providing real-time feedback for filenames, recording status and wireless connectivity. No longer are computers or iPads needed for configuration; every feature is a simple click away
  • Li-ION Battery: The built-in Li-ION battery will give users up to 2 hours of runtime, which allows for seamless battery swapping or quick broadcasts. The battery can also be charged from an AC adapter or even a suitable external battery such as an Anton Bauer
  • MIMO Access Point: The MiMO access point feature greatly improves wireless performance and enables special features such as wireless camera control for devices without a Wi-Fi capability built in and ensures improved connectivity from an iPad or Android tablets
  • Audio Output: Cube now comes with a headphone output for immediate audio monitoring
  • Micro USB: Cube's micro USB port will charge the new internal battery
  • CDN Integration: The new Cube also supports dozens of Content Delivery Networks (CDNs), including UStream, Justin.tv, Livestream, Youtube Live and many others
