Teradek

Teradek Cube-205 HD-SDI Encoder, HDMI Video Input, 10/100BASE-T Ethernet, USB 2.0

SKU: TECUBE205 MFR: 10-0205
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$1,190.00 $47 per week
Free Expedited Shipping
Qty:
Add to Wishlist In Stock

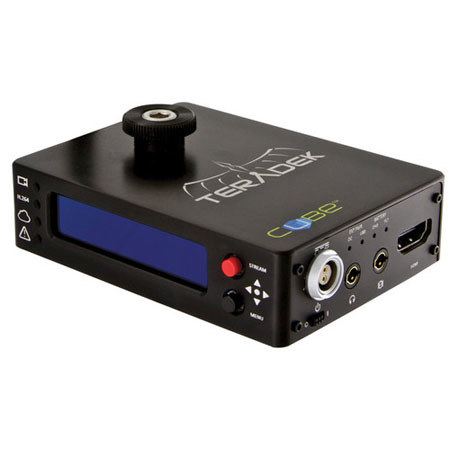

About the Teradek Cube-205

The Teradek Cube-205 HD-SDI Encoder connects to a camera by HDMI. The unit encodes video and embedded audio and streams these in H.264, in up to 1080p/30, to an optional decoder or to a designated URL, streaming by Ethernet or optionally by a 3G/4G USB modem, which connects into the 205's USB port. You can at the same time also store proxy files to a MicroSD card or stream them to a computer over a network. (You would need to first enable a feature called "Proxy Recording" for free from a Teradek forum).

An OLED screen allows you to change and review settings of the unit, also offering feedback for filenames and recording status. Each feature of the unit is easily controllable from here, rather than configuration through a computer or tablet. A headphone output allows for immediate audio monitoring. There is also an internal battery that recharges via micro USB. Additionally, the Cube supports several Content Delivery Networks (CDNs) including UStream, Justin.tv, Livestream, YouTube Live and more.

The Cube can be used camera-top, attaching right into your camera's hot-shoe, or you can mount it onto a rig by an included 1/4" mounting screw. For power, you can use the included AC adapter or you can connect a compatible 2-pin Lemo battery, Teradek's Canon BP-945, Panasonic D54 and Panasonic VW-VGB6. These batteries are sold separately.

Teradek Cube-205 Features

  • Streams video and embedded audio in up to 1080p/30 in H.264 to an optional decoder or designated URL
  • Can simultaneously also save or stream proxy files
  • Streams by Ethernet or by an optional 3G/4G USB modem
  • Stores to an optional 32GB MicroSD card
  • Headphone output allows for immediate audio monitoring
  • Micro USB port charges the internal battery
  • Supports CDNs like UStream, Justin.tv, Livestream, YouTube Live and more
  • Attaches to a camera's hot-shoe or onto a rig by a 1/4"-20 screw
  • OLED screen indicates battery life, online status and the URL being streamed to

Teradek Cube-205 Specifications

Display OLED
Video Input 1x HD/SD-SDI
Supported Resolutions 1080i 50/59.94/60
1080p 23.98/24/25/30
1080PsF 23.98/24/25
720p 50/59.94/60
576i
480i
Video Codec Compression algorithm: Baseline, Main and High Profile H.264
Main and Baseline profiles
Bit rate: 250 Kbps to 10 Mbps
Built-in video scaler and deinterlacer
Video Streaming Support Network Protocols: TCP/IP, UDP, HTTP, DHCP, NTP, SSL, IGMP
RTMP (Adobe Flash streaming)
HTTP live streaming
Optional:
Transport protocols: RTP, RTSP, RTP over HTTP, MPEG-TS
Point to Point (TCP or UDP), Multiple Unicast (UDP), or Multicast (UDP+IGMP)
Audio Audio compression: AAC-LC, MPEG layer 2
Embedded audio input
Analog line or mic in, adjustable gain
Headphone output, adjustable volume
Interfaces Feature-rich WebUI for configuration and control
OLED LCD screen with joystick navigation buttons
On/Off and Reset Switch
microSD
Powered USB 2.0 host port
Network Ethernet: 10/100BASE-T
USB Modem support (optional)
Power 2-pin LEMO input
USB charging
Nominal power consumption: 3 W
Nominal power consumption while charging: up to 10 W
Auxiliary power input: 6-28 V DC
Chassis Aluminum
Dimensions 2.5x3.5x0.9" (6.35x8.9x2.2 cm)
Weight 8 oz (227 g)
