Teradek

Teradek Cube 255 HDMI Encoder, Dual-band 2.4/5.8G Wi-Fi, OLED Screen, Li-ion Battery / AC Power

SKU: TECUBE255 MFR: CUBE-255
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$1,490.00
Free Shipping
Qty:

Add to Wishlist In Stock

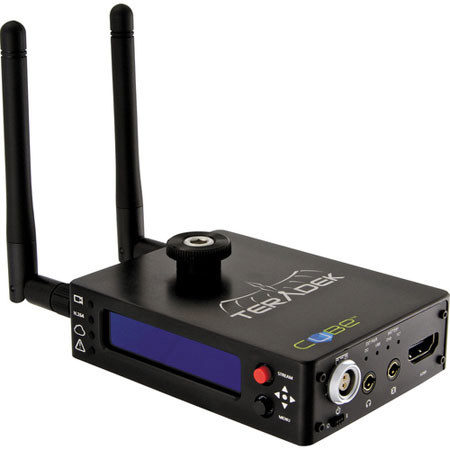

About the Teradek Cube 255 HDMI Encoder

The Teradek Cube 255 HDMI Encoder with Wi-Fi is a wireless camera-top video and embedded audio encoder. It connects to a camera by HDMI and streams proxy files/dailies in H.264 to a decoder or website. You can stream by dual-band Wi-Fi wherever a network is available, by Ethernet via an optional router, or by optional 3G/4G modem connection otherwise. You can also store the files to a MicroSD card as the Cube features a MicroSD slot with support for 32 GB cards.

For mounting, the Cube attaches either into a camera's hot-shoe or onto a cage/rig by an included 1/4"-20 mounting screw. Aside from the HDMI input, connections consist of an Ethernet port, a 1/8" line/mic input and a headphone jack. A micro USB slot is available for charging and configuring.

Power is by an internal lithium-ion battery that lasts up to two hours or by an included AC power adapter. An OLED LCD screen indicates what the remaining battery life is and also displays online status and the URL being streamed to. Optionally, any of the following three 2-pin Lemo batteries can be used for power: the Teradek/Swit Canon BP-945, Teradek/Swit Panasonic D54 and Teradek/Swit Panasonic VW-VGB6.

Teradek Cube 255 HDMI Encoder Includes

  • Teradek Cube 255 HDMI Encoder
  • AC Power Adapter
  • HDMI Cable
  • Ethernet Cable
  • 1/4"-20 Mounting Screw
  • Teradek Pouch
  • Teradek 1 Year Warranty

Teradek Cube 255 HDMI Encoder Features

  • OLED: OLED enables users to rapidly change and review the settings of their unit in addition to providing real-time feedback for filenames, recording status and wireless connectivity. No longer are computers or iPads needed for configuration; every feature is a simple click away
  • Li-ION Battery: Cube built-in Li-ION battery will give users up to 2 hours of runtime, which allows for seamless battery swapping or quick broadcasts. The battery can also be charged from an AC adapter or even a suitable external battery such as an Anton Bauer
  • MIMO Access Point: The new MIMO access point feature greatly improves wireless performance and enables special features such as wireless camera control for devices without a Wi-Fi capability built in and ensures improved connectivity from an iPad or Android tablets
  • Audio Output: Cube now comes with a headphone output for immediate audio monitoring
  • Micro USB: Cube's micro USB port will charge the new internal battery
  • CDN Integration: The new Cube also supports dozens of Content Delivery Networks (CDNs), including UStream, Justin.tv, Livestream, Youtube Live and many others

Teradek Cube 255 HDMI Encoder Specifications

Video Inputs HD-SDI, SD-SDI: BNC or HDMI
Supported Resolutions 1080i 50/59.94/60
1080p 23.98/24/25/30
720p 23.98/24/50/59.94/60
576p
480p
Video Codec Compression Algorithm: Baseline, Main and High Profile H.264 Main and Baseline profiles
Bit Rate: 250 Kbps to 10 Mbps
Built in Video Scaler and Deinterlacer
Video Streaming Support Network Protocols: TCP/IP, UDP, HTTP, DHCP, NTP, SSL, IGMP
Transport Protocols: RTP, RTSP, RTP over HTTP, MPEG-TS
RTMP (Adobe Flash Streaming)
HTTP Live Steaming
Point to Point (TCP or UDP), Multiple Unicast (UDP), or Multicast (UDP+IGMP)
Audio Audio Compression: AAC-LC, MPEG Layer 2
Embedded Audio Input
Analog Line or Mic in, adjustable gain
Headphone output, adjustable volume
Interfaces Feature-rich WebUI for configuration and control
OLED LCD Display with joystick Navigation buttons
On/Off and Reset Switch
Micro SD
Powered USB 2.0 host port
Network Ethernet: 10/100BASE-T
Wi-Fi: Dual Band 802.11 a/b/g/n MiMO
USB Modem support
Power 2 Pin Lemo Power input
Internal Rechargeable Lithium Ion Battery
USB Charging
Nominal Power Consumption: 3W
Nominal Power Consumption while Charging: up to 10W
Auxiliary Power Input: 6-28V DC
Dimensions (W x D x H) 2.5 x 3.5 x 0.9" (6.35 x 8.89 x 2.28 cm)
Weight 8 oz (226.8 g)
