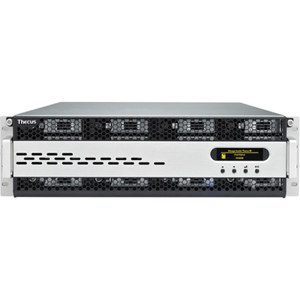

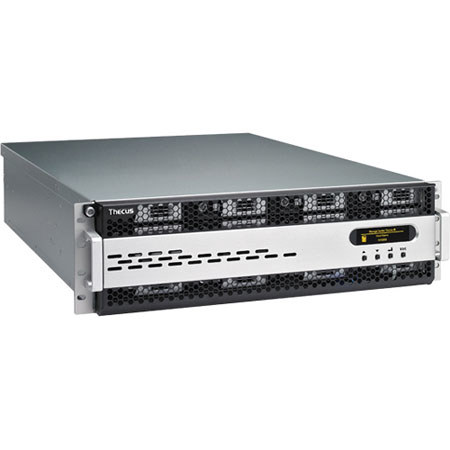

Thecus N16000 3U Rackmount NAS Server
Thecus

Thecus N16000 3U Rackmount NAS Server, Intel Xeon X3480 Quad-Core Processor, 8GB DDR3 RAM, 16x Bays SAS/SATA HDDs

SKU: THN16000 MFR: N16000
What's Included
What's Included With This Item:
  • Thecus N16000 NAS Storage Server
  • Power Cord
  • Accessory Bag with Key
  • Ethernet Cable
  • Acronis True Image DVD
  • Universal CD
  • Twonky Media Server CD
  • HDD Compatibility List Card
  • Warranty Card
  • Sliding Shelves
  • Quick Install Guide
  • Thecus Warranty
Write a Review
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 / 212-741-0052

Our Price

$5,229.99
Free Shipping (USA)
Qty:

Add to Wishlist
OverviewFeaturesTech Specs
Its never too late...Click by 8! Same day shipping.

About this item

The N16000 NAS Storage Server from Thecus is an advanced network storage server, perfectly suited for use in enterprise environments. The 16-bay enclosure -- capable of housing SAS or 6Gbps SATA drives -- features a 3U rackmount form factor. It is powered by a quad-core Intel Xeon X3480 CPU running at an impressive 3.06GHz.

The server boasts a 64-bit operating system, ensuring efficient operation. Its High Availability design ensures that your data is safe and accessible at all times. The enclosure features a RAID controller that allows you to configure disks as a RAID 0, 1, 5, 6, 10, 50, 60, or JBOD.

It connects to your network via Gigabit Ethernet -- three ports with link aggregation support are available for network connection. The server features USB 3.0, USB 2.0 and eSATA ports for external device connectivity. PCI Express slots are available for expansion card installation. Power is provided by a redundant 700W system.

What's Included With This Item

  • Thecus N16000 NAS Storage Server
  • Power Cord
  • Accessory Bag with Key
  • Ethernet Cable
  • Acronis True Image DVD
  • Universal CD
  • Twonky Media Server CD
  • HDD Compatibility List Card
  • Warranty Card
  • Sliding Shelves
  • Quick Install Guide
  • Thecus Warranty

Key Features

  • Intel Xeon for Blazing Speed: Harnessing the power of Intel's Xeon X3480 processor and an overwhelming 8GB of cutting-edge DDR3 RAM, the N16000 can handle anything and everything at full speed. There are no bottlenecks or speed bumps
  • Enterprise Size for Enterprise Tasks: With a whopping 48 terabytes of data capacity, you'll never go wanting again. No matter whether you are providing a public server for a massive workforce or compiling a company's worth of HD video, your NAS will always be hungry for more
  • SATA III and SAS 6G for Ultra-Fast Transfer Speeds: The N16000 features support for internal hard drives with SATA III and SAS 6G. This top-of-the-line connection transfers at speeds up to an amazing 6Gbps
  • High Availability (HA): For the first time, your data is completely free of delays in access. Regardless of the situation, HA actively keeps your data on two separate, identical NAS
  • Rock-Solid Security: The N16000 safeguards your data with all the RAID modes you could possibly need for an Enterprise server, including RAID 0, 1, 5, 6, 10, 50, 60 and JBOD
  • 10Gb Ethernet and Future Expansion: The future is right around the corner and the N16000 is leading the way. With its furiously fast 8-lane PCI-e slots, the N16000 can accommodate a number of emerging technologies, including 10Gb Ethernet

Technical Specs

Processor Intel Xeon Processor X3480 Processor + Intel 3450 chipset
SAS/SATA controller(HBA), PCI-e(8-lane) LSI 2008 HBA card supports 6G SAS/SATA (x8)
System memory 8GB DDR3 SDRAM
LAN interface (PCI-e) RJ-45x3: Intel 82574L 10/100/1000 BASE-TX Auto MDI/MDI-X
WOL supported
USB interface USB 2.0 host port x6 (front x2, back x4) (Type A)
USB 3.0 host port x2 (back x2)
eSATA External (back x2 )
OLED Displays system status and information (Multilingual)
LED indicator Power:(Blue)
System busy: (Yellow)
System alert: Redundant power or system fan failure (Red)
HDD 1-16 Activity/Fail (Green/Red)
PCI-e slots 8-lane (x3), One is used by SAS HBA
4-lane (x1)
1-lane (x1) used by CU30N (USB 3.0)
Power supply Redundant power supply least 700W or more (80plus)
Disk interface SATA/SAS (x16) via backplane
Thermal/Fan control Thermal sensor on processor temperature
CPU Fan control
System Fan control
System fan Hot Swappable (x4)
Buttons Power button(Front, power down controlled by S/W)
LCM button (ENT, ESC, UP, DOWN)
System reset button
Locator button
RS232 1 (For UPS)
Environment Temperature: 5Deg.C to 40Deg.C
Humidity: 0 - 80 % R.H. (Non-condensing)
RAID modes RAID 0, 1, 5, 6, 10, 50, 60 and JBOD
Auto-rebuild Supported
Hot-swap Supported
Dedicated hot spare Supported
Global hot spare Supported
SMART info Supported
SMART test Supported
Online RAID migration Supported
Online RAID expansion Supported
RAID volume encryption AES256bit
Power management Available spin-down while idle setting
Bad block scanning Supported
Disk roaming Supports roaming to other N16000 in volume based
Configuration Fixed IP Address, Dynamic IP Address,
IP sharing mode Can be enable/disabled
Transport protocols TCP/IP/AppleTalk
File protocols SMB/CIFS, HTTP/HTTPS, FTP, NFS v3, AFP
Link aggregation 6 modes supported
10GbE NIC Supported
Client OS support Windows 2000/XP/2003/Vista, Windows 7
UNIX/Linux
Mac OS 9/X
Web disk Web-based file access
FTP Build-in FTP Server with bandwidth control
Secure FTP Build-in secure FTP Server with bandwidth control
Download manager (module) HTTP/FTP/BitTorrent/eMule
Printer server (IPP) Supports USB printers
Supports IPP various printers
Client can manage print tasks (list/delete) via web user interface
Client incremental data backup Acronis Backup and Recovery Server OEM for Windows (license x5)
Client system disaster recovery Acronis Backup and Recovery Server OEM for Windows (license x5)
NAS remote replication Dual mode in volume based
Incremental
Synchronized
USB device copy to N16000 Controlled through LCM
Bi-directional USB copy (module) Supported
iSCSI target Supports Microsoft/Mac/Linux initiator
iSCSI initiator For stacking with N5200/1U4500/1U4600/N5500/N7700 series/N8800 series/N12000/N16000
iSCSI thin provisioning Configurable to virtual size 16TB
MPIO Supported
Clustering Supported
MCS Supported
Scheduled power on/off Supported
Multiple RAID Supported
Multiple file system selectable EXT3/EXT4/XFS
iTunes Server Supported File Types: AAC, MP3 w/ ID3 tag, WAV
Photo Web Server Supported File Types: GIF, JPG (JPEG), BMP, PNG
Supports EXIF display
Supports slide shows
Local user Supports built-in user accounts
Local group Supports built-in user groups
File type Journaling File System
Capacity 48TB (XFS)/ 16TB (EXT4)/ 8TB (EXT3) per volume
Language support Unicode Support
Authorization (ACL) Read, Write, or Deny options on individual users or groups for sharing, sub-folders and files
User quota Supported
Multi-lingual web-based administration Web-based server management interface supports English, Traditional Chinese, Simplified Chinese, Japanese, Korean, French, German, Italian, Spanish, Russian, Polish and Portuguese
Utility program MS Windows Setup Wizard, supports Windows 2000/XP/2003/Vista/7
Mac OS X setup Wizard
Email notification Sends system messages via e-mail to system administrator
SNMP trap System information trap out
Dual DOM Supported
Web disk Supported
Recycling bin Supported
Web server (module) Supported
ISO mount Supported
User module Supported
IP cam surveillance (module) Supports up to 10 IP cams
HA (High Availability) Supported
Rack Mount 3U
