Thecus

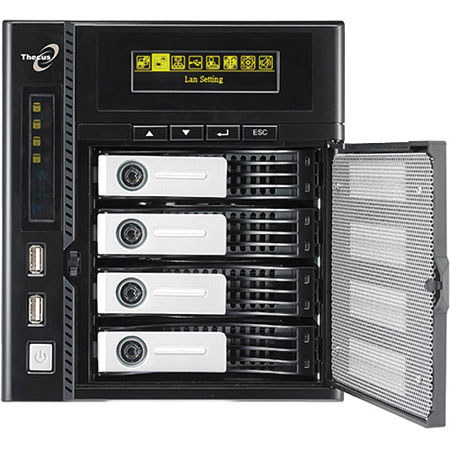

Thecus N4200Eco 4 Bay NAS Storage Server

SKU: THN4200ECO MFR: N4200ECO
Ships in 1-2 business days
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$439.99
Free Shipping
Qty:

Add to Wishlist

About the Thecus N4200Eco

The N4200Eco NAS Storage Server from Thecus is a network storage solution for your home or small business. It connects to your network via 10/100/1000Mbps Gigabit Ethernet. The server has four bays, each of which can accommodate a 2.5" or 3.5" SATA HDD. Two eSATA and six USB 2.0 ports provide further connectivity options.

When using multiple hard drives, the N4200Eco provides a number of RAID options to give you the option to balance the storage space and redundancy to levels you're comfortable with. The dual Ethernet design ensures that your data is secure even in the event of power failure or hardware malfunction. The N4200Eco provides a flexible storage solution for all your media or files.

Thecus N4200Eco Includes

  • Thecus N4200Eco 4 Bay NAS Storage Server
  • Accessory Bag (with Key)
  • Ethernet Cable
  • Power Cord
  • Power Adaptor
  • Acronis True Image DVD
  • Universal CD
  • Twonky Media Server CD
  • QIG
  • Warranty Card
  • HDD Compatibility List Card
  • Thecus Warranty

Thecus N4200Eco Features

  • Next-Generation Performance: The N4200Eco is powered by the latest Intel Atom D525 Processor and 1GB of DDR3 memory, which delivers impressive performance across the board
  • Huge Storage Capacity: If you've got a lot of data to store, then you're going to love the N4200Eco. Four SATA hard disk bays mean up to 8TB of storage, perfect for your entire collection of movies, music, photos and more
  • Complete Data Management: When it comes to data management, the N4200Eco truly lets you have it your way. Select between multiple RAID modes including RAID 0, 1, 5, 6, 10 and JBOD for your own balance of performance and data protection
  • Dual Display Convenience: The N4200Eco is equipped with not one, but two separate displays. See critical system status from the LCD module and change various system settings using the colorful 2.8" OLED module - all without being anywhere near a computer!
  • Advanced Power Saving Features: Save the planet and save money at the same time with the N4200Eco's power saving features. Schedule your NAS to turn on and off automatically and have hard disks automatically spin down when idle for a time that you specify
  • Robust Functionality: Included with the N4200Eco is a laundry list of useful features such as an FTP server, download manager, printer server, iTunes server, photo web server, media server and more, making the N4200Eco an amazingly flexible and robust storage device

Thecus N4200Eco Specifications

Processor Intel Atom Processor D525
System Memory 1 GB DDR-3 SDRAM
LAN Interface RJ-45x2: 10/100/1000 BASE-TX Auto MDI/MDI-X
LCD indicator HDD Power, Activity (Yellow) / Fail (Red)
LAN_WAN Activity (Green)
USB_COPY_Busy (Blue)
USB_COPY_ Fail (Red)
OLED Module 2.8" OLED display
4 buttons (ENTER, ESC, UP, DOWN)
Multi-lingual supported
Power Supply External power adapter 19V input (support 2TB and above HDDx4 )
Disk Interface SATA x4 for internal, 2x eSATA for external
Expansion Slot PCI-e x1
USB Interface USB 2.0 host port x6(Front x2, Back x4) (A Type)
Thermal/Fan control Thermal sensor on system and processor
System fan speed controlled according to temperature
Real-time clock Battery backup system clock
Buttons Power button
Reset to factory default button
Chassis Metal chassis
RAID Modes RAID 0, 1, 5, 6,10, JBOD
Auto-Rebuild Supported
Hot-Swap Supported
Hot-Spare Supported
Online RAID Migration Supported
Online RAID Expansion Supported
SMART Info Supported
SMART Test Supported
RAID Volume Encryption AES 256bit
Power Management Configurable automatic drive spin down
Roaming Supports roaming to other N4200Eco NAS
Bad Block Scan Supported
Multiple RAID Supported
Selectable File Systems Ext3/ XFS/ZFS
Configuration Fixed IP address, dynamic IP address
IP sharing mode Can be enabled/disabled
Link Aggregation 802.3ad, load balance, failover, Balance-XOR, Balance-TLB, Balance-ALB
Transport Protocols TCP/IP, AppleTalk
File Protocols SMB/CIFS, HTTP/HTTPS, FTP, NFS
v3, AFP
Data Access: Client OS support Windows 2000/7/XP/2003/Vista
UNIX/Linux
Mac OS 9 / X
Data Access: WebDisk Web-based file access
Data Access: FTP Built-in FTP server with bandwidth control
Data Access: SFTP Built-in SFTP server with bandwidth control
Data Access: Download Manager (module) HTTP / FTP / BT / eMule / NZB
Data Access: Printer Server (IPP) Supports USB printers
Supports IPP various printers
Client can manage print tasks (list/delete) via web user interface
Data Access: TFTP Server Users can download and upload files with TFTP programs
USB copy via OLED operation Copy USB mass storage device contents to specified locations on NAS
NAS data backup to external USB disk Incremental with schedule supported
Client schedule incremental Acronis True Image (OEM Version)
Client system Disaster Recovery Acronis True Image (OEM Version)
NAS Remote Replication Via Thecus proprietary Nsync
NAS Remote Replication (module) Via Rsync to replicate data between two systems.
Mac Time Machine Supported
Snapshot Supported
iSCSI Target Supports Microsoft/Mac/Linux Initiator
iSCSI initiator For stackable with N4200/ N4200PRO/N4200Eco/ N5200PRO/1U4600/N5500/N7700 series/N8800 series
iSCSI Thin Provisioning Virtual size adjustable up to 16TB
iTunes Server Supported file types: AAC, MP3 w/ ID3 tag, WAV
Photo Web Server Supported file types: GIF, JPG (JPEG), BMP, PNG
Supports EXIF display
Supports slide show
Media server Supports uPnP AV streaming protocol
Local User Supports built-in user accounts
Local Group Supports built-in user groups
Windows NT/ADS Supported
File System: Type Journaling file system
File System: Capacity Multi-terabyte
File System: Language Support Unicode Support
File System: Authorization Read, Write or Deny options on individual users or groups
File System: Authorization (ACL) Read, Write or Deny options on individual users or groups for shared and sub-folders
Multi-Lingual Web-based Administration Web-based server management interface supports English, Traditional Chinese, Simplified Chinese, Japanese, Korean, French, German, Italian, Spanish, Russian, Polish and Portuguese
Utility Program MS Windows / Mac OS X Setup Wizard,
Supports multilingual
Supports Windows 2000/7/XP/2003/Vista, Mac OS X backup utility
Email notification Sends system messages via email to system administrator
SNMP Management Supported
Scheduled On/Off Supported
Wake-On-LAN (WOL) Supported
Recycle bin Supported
Web Server + MySQL (module) Supported
ISO Mount Supported
Web Disk Supported with remote access
Auto Module Installation If Thecus IP storage is capable of connecting to the Internet, then it will automatically link to Thecus's official website and list available modules.
IP CAM Surveillance Server (module) Supports up to 5 IP CAM devices
Supported Web Browsers Internet Explorer 7 or higher
Firefox 3 or higher
Temperature 5deg.C to 40deg.C
Humidity 0 - 80 % R.H. (Non-condensing)
