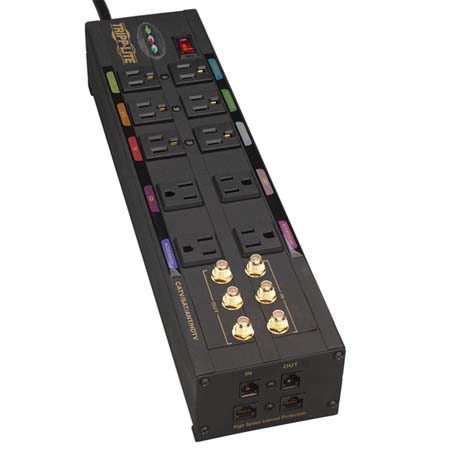

Tripp Lite Isobar Home & Business Theater Surge Suppressor, 10 Outlets with 3570 Joules Surge Suppression

SKU: TLHT10DBS MFR: HT10DBS
What's Included
What's Included With This Item:
  • Tripp Lite HT10DBS Home/Business Theater Surge Suppressor
  • 6-ft. DSS Cable
  • 6-ft. Phone Cord
  • 6-ft. Network Cable
  • Instruction Manual
  • Tripp Lite Lifetime Warranty
Write a Review
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 / 212-741-0052

Our Price

$76.04
Qty:

Add to Wishlist
OverviewFeaturesTech Specs

About this item

Tripp Lite Isobar Home/Business Theater Surge Suppressor provides premium protection-3570 joules-stopping damaging surges and filtering disruptive line noise so components perform at their peak. You can see and hear the difference: sharper, crisper video; deeper, fuller audio and longer component life spans.
Perfect for medium-to-large home/business theater installations: high-definition TVs, PVRs, satellite and A/V receivers, subwoofers, DVD/CD players and more. Exclusive Isolated Filter Banks eliminate noise interference between components.
10 outlets (with transformer spacing and plug-in safety covers), 3-line coaxial protection, 1-line tel/modem protection and 1-line network (100BaseT, high-speed) protection safeguard an entire home/business theater system.

What's Included With This Item

  • Tripp Lite HT10DBS Home/Business Theater Surge Suppressor
  • 6-ft. DSS Cable
  • 6-ft. Phone Cord
  • 6-ft. Network Cable
  • Instruction Manual
  • Tripp Lite Lifetime Warranty

Key Features

  • 3570 joules surge suppression rating with EMI/RFI line noise filtering help components perform at their peak (sharper, crisper video; deeper, fuller audio and longer component life spans)
  • Isolated Filter Banks eliminate interference between connected components
  • All-metal housing safely withstands the strongest surges
  • 10 surge-protected NEMA 5-15R AC outlets safeguard an entire home/business theater system
  • Widely spaced outlets accommodate up to 6 transformers
  • Four plug-in safety covers protect against accidental contact with unused outlets
  • 3 sets of surge-protected Type F gold coaxial connectors (with included 6-ft. gold coax cable) safeguard components on cable, satellite and antenna line
  • 1-line tel/modem and 1-line network (100BaseT, high-speed) surge protection (with included 6-ft. phone cord and 6-ft. network cable) safeguards personal video recorders (PVRs) on up to two lines simultaneously.
  • 8-ft. cord with right-angle NEMA 5-15P plug provides convenient location anywhere within a home/business theater system
  • 3 diagnostic LEDs alert user to protection, line power and ground status
  • Keyhole slots provide convenient wall or cabinet mounting
  • Illuminated master switch provides one-touch power control over all components. Circuit breaker protects against dangerous system overload
  • All-metal housing (black) stands up to the most demanding environments
  • UL and cUL listed
  • Color-coordinated outlet/plug labels

Technical Specs

Voltage compatibility 120 VAC
Frequency compatibility 50/60 Hz
Output volt amp capacity (amps) 12
Output watts 1440
Outlet quantity / type 10 NEMA 5-15R
Transformer accommodation Accommodates 6 transformers
Input connection type NEMA 5-15P
Input cord gauge, type 14 gauge, SJT
Input cord length (ft.) 8 ft.
Input cord length (m) 2.4
Recommended electrical service 120V,15A
Input plug features Space-saving right-angle input plug
Diagnostic LEDs Built-in LEDs confirm line power, protection and ground status
Switches Combination AC circuit breaker and illuminated 2 position on/off power switch
Protection modes Includes full normal mode (H-N) and common mode (N-G / H-G) line surge suppression
AC suppression joule rating 3570 joules
Clamping voltage (RMS) 140V
AC suppression response time NM = instantaneous CM =< 1 ns
UL1499 let through rating 330V - UL verified
EMI / RFI filtering Up to 60 dB
UL1449 1998 Rev. (AC Suppression) UL1449
UL1363 (Power Tap) UL1363
UL497A (Communications) UL497A
FCC Part 68 (Communications) FCC Part 68
cUL / CSA (Canada) cUL
Approvals Exceeds IEEE 587 category A&B specifications
Coax line protection 3 line
Network Ethernet line protection 1 line
TEL / Modem line protection 1 line
Material of construction Metal
Integrated keyhole mounting tabs Keyhole mounting slots allow desk or wall mounting
AC line cord color Black
Dimensions 14.25 x 2.25 x 3.5 (HxWxD/in)
Weight 3.5 (lbs)
Warranty Tripp Lite lifetime warranty
