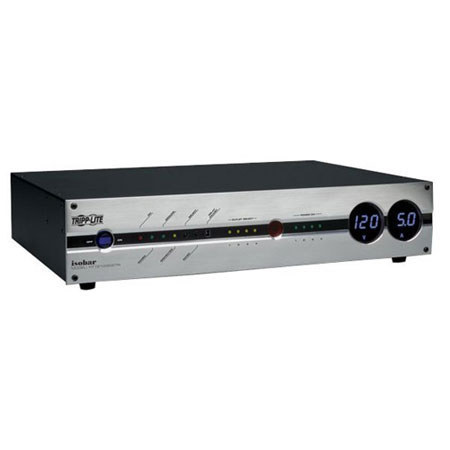

Tripp Lite Isobar Audio/Video Power Center, 2U Rack/Console, 5700 Joules

See all Tripp Lite items
SKU: TLHT1210ISOC MFR: HT1210ISOCTR

Our Price

$429.00
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

About Tripp Lite

Tripp Lite's HT1210ISOCTR Isobar Audio/Video Power Center provides ultimate protection 5700 joules stopping damaging surges and filtering disruptive EMI/RFI line noise so components perform at their peak. The difference can be seen and heard: sharper, crisper video; deeper, fuller audio; and longer component life spans.

Perfect for large home/business theater installations, high-definition TVs, PVRs, satellite and A/V receivers, subwoofers, DVD/CD players and more. Exclusive Isolated Filter Banks eliminate noise interference between components. Features 12 AC outlets arranged in 3 filter banks: Analog, Digital and High Frequency. Four AC outlets are sequenced and individually controllable; IR remote control device included. Dual digital LED displays plus 12 additional LEDs show incoming voltage, current connected equipment load and a variety of operating conditions.

Three-line HD-compatible gold coaxial surge protection, 1-line tel/modem protection with built-in splitter (1 line in/2 lines out) and 1-line Ethernet protection safeguard audio/video components on all connections. Metal housing; 2U rackmount/console design with included hardware and removable console feet, 10-ft. power cord with right-angle plug. Includes 6-ft. gold coaxial cable, 6-ft. phone cable and 6-ft. network cable.

Tripp Lite Features

  • 5700-joule surge suppression rating with EMI/RFI line noise filtering helps components perform at their peak (sharper, crisper video; deeper, fuller audio; and longer component life spans)
  • Exclusive Isolated Filter Banks eliminate interference between connected components
  • 3 built-in filter banks: Analog, Digital, High Current
  • Metal housing safely withstands the strongest surges
  • 12 surge-protected NEMA 5-15R AC outlets safeguard all audio/video components
  • 4 sequenced, individually IR-controllable AC outlets work with either included remote device or with user-supplied universal learning IR remote to facilitate orderly system startup and shutdown
  • 3 sets of surge-protected, HD-compatible 2.2 GHz Type F gold coaxial connectors safeguard components on cable, satellite and antenna connections; one 6-ft. gold coaxial cable included
  • 1-line tel/modem surge protection safeguards personal video recorders (PVRs) on a single dial-up connection. Built-in splitter (1 jack in/2 jacks out) allows simultaneous connection of two devices sharing a single line; one 6-ft. phone cable included
  • 1-line Ethernet surge protection safeguards equipment on a 10/100 Base T network connection; one 6-ft network cable included
  • 10-ft. power cord with right-angle NEMA 5-15P plug permits convenient placement anywhere within a home/business theater system
  • 2 digital LED displays and 12 additional diagnostic LEDs alert user to input voltage levels, component load levels and 4 operational conditions (power, protection, grounding, selected outlets)
  • 2U rackmount or console installation options; rackmount hardware and removable rubber console feet included
  • Illuminated master switch provides one-touch power control over all components
  • 15A circuit breaker protects against dangerous system overload
  • Fail-safe thermal fusing acts like an additional circuit breaker, shutting down the unit and connected equipment in the event of a catastrophic surge
  • Audible alarm immediately alerts user to damaged protection circuitry; perfect for installations where LEDs aren't normally viewed
  • Color-coordinated outlet/plug labels match outlets to component power cords for easy identification
  • TUV tested to UL standards 1449, 60950 and 962A

Tripp Lite Specifications

Voltage compatibility
120 VAC
Frequency compatibility
50/60 Hz
Output volt amp capacity (amps)
12
Output watts
1440
Outlet quantity / type
12 NEMA 5-15R
Overload protection
15A circuit breaker
Input connection type
NEMA 5-15P
Input cord gauge, type
14 gauge, SJT
Input cord length (ft.)
10 ft.
Input cord length (m)
3
Recommended Electrical Service
120V (110-125V)
Input plug features
Right-angle plug
Diagnostic LEDs
Dual digital LED displays and 12 additional diagnostic LEDs alert user to input voltage levels, component load levels and 4 operational conditions (power, protection, grounding, selected outlets)
Alarms
Audible alarm
Switches
Illuminated on/off power switch
Protection modes
Includes full normal mode (H-N) and common mode (N-G / H-G) line surge suppression
AC suppression joule rating
5700 joules
AC suppression response time
NM = instantaneous CM =< 1 ns
Safe thermal fusing
Yes
UL1499 let through rating
330V - UL verified
EMI / RFI filtering
Yes
Isolated filter banks
3
Material of construction
Metal
Form factors supported
2U rackmount/console installation
Mounting accessories included
2U rackmounting hardware
Receptacle Color
Black
AC line cord color
Black
UL1449 1998 Rev. (AC Suppression)
UL1449
UL1283 (EMI Filter)
UL1283
cUL / CSA (Canada)
cUL
Approvals
RoHS, TUV tested to UL standards 1449 & 962A
Appearance
Attractive black housing and receptacles with silver faceplate
Coax line protection
3 line (support 2.2GHz bandwidths)
Network (Ethernet) Protection
1
Telephone / Modem line protection
1 line
Style
Rack/Console
Unit Dimensions (HxWxD/in)
3.5 x 17.5 x 12
Unit Dimensions (HxWxD/cm)
8.8 x 43.8 x 30.5
Unit weight (lbs)
13.5
Unit weight (kg)
6.1
Warranty
Tripp Lite limited lifetime warranty
