Tripp Lite Isobar Home/Business Theater Surge Suppressor
Tripp Lite

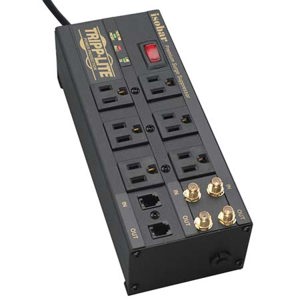

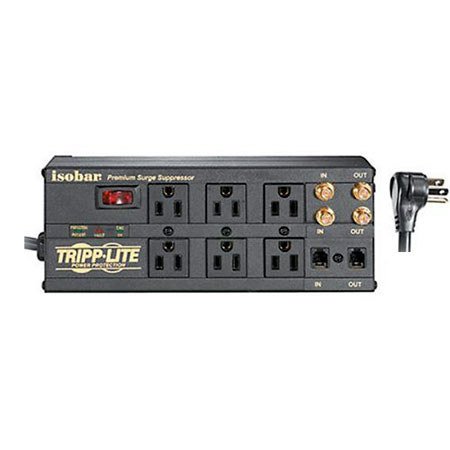

Tripp Lite Isobar Home / Business Theater Surge Suppressor, 6 Outlets with 2850 Joules Surge Suppression

SKU: TLISOBAR6DBS MFR: ISOBAR6DBS
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 / 212-741-0052

Our Price

$64.99
Qty:

Add to Wishlist

About this item

Tripp Lite Isobar Home/Business Theater Surge Suppressor provides premium protection-2850 joules-stopping damaging surges and filtering disruptive line noise so components perform at their peak. You can see and hear the difference: sharper, crisper video; deeper, fuller audio and longer component life spans.

Perfect for small-to-medium home/business theater installations like high-definition TVs, satellite and A/V receivers, DVD/CD players and more. Exclusive Isolated Filter Banks eliminate noise interference between components.

6 outlets (with transformer spacing and plug-in safety covers), 2-line coaxial protection and 1-line tel/modem protection safeguard an entire home/business theater system.

What's Included With This Item

  • Tripp Lite ISOBAR6DBS Home/Business Theater Surge Suppressor
  • 6 ft. Coaxial Cable
  • 6 ft. Phone Cord
  • Instruction Manual
  • Tripp Lite Lifetime Warranty

Key Features

  • 2850 joules surge suppression rating with EMI/RFI line noise filtering help components perform at their peak (sharper, crisper video; deeper, fuller audio and longer component life spans)
  • Isolated Filter Banks eliminate interference between connected components
  • All-metal housing safely withstands the strongest surges
  • 6 surge-protected NEMA 5-15R AC outlets safeguard an entire home/business theater system
  • Widely spaced outlets accommodate up to 3 transformers
  • Four plug-in safety covers protect against accidental contact
  • 2 sets of surge-protected Type F gold coaxial connectors (with included 6-ft. coaxial cable) safeguard components on cable, satellite or antenna line
  • 1-line tel/modem surge protection (with included 6-ft. phone cord) safeguards personal video recorders (PVRs) on a single dial-up line.
  • 6-ft. cord with right-angle NEMA 5-15P plug provides convenient location anywhere within a home/business theater system
  • 3 diagnostic LEDs alert user to protection, line power and fault status
  • Keyhole slots provide convenient wall or cabinet mounting
  • Illuminated master switch provides one-touch power control over all components. Circuit breaker protects against dangerous system overload
  • All-metal housing (black) stands up to the most demanding environments
  • UL and cUL listed

Technical Specs

Voltage compatibility 120 VAC
Frequency compatibility 50/60 Hz
Output volt amp capacity (amps) 12
Output watts 1440
Outlet quantity / type 6 NEMA 56 NEMA 5-15R output receptacles, high quality duplex style-15R
Transformer accommodation Accommodates 3 transformers
Input connection type NEMA 5-15P
Input cord gauge, type 14 gauge, SJT
Input cord length (ft.) 6 ft.
Input cord length (m) 1.8
Recommended electrical service 120V,15A
Input plug features Space-saving right angle input plug
Diagnostic LEDs Protection Present (green), Line fault (red) and Line ok(green)
Switches Two position red illuminated on/off power switch
Protection modes Includes full normal mode (H-N) and common mode (N-G / H-G) line surge suppression
AC suppression joule rating 2850 joules
Clamping voltage (RMS) 140V
AC suppression response time NM = 0 ns. CM = <1 ns
UL1499 let through rating 330V - UL verified
EMI / RFI filtering Up to 40 dB40-80 dB
Material of construction Metal
Integrated keyhole mounting tabs Keyhole mounting slots allow desk or wall mounting
Receptacle Color Black
AC line cord color Black
UL1449 1998 Rev. (AC Suppression) UL1449
UL1363 (Power Tap) UL1363UL1363
UL497A (Communications) UL497A
FCC Part 68 (Communications) FCC PFCC Part 68art 68
cUL / CSA (Canada) cULcUL
Approvals Exceeds IEEE 587 category A&B specifications
Appearance Rugged all-metal corded strip format with high quality duplex receptacles
Coax line protection 2 line
TEL / Modem line protection 1 line
Dimensions 2.5 x 9 x 3.5 (HxWxD/in)
Weight 2.8 (lbs.)
Warranty Tripp Lite lifetime warranty
