Tripp Lite

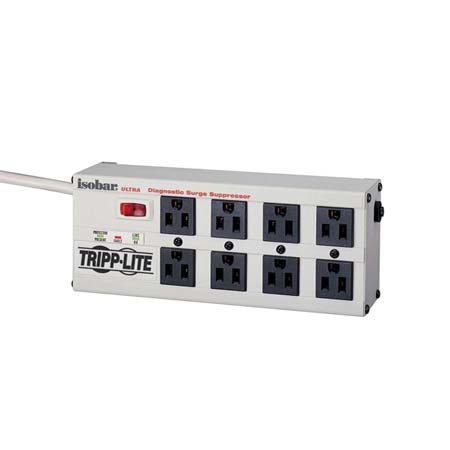

Tripp Lite Isobar 2350 Joules Surge Suppressor for Premium Surge, Spike & Line Noise Protection, 8 Outlets

SKU: TLISOBAR8ULT MFR: ISOBAR8ULTRA
Ships in 1-2 business days
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$48.99
Qty:
Add to Wishlist In Stock

About this item

The Tripp Lite Isobar Surge Suppressor is loaded with a generous combination of high quality components, near indestructible all-metal case and unique noise filtration system, the Isobar offers the highest level of protection attainable in a multi-outlet strip. Robust surge suppression circuits with sine-wave tracking offer extreme levels of protection against the heaviest surge conditions exceeding IEEE 587 category A & B specifications and reducing 6,000V test surges to harmless levels under 35 volts.

Isobar's unique protection system combines large torroidal chokes, ferrite rod-core inductors, HF/VHF capacitors and multiple layers of metal oxide varistors into exclusive isolated filter banks that remove EMI/RFI interference, even noise generated by other pieces of connected equipment.

ISOBAR6ULTRA offers 8 outlets arranged in three filter banks to prevent system crashes, reboots and performance problems common as noisy system peripherals are powered off and on. Surge suppression rated at 2350 joules/97,000 amps offers network-grade protection.

Widely spaced NEMA 5-15 outlets accommodate up to 4 large transformer plugs without blocking outlets. Diagnostic LEDs confirm power availability, line fault and protection status.

What's Included With This Item

  • Tripp Lite ISOBAR8ULTRA Surge Suppressor
  • Set of 4 Outlet Safety Covers
  • Instruction Manual
  • Tripp Lite Lifetime Warranty

Key Features

  • Robust surge suppression with sine-wave tracking protects against the heaviest of surge conditions, exceeding IEEE category A&B specifications and reducing 6,000V test surges to harmless levels less than 35 volts
  • Multi-component suppression circuits combine torroidal chokes, ferrite rod-core inductors, HF/VHF capacitors and multiple layers of metal oxide varistors into exclusive isolated filter banks that remove EMI/RFI interference, even noise from other pieces of connected equipment
  • 8 outlets arranged in four filter banks prevent system crashes, reboots and performance problems common as noisy peripherals are powered off and on
  • Network grade surge suppression rated at 2350 joules/97,000 amps
  • Widely spaced outlets accommodate up to 4 large transformer plugs without blocking outlets
  • 3 LED indicators confirm suppressor operation and site wiring status, plus warning of suppressor or electrical fault conditions
  • Lighted power switch confirms power on/off status
  • 12 foot AC line cord with space-saving angled input plug
  • Keyhole mounting tabs allow permanent installation
  • Set of 4 outlet covers safely seal off unused outlets
  • 120V AC, 50/60Hz electrical compatibility
  • All metal housing with LEDs
  • Isolated filter banks

Technical Specs

Voltage compatibility 120 VAC
Frequency compatibility 50/60 Hz
Output volt amp capacity (amps) 12
Output watts 1440
Outlet quantity / type 8 NEMA 5-15R
Transformer accommodation Supports up to 4 large transformer plug accessories without covering remaining outlets
Input connection type NEMA 5-15P input plug
Input cord length (ft.) 12 ft.
Input cord length (m) 3.7
Recommended electrical service 120V,15A
Diagnostic LEDs Protection Present (green), Line fault (red) and Line ok (green)
Switches Two position red illuminated on/off power switch
Protection modes Includes full normal mode (H-N) and common mode (N-G / H-G) line surge suppression
AC suppression joule rating 2350 joules
Clamping voltage (RMS) 140V
AC suppression response time NM = 0 ns. CM = <1 ns
AC suppression surge current rating 97,000 amps (36,000 NM / 61,000 CM)
AC suppression components used Metal oxide varistors, toroidal balanced chokes, ferrite rod-core inductors and VHF capacitors.
Safe thermal fusing Prevents unsafe conditions during extreme extended over-voltages and catastrophic occurrences
UL1499 let through rating 330V - UL Verified
IEEE587 Cat. A ringwave let through Less than 35 volts
EMI / RFI filtering 40-80 dB
Isolated filter banks Unique isolated filter bank design offers additional filtering between each duplex pair of outlets on the strip to prevent electrical noise interference between connected loads. Includes 4 filter banks.
Immunity Conforms to IEE 587 / ANSI C62.41
Material of construction Metal
Integrated keyhole mounting tabs Metal end caps are fitted with keyhole mounting tabs for wallmount installation
Receptacle Color Black
AC line cord color Gray
UL1449 1998 Rev. (AC Suppression) UL1449
UL1283 (EMI Filter) UL1283
UL1363 (Power Tap) UL1363
cUL / CSA (Canada) cUL
Approvals Exceeds IEEE 587 category A&B specifications
Appearance Rugged all-metal corded strip format with high quality duplex receptacles
Dimensions 2.5 x 9 x 3.5 (HxWxD/in)
Warranty Tripp Lite lifetime warranty
