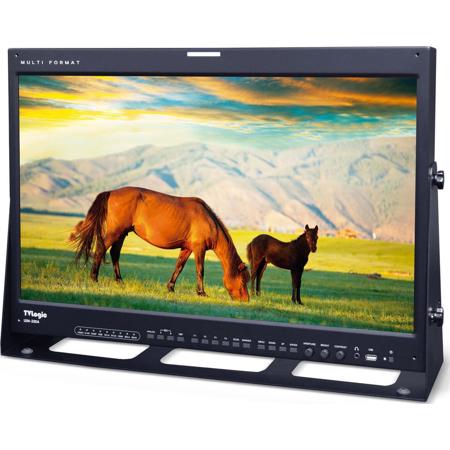

TV Logic LEM-250A 24.5" 1080p FHD 10-bit Reference OLED Monitor, 16:9 Aspect Ratio, 1200:1 Min Contrast Ratio, 150cd/m2, Waveform/Vectorscope, HDMI/BNC

SKU: TLLEM250A MFR: LEM-250A

Our Price

$6,520.00
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

List Price: $7,245.00

Availability: Special Order Special Order - Usually ships in 3-7 days.
Your card will only be charged once item ships.

Free Shipping

See all shipping options

Product Highlights

  • Firmware update by using Ethernet or USB
  • OLED Video Monitor
  • Camera Mount
TV Logic LEM-250A: Picture 1 regular $6,520.00

About TV Logic LEM-250A

The TVLogic LEM-250A 24.5" 1080p FHD 10-bit Reference OLED Monitor is a 24.5" full HD resolution monitor utilizing the best OLED display and equipped with all the features of TVLogic's XVM series reference monitors. Combined with the TVLogic's outperforming video processing and color calibration technology, LEM-250A gives highest picture quality and professional features that is required in the most color critical work environment.

TV Logic LEM-250A Features

  • Supports TVLogic Color Calibration Utility for proper color alignment
  • Supports Multi-point Calibration for RGB and White uniformity correction
  • Supports 3D LUT & Adjustable Gamma(1.0 to 3.0) and user-defined mode
  • Supports 3rd party 3D LUT formats for import and export
  • Firmware update by using Ethernet or USB

TV Logic LEM-250A Specifications

Monitor Size
24.5"
Resolution
1920 x 1080
Aspect Ratio
16:9
Pixel Pitch
0.283mm (H) × 0.283mm (V)
Color Depth
1.07B (True 10bit)
Viewing Angle (Typ.)
duv=0.008 at 30°
Luminance (Max.)
150cd/m2 (center)
Contrast Ratio
1200:1 (min), 5000:1 (dark)
Display Area
543.36 mm (H) × 305.64 mm (V)
Input
1 x DVI-I: DVI IN
3 x BNC: CVBS / S-Video / Component / RGB(VGA)
2 x BNC: SDI A/B Channel Input
1 x HDMI: HDMI Input
1 x BNC: EXT SYNC INPUT
Output
3 x BNC: CVBS / S-Video / Component / RGB(VGA)
2 x BNC: SDI A/B Channel (Active Through Out)
1 x BNC: EXT SYNC OUT(Active Through Out)
Input Signal: Analog(Composite)
CVBS / S-Video / Component / RGB(VGA
Input Signal: 3G-SDI
2.970Gbps
Input Signal: HD-SDI
1.485Gbps
Input Signal: SD-SDI
270Mbps
Input Signal: DVI
640x480/720x400/800x600/1024x768/1280x768/1280x1024/1366x768
Input Signal: HDMI (PC & HDMI mode)
1080p (23.98/24/25/30/50/59.94/60)/1080i(50/59.94/60)/720p(50/60) 480i(60)/480p(60)/576i(50)/576p(50) 640x480/720x400/800x600/1024x768/1280x768/1280x1024/1366x768
SDI Input Signal: SMPTE-425M-A/B
1080p(60/59.94/50/30/29.97/25/24/23.98/30sF/29.97sF/25sF/24sF/23.98sF), 1080i (60/59.94/50)
SDI Input Signal: SMPTE-327M (Dual Link)
Dual HD-SDI YCbCr (4:2:2), 1080p (60/59.94/50), Dual HD-SDI YCbCr/RGB (4:2:2), 1080i (60/59.94/50), 1080p (30/29.97/25/24/24sF/23.98/23.98sF)
SDI Input Signal: SMPTE-274M
1080i (60 / 59.94 / 50)
1080p (30/29.97/25/24/24sF/23.98/23.98sF)
SDI Input Signal: SMPTE-296M
720p (60/59.94/50)
SDI Input Signal: SMPTE-260M
1035i (60/59.94)
SDI Input Signal: SMPTE-125M
480i (59.94)
SDI Input Signal: ITU-R BT.656
576i (50)
SDI Input Signal: 2K Format
2048 x 1080p (24/24sF/23.98/23.98sF
Audio IN
Embedded Audio / Analog stereo (Phone Jack)
Audio OUT
Analog stereo (Phone Jack) /Internal Speaker (Mixed Mono)
Power
DC 24V, AAC 100~240V
Power Consumption (Approx.)
83 Watts(Typ.)
Operating Temperature
0°C to 45°C (32°F to 113°F )
Storage Temperature
-20°C to 60°C (-4°F to 140°F )
Dimensions (L x W x H)
Main Body: 578 x 392 x 98.6mm / 22.76 x 15.43 x 3.88"
With stand : 611.6 x 419.8 x 150mm / 24.1 x 16.5 x 5.9"
Weight
11.8 Kg / 26.01 lbs
Mfr #
LEM-250A
SKU
TLLEM250A
