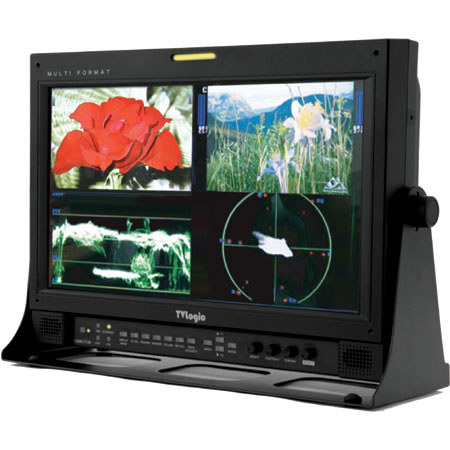

TVLogic LQM-171W 17" Multi-Format Quad-Split LCD Monitor
TVLogic

TVLogic LQM-171W 17" Multi-Format Quad-Split LCD Monitor, 1366 X 768 Resolution, 4 HD/SD SDI Input

SKU: TLLQM171W MFR: LQM-171W
What's Included
What's Included With This Item:
  • TVLogic LQM-171W 17" Multi-Format Quad-Split LCD Monitor
  • AC Power Cord
  • NDF Screw
  • TVLogic Warranty
Write a Review
Ways to Save
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 / 212-741-0052

Our Price

$4,995.00
Free Shipping (USA)
Qty:

Add to Wishlist
OverviewFeaturesTech Specs
Its never too late...Click by 8! Same day shipping.

About the TVLogic LQM-171W

The TVLogic LQM-171W is a 17" LCD quad split monitor which can display 4 X HD/SD SDI or Analog composite input signals. It has various display modes with built-in waveform, vectorscope displays, Time code display, UMD, Closed Caption, Audio disembedder and speaker output and it also can be auto color calibrated by TVLogic's color calibration utility.

TVLogic LQM-171W Includes

  • TVLogic LQM-171W 17" Multi-Format Quad-Split LCD Monitor
  • AC Power Cord
  • NDF Screw
  • TVLogic Warranty

TVLogic LQM-171W Features

  • 1366 x 768 resolution with High Contrast 900:1
  • 4 x HD/SD SDI, Analog Composite auto-detect inputs
  • 1 x HD/SD SDI Output (Selected input through-out)
  • Precision Waveform & Vector scope
  • Audio Disembedder & Speaker output
  • Embedded audio level meter & Time code display
  • UMD display & Closed Caption display
  • Wide variety of marker & safety areas
  • User programmable Function keys (F1, F2)
  • Remote control function using RS422 & GPIO
  • Remote control & update using Ethernet
  • Support TVLogic Color Calibration Utility for proper color alignment

TVLogic LQM-171W Specifications

Input 4 X BNC: SDI A/B/C/D Channel Input
Analog Composite A/B/C/D Channel Input
(Shares BNC with SDI input)
Output 1 X BNC: SDI A/B/C/D Channel Selected Output
Analog Composite AD Converted Output
Input Signal Analog: Composite
HD-SDI: 1.485Gbps
SD-SDI: 270Mbps
Analog Input Composite: 1.0Vpp (With Sync)
SDI Input Signal Formats SMPTE-274M: 1080i (60 / 59.94 / 50); 1080p (30 / 29.97 / 25 / 24 / 24sF / 23.98 / 23.98sF)
SMPTE-296M: 720p (60 / 59.94 / 50)
SMPTE-260M: 1035i (60 / 59.94)
SMPTE-125M: 480i (59.94)
ITU-R BT.656: 576i (50)
Audio Input Signal Formats NTSC / PAL /PALM /PALN
Audio IN Embedded Audio
Analog stereo (Phone Jack)
Audio OUT Analog stereo (Phone Jack)/Internal Speaker (Stereo)
LCD Size 17"
Resolution 1366x768 (16:9)
Dot Pitch 0.273x0.273 mm
Color 16.7M (true), 24bit
Viewing Angle (Typical) H: 178 degrees
V: 178 degrees
Luminance of White 350cd (center)
Contrast 900:1
Display Area 372.9x209.6 mm
Power AC 100 - 240V / DC 12V / 24V
Power Consumption (Approx.) 60 Watts
Operating Temperature 0 deg.C to 40 deg.C ( 32 deg.F to 104 deg.F )
Storage Temperature -20 deg.C to +60 deg.C (-4 deg.F to 140 deg.F )
Dimensions Without stand: 427 x 310 x 90.5mm (16.8 x 12.2 x 3.6")
With stand: 474 x 327.8 x 150mm (18.7 x 12.9 x 6")
Weight 7.2 Kg / 15.87 lb
