TVLogic LVM-091W-M 9" Widescreen Multi-Format Broadcast LCD Monitor, 960x540 Resolution, 1:1 Pixel Mapping Function

SKU: TLLVM091WM MFR: LVM-091W-M
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$3,295.00
Free Shipping
Qty:

Add to Wishlist

About the TVLogic LVM-091W-M

Whether your application is broadcast, OB van or camera assist the TVLogic LVM-091W-M combines a lightning fast 9" LCD panel ({5 ms) with multi-format capability (HD/SD-SDI, composite, component, YC and DVI with HDCP inputs) built-in waveform/vectorscope speakers with volume control and all in a die-case aluminum case. Camera/viewfinder features include flip mode, mirror mode, built-in battery and camera mounts.

TVLogic LVM-091W-M Includes

  • TVLogic LVM-091W-M 9" Widescreen Multi-Format Broadcast LCD Monitor
  • AC Power Cord
  • DC Power Adaptor
  • Camera Mount
  • Handle
  • TVLogic Warranty

TVLogic LVM-091W-M Features

  • 9" Wide Screen (960 x 540 pixels) OCB panel
  • Ultra-Fast Response Time
  • Wide 170-degree Viewing Angle
  • Remote (RJ45)
  • Embedded Audio Level Meters (16 Ch)
  • Waveform (SDI)
  • Vector Scope (SDI)
  • Aluminum Die-cast Case
  • Timecode Display
  • UMD
  • V-mount for battery powered operation
  • Closed Caption: CEA-608/708 (SDI)
  • 1:1 Pixel Mapping Function
  • Highlight Focus Assist Function
  • Y/C Error Check Function (SDI)
  • Audio Disembedder & Speakers

TVLogic LVM-091W-M Specifications

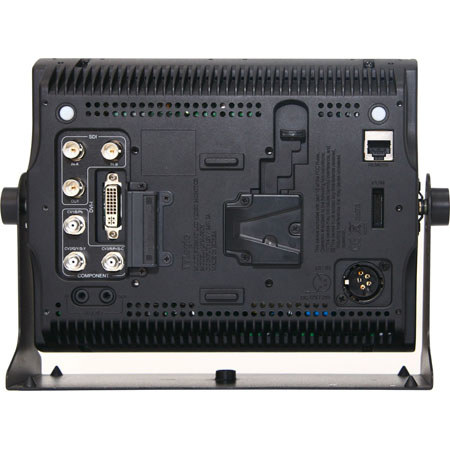

Input 1 X DVI-I: DVI IN / VGA IN
3 X BNC: Analog Input
2 X BNC: SDI A/B Channel Input
Output 1 X BNC: SDI A/B Selected Channel Output (Active Through-Out)
Input Signal Analog: Composite / S-Video / Component / RGB
HD-SDI: 1.485Gb/s
SD-SDI: 270Mbps
DVI-Analog: 640x480/800x600/1024x768/1280x1024/720x400
DVI-Digital (Graphic): 640x480/800x600/1024x768/1280x768/1280x1024/720x400
DVI-Digital (Video): 1080p (24/25/30/50/60)/1080i (50/60)/720p (50/60)/480i (60)/ 480p (60)/576i (50)/576p (50)
Analog Input Composite: 1.0Vpp (With Sync)
S-Video: 1.0Vpp (Y With Sync), 0.286 Vpp (C)
Component: 1.0Vpp (Y With Sync), 0.7 Vpp (Pb, Pr)
RGB: 1.0Vpp (G With Sync), 0.7 Vpp (B, R)
SDI Input Signal Formats SMPTE-274M: 1080i (60 / 59.94 / 50); 1080p (30/29.97/25/24/24sF/23.98/23.98sF)
SMPTE-296M: 720p (60 / 59.94 / 50)
SMPTE-260M: 1035i (60 / 59.94)
SMPTE-125M: 480i (59.94)
ITU-R BT.656: 576i (50)
2K Format: 2048 x 1080p (24/24sF/23.98/23.98sF)
Audio IN Embedded Audio / Analog stereo (Phone Jack)
Audio OUT Analog stereo (Phone Jack) / Internal Speaker (Stereo)
LCD Size 9"
Resolution 960 x 540 (16:9)
Dot Pitch 0.207 x 0.207 mm
Color 16.7M (true), 24bit
Viewing Angle (Typical) H: 170 degrees
V: 170 degrees
Luminance of White 350cd (center)
Contrast 350:1
Display Area 196.8 x 118.08 mm
Power 12V/24V DC
Power Consumption (Approx.) 24 Watts
Operating Temperature -10 deg.C to 50 deg.C (14 deg.F to 122 deg.F )
Storage Temperature -20 deg.C to 60 deg.C (-4 deg.F to 140 deg.F )
Dimensions Without Stand: 223 x 175 x 70mm (8.8 x 6.9 x 2.8")
With stand: 260 x 194.2 x 100 mm(10.2 x 7.7 x 3.9")
Weight 2.5 kg / 5.51 lb
