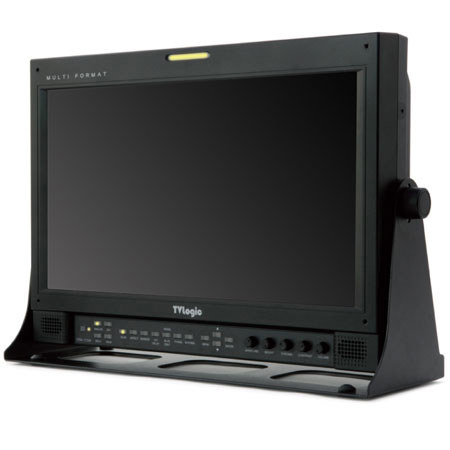

TVLogic LVM-173W-3G 17" Multi-Format Broadcast 3G LCD Monitor, 1366x768 Resolution, 2 HD/SD SDI Inputs

SKU: TLLVM173W3G MFR: LVM-173W-3G
Temporarily On Backorder - Although this item is temporarily on Backorder, you can order it now and it will ship as soon as it arrives. Your card will only be charged once item is shipped.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500

$3,495.00 List Price

Our Price

$3,250.00
Free Expedited Shipping
Qty:
Add to Wishlist

About the TVLogic LVM-173W-3G

The TVLogic LVM-173W-3G 17" Multi-Format Broadcast 3G LCD Monitor features a true 16:9 Aspect Ratio LCD panel with 12-bit video processing performance allowing for faithful reproduction of interlaced video and unparalleled scaling performance. Multi-Format and standard Dual-Link/3G support help to make this unit suitable for the most demanding applications.

TVLogic LVM-173W-3G Includes

  • TVLogic LVM-173W-3G 17" Multi-Format Broadcast 3G LCD Monitor
  • AC Power Cord
  • NDF Screw
  • TVLogic Warranty

TVLogic LVM-173W-3G Features

  • 1366 x 768 Resolution
  • 900:1 Contrast Ratio
  • 2 x HD/SD SDI inputs
  • 2 x HD/SD through-out
  • 1 x DVI-I input, 1 x HDMI input (W/HDCP)
  • Analogue Component/Composite/S-Video/RGB Inputs
  • 1:1 pixel mapping modes for SD/HD
  • Audio Disembedder & Speakers
  • Supports TVLogic Color Calibration Utility for proper color alignment 3G/Dual-Link 4:4:4 and 1080p/60 supported
  • Waveform
  • Vector Scope
  • Timecode Display
  • UMD
  • Closed Caption: CEA-608/708
  • Embedded Audio Level Meter (16 Ch)
  • Highlight Focus Assist Function
  • PBP Support

TVLogic LVM-173W-3G Specifications

Input 1 X DVI-I: DVI IN / VGA IN
1 X HDMI: HDMI Input
3 X BNC: Analog Input
2 X BNC: SDI A/B Channel Input
Output 3 X BNC: Analog Loop Through Output
2 X BNC: SDI A/B Channel Output
Input Signal Analog: Composite / S-Video / Component / RGB
HD-SDI: 1.485Gb/s
SD-SDI: 270Mbps
HDMI: 720p / 1080i & VESA / IBM Modes
DVI-Analog: 640x480/800x600/1024x768/1280x768/1280x1024/1366x768/720x400
DVI-Digital (Graphic): 640x480/800x600/1024x768/1280x768/1280x1024/720x400
DVI-Digital (Video): 1080p (24/25/30/50/60)/1080i (50/60)/720p (50/60)/480i (60)/480p (60)/576i (50)/576p (50)
Analog Input Composite: 1.0Vpp (With Sync)
S-Video: 1.0Vpp (Y With Sync), 0.286 Vpp (C)
Component: 1.0Vpp (Y With Sync), 0.7 Vpp (Pb, Pr)
RGB: 1.0Vpp (G With Sync), 0.7 Vpp (B, R)
SDI Input Signal Formats 1 SMPTE-425M-A/B: 1080i (60/59.94/50); 1080p (60/59.94/50/30/29.97/25/24/23.98/30sF/29.97sF/25sF/24sF/23.98sF)
SMPTE-274M: 1080i (60 / 59.94 / 50); 1080p (30 / 29.97 / 25 / 24 / 24sF / 23.98 / 23.98sF)
SMPTE-296M: 720p (60 / 59.94 / 50)
SMPTE-372M: Dual HD-SDI YPbPr (4:2:2): 1080p (6 0 / 5 9.94 / 50)
Dual HD-SDI YPbPr /RGB (4:4:4): 1080i (60 / 5 9.9 4 / 50); 1080p (30 / 29.97 / 25 / 24 / 24sF /23.98 / 23.98sF)
SDI Input Signal Formats 2 SMPTE-260M: 1035i (60 / 59.94)
SMPTE-125M: 480i (59.94)
ITU-R BT.656: 576i (50)
2K Format: 2048 x 1080p (24/24sF/23.98/23.98sF)
Audio IN Embedded Audio / Analog stereo (Phone Jack)
Audio OUT Analog stereo (Phone Jack) / Internal Speaker (Stereo)
LCD Size 17"
Resolution 1366x768 (16:9)
Dot Pitch 0.273x0.273 mm
Color 16.7M (true), 24bit
Viewing Angle (Typical) H: 178 degrees
V: 178 degrees
Luminance of White 350cd (center)
Contrast 900:1
Display Area 372.9x209.6 mm
Power AC 100 - 240V / DC 12V / DC 24V
Power Consumption (Approx.) 60 Watts
Operating Temperature 0 deg.C to 40 deg.C ( 32 deg.F to 104 deg.F )
Storage Temperature -20 deg.C to +60 deg.C (-4 deg.F to 140 deg.F )
Dimensions Without stand: 427 x 310 x 90.5mm (16.8 x 12.2 x 3.6")
With stand: 474 x 327.8 x 150mm (18.7 x 12.9 x 6")
Weight 7.1 kg / 15.65 lb
