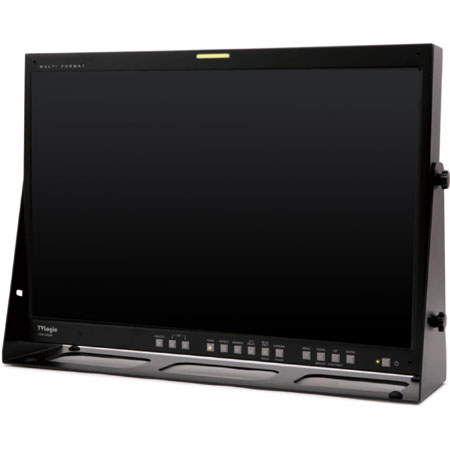

TVLogic LVM-243W-3G 24" HD Multi-Format Broadcast 3G LCD Monitor
TVLogic

TVLogic LVM-243W-3G 24" HD Multi-Format Broadcast 3G LCD Monitor, 1920x1080 Native HD Resolution, 2 HD/SD SDI Inputs

SKU: TLLVM243W3G MFR: LVM-243W-3G
What's Included
What's Included With This Item:
  • TVLogic LVM-243W-3G 24" HD Multi-Format Broadcast 3G LCD Monitor
  • AC Power Cord
  • NDF Screw
  • TVLogic Warranty
Write a Review
Ways to Save
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 / 212-741-0052

Our Price

$6,150.00
Free Shipping (USA)
Qty:

Add to Wishlist
OverviewFeaturesTech Specs
Its never too late...Click by 8! Same day shipping.

About the TVLogic LVM-243W-3G

The TVLogic LVM-243W-3G is a 24" native 1920 x 1080 display with multi-format inputs including 3G/Dual-Link HD-SDI, CC decoding, built-in waveform and vectorscope, audio demuxing, on-screen audio level meter and various scan modes.

TVLogic LVM-243W-3G Includes

  • TVLogic LVM-243W-3G 24" HD Multi-Format Broadcast 3G LCD Monitor
  • AC Power Cord
  • NDF Screw
  • TVLogic Warranty

TVLogic LVM-243W-3G Features

  • 1920 x 1080 Native HD Resolution
  • 800:1 Contrast Ratio
  • 2 x HD/SD SDI inputs
  • 2 x HD/SD through-out
  • 1 x DVI-I input, 1 x HDMI input (W/HDCP)
  • Analogue Component/Composite/S-Video/RGB Inputs
  • 1:1 pixel mapping modes for SD/HD
  • Audio Disembedder & Speakers
  • Supports TVLogic Color Calibration Utility for proper color alignment 3G/Dual-Link 4:4:4 and 1080p 60 support
  • Waveform
  • Vector Scope
  • Timecode Display
  • UMD
  • Closed Caption: CEA-608/708
  • Embedded Audio Level Meter (16 Ch)
  • Highlight Focus Assist Function
  • PBP Support

TVLogic LVM-243W-3G Specifications

Input 1 X DVI-I: DVI IN / VGA IN
1 X HDMI: HDMI IN
3 X BNC: Analog Input
2 X BNC: SDI 2 Channel Input
Output 3 X BNC: Analog Loop Through Output
2 X BNC: SDI A/B Channel Output
Input Signal Analog: Composite / S-Video / Component / RGB
HD-SDI: 1.485Gb/s
SD-SDI: 270Mbps
HDMI: 720p / 1080i & VESA / IBM Modes
DVI-Analog: 640x480/800x600/1024x768/1280x768/1280x1024/720x400
DVI-Digital (Graphic): 640x480/800x600/1024x768/1280x768/1280x1024/720x400/1600x1200/1920x1200/1920x1080
DVI-Digital (Video): 1080p (60/59.94/50)/1080i (60/59.94/50)/720p (60/59.94/50)/ 480i (59.94)/480p (59.94)/576i (50)
Analog Input Composite: 1.0Vpp (With Sync)
S-Video: 1.0Vpp (Y With Sync), 0.286 Vpp (C)
Component: 1.0Vpp (Y With Sync), 0.7 Vpp (Pb, Pr)
RGB: 1.0Vpp (G With Sync), 0.7 Vpp (B, R)
SDI Input Signal Formats 1 SMPTE-425M-A/B: 1080i (60/59.94/50); 1080p (60/59.94/50/30/29.97/25/24/23.98/30sF/ 29.97sF/25sF/24sF/23.98sF)
SMPTE-274M: 1080i (60 / 59.94 / 50); 1080p (30 / 29.97 / 25 / 24 / 24sF / 23.98 / 23.98sF)
SMPTE-372M: Dual HD-SDI YPbPr (4:2: 2 ): 1080p (60 / 59.94 / 50)
Dual HD-SDI YPbPr/RGB (4:4:4): 1080i (60 / 59.94 / 50); 1080p (30 / 29.97 / 25 / 24 / 24sF /23.98 / 23.98sF)
SDI Input Signal Formats 2 SMPTE-260M: 1035i (60 / 59.94)
SMPTE-125M: 480i (59.94)
ITU-R BT.656: 576i (50)
2K Format: 2048 x 1080p (24/24sF/23.98/23.98sF)
Audio IN Embedded Audio / Analog stereo (Phone Jack)
Audio OUT Analog stereo (Phone Jack) / Internal Speaker (Stereo)
LCD Size 24"
Resolution 1920x1200 (16:10)
Dot Pitch 0.27 mm
Color 16.7M (true), 24bit
Viewing Angle (Typical) H: 178 degrees
V: 178 degrees
Luminance of White 400cd (center)
Contrast 800:1
Display Area 518x324 mm
Power AC 100 - 240V / DC 24V
Power Consumption (Approx.) 112 Watts
Operating Temperature 0 deg.C to 35 deg.C ( 32 deg.F to 95 deg.F )
Storage Temperature -20 deg.C to +60 deg.C (-4 deg.F to 140 deg.F )
Dimensions Without stand: 552.5 x 389 x 95 mm(21.8 x 15.3 x 3.7")
With stand: 584 x 417 x 150 mm(23 x 16.4 x 5.9")
Weight 11Kg / 24.2 lb
