An Uninterruptible Power Supply (UPS) System is a device that supplies battery backup power to computers and peripherals during short power outages, and allows systems to safely shutdown during prolonged blackouts. UPS systems also correct brownouts and overvoltages, stop damaging power surges and filter disruptive line noise. |
|

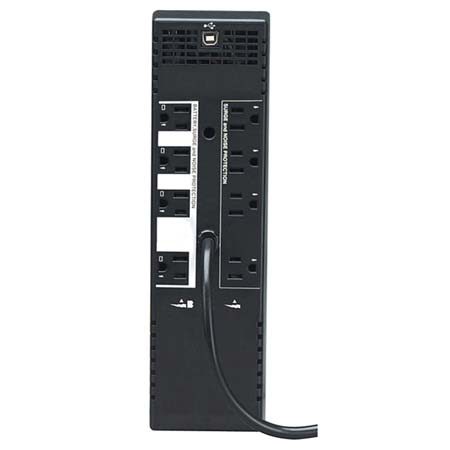

650VA line interactive tower UPS |
|
Maintains 120V nominal output over an input range of 89 to 132V |
|
Workstation / media-center optimized features supported via USB port (HID-PDC compliant) and four surge-only outlets |
|
Large backlit LCD input voltage display with dimmer switch rotates for upright visibility in shelf or tower placement |
|
Input: NEMA 5-15P (120V 15A) / Output: 8 NEMA 5-15R (120V) |
|
Tripp Lite 2 year product warranty / $200,000 Ultimate Lifetime Insurance (USA, Puerto Rico & Canada only) |
|
Typical Applications: Entry-level PCs, networked workstations, point-of-sale equipment, small businessphone systems, audio/video equipment and home theater systems. Ideal for sensitive electronic applications in areas where brownout conditions are common. |
| Voltage compatibility: | 120 |
| Frequency compatibility: | 60 |
| OUTPUT |
| Output volt amp capacity (VA): | 650 |
| Output watt capacity (watts): | 350 |
| Output nominal voltage: | 120VAC |
| Output voltage regulation: | BATTERY MODE: PWM sine wave 115V +/-5% |
| Output frequency regulation: | LINE MODE: Passes line frequency of 60Hz +/-10% BATTERY MODE: Inverter output regulated to 60Hz +/-0.5Hz |
| Outlet quantity / type: | 8 NEMA 5-15R |
| INPUT |
| Maximum input amps: | 12A |
| Input connection type: | NEMA 5-15P (right-angle plug) |
| Input cord length: | 6 ft./1.8 m |
| Recommended electrical service: | 120V 15A |
| BATTERY |
| Full load runtime: | 3.5 min. (650VA/350W) |
| Half load runtime: | 12 min. (325VA /175W) |
| DC system voltage: | 12VDC |
| Typical battery lifespan: | 4-6 years (depending on usage) |
| Battery recharge rate: | 2-8 hours to 90% |
| LEDS ALARMS & SWITCHES |
| Front panel LEDs: | Front panel LCD screen with blue backlight and dimmer switch offers continuous input line voltage data, plus UPS status information on line power status, battery power status, battery charge level and voltage regulation operation |
| Alarms: | Audible alarm with 15-second delay sounds to indicate loss of utility power. Alarm can be silenced by pressing front panel alarm cancel button. Once silenced, alarm will re-sound when approximately 2 minutes runtime remain. |
| Switches: | Includes 2 front panel switches, one main on/off power switch and one dual-function alarm cancel/self test button |
| SURGE / NOISE SUPPRESSION | as follows: |
| AC surge suppression: | 480 joules |
| AC suppression response time: | Instantaneous |
| Dataline suppression: | - |
| EMI / RFI AC noise suppression: | Yes |
| PHYSICAL |
| Unit weight (lbs): | 14.6 |
| Unit Dimensions (HWD/in): | Tower format: 12 x 3.5 x 6.5 / Rackmount Shelf format: 3.5 x 12 x 6.5 |
| ENVIRONMENTAL |
| Operating Temperature: | +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius |
| Storage Temperature: | +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius |
| Relative Humidity: | 0 to 95%, non-condensing |
| COMMUNICATIONS |
| Network monitoring port: | USB (HID) |
| Software and cabling included: | PowerAlert Software available for free download at www.tripplite.com. USB cable is user supplied. |
| WatchDog compatibility: | Yes, compatible with Tripp Lite's Watchdog system service to restore operation to locked equipment through soft reboot of application/OS or hard power off/on reboot of connected equipment; ideal for unattended kiosk applications |
| LINE / BATTERY TRANSFER |
| Transfr time frm/linepower to batt mode: | 2-4 milliseconds |
| Low voltage transfer to battery power: | Switches to battery power as line voltage decreases to 89V or lower switches back to AC mode as line voltage increases to 94V or higher |
| High voltage transfer to battery power: | Switches to battery mode as line voltage increases to 139V or higher, switches back to AC mode as line voltage decreases to 135V or lower |
| Certifications: | Tested to UL1778 (USA), CSA C22.2 No. 107.3 (Canada), NOM (Mexico), Class B (emissions) |
| WARRANTY |
| Trii Lite Product warranty: | Tripp Lite 2-year product warranty |
| Connected equipt.insurance (USA/Canada): | $200,000 connected equipment insurance (USA & Canada only) contact Tripp Lite |
| Cold Start: | Yes, inverter can be cold started to enable temporary AC output during a power failure |
| Appearance: | Attractive black color scheme |
| Other | Material of construction: ABS
Form factors supported: Rack/Tower
Cooling method: Convection
System overview: 650VA line-interactive UPS, large LCD volt meter and UPS function indicators, plus UPS and surge-only outlets |
| Note: | VOLTAGE REGULATION:
Voltage regulation description: Line-interactive voltage regulation corrects brownouts as low as 89V back to usable values
Brownout correction: Input voltages between 89V and 104V are boosted by 14% |
| | |
