TVLogic

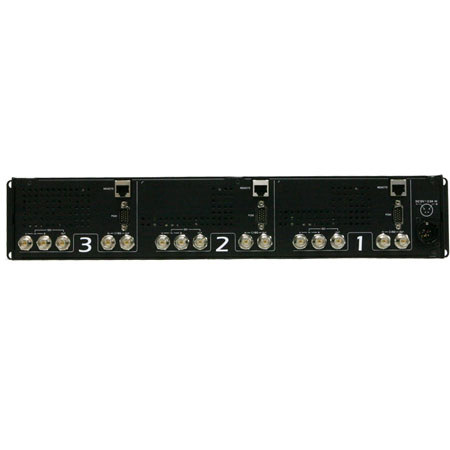

TVLogic PRM-503A 5" 800x480 Multi-Format Triple LCD Rack Mount, HD/SD-SDI 2 Input

SKU: TLPRM503A MFR: PRM-503A
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$4,295.00 List Price

Our Price

$3,865.50
Free Shipping
Qty:

Add to Wishlist

About the TVLogic PRM-503A

The TVLogic PRM-503A consists of 3 x 5" 800 x 480 LED backlit LCD panels with 90-degree tilt range. Input selection and full PRM series feature-set menu are accessed via front panel. I/O includes two SDI in with one SDI loop out, one CVBS in, one CVBS loop out, RJ11 remote control and serial firmware upgrade port.

TVLogic PRM-503A Includes

  • TVLogic PRM-503A 5" 800x480 Multi-Format Triple LCD Rack Mount
  • AC Power Cord
  • DC Power Adaptor
  • TVLogic Warranty

TVLogic PRM-503A Features

  • Multi-Format Support (480i, 576i, 720P, 1080i, 1080P, 1080Psf, 2K)
  • 3 High-Resolution (800 x 480) 5" 16.7 megapixel Wide Screens
  • Small Footprint occupies only 2RU of a standard EIA 19" rack
  • Assignable Remote Control
  • Closed Caption: CEA-608/708
  • AFD
  • H/V Delay
  • Blue Only & Monochrome
  • Wide Variety of Marker & Safety Area including user defined Marker
  • HD/SD-SDI 2 Input & Active Loop Through
  • SDI Input Format Auto Detect
  • Composite Input & Loop Through
  • Composite Input Format Auto Detect
  • Source ID Function (User Defined in OSD Function)
  • Embedded Audio Level Meter (8 Ch)
  • Timecode Display
  • WaveForm/Vector Scope (Only SDI)
  • WaveForm/Vector Scope Full Size, Small Size Select

TVLogic PRM-503A Specifications

Number of screens 3
LCD Size 5 inch / 108 (H) X 64.8 (V) mm
Resolution 800 x 480 (15: 9)
Pixel Pitch 0.135 mm
Color Depth 16.7M (True 8bit)
Viewing Angle (Typ.) 170deg.(H) / 170deg.(V)
Luminance (Max.) 300cd/m2 (center)
Contrast Ratio 600:1
Input (1 Screen) 2 x BNC: SDI 2 Channel Inputs
1 x BNC: CVBS Input
Output (1 Screen) 2 x BNC: SDI Channel (Active Loop Through)
2 x BNC: CVBS Output (Internal Buffer Output)
Input Signal: Analog CVBS (1.0Vpp with Sync)
Input Signal: HD-SDI 1.485Gbps
Input Signal: SD-SDI 270Mbps
SDI Input Signal Formats SMPTE-274M: 1080i (60 / 59.94 / 50); 1080P (30/29.97/25/24/24sF/23.98/23.98sF)
SMPTE-296M: 720P (23.98/24/25/29.97/30/50/59.94/60)
SMPTE-260M: 1035i (60/59.94)
SMPTE-125M: 480i (59.94)
ITU-R BT.656: 576i (50)
2K Format: 2048 x 1080 (23.98psf/24psf/23.98p/24p)
Input Signal CVBS: NTSC (525 / 59.94i), PAL (625 / 50i), PAL-M (525 /59.94i)
Power DC 12V / 2.4 A
Power Consumption(Approx.) 24 Watts
Operating Temperature 0 deg.C to 40 deg.C (32 deg.F to 104 deg.F )
Storage Temperature -30 deg.C to 50 deg.C (-22 deg.F to 122 deg.F )
Dimensions 480 x 87 x 85 mm / 18.89 x 3.42 x 3.34" -2RU
Weight 2.5 Kg / 5.5 lbs
