TVLogic PRM-702A 7" 800x480 Multi-Format Dual LCD Rack Mount
TVLogic

TVLogic PRM-702A 7" 800x480 Multi-Format Dual LCD Rack Mount, HD/SD-SDI 2 Input

SKU: TLPRM702A MFR: PRM-702A
What's Included
What's Included With This Item:
  • TVLogic PRM-702A 7" 800x480 Multi-Format Dual LCD Rack Mount
  • AC Power Cord
  • DC Power Adaptor
  • TVLogic Warranty
Write a Review
Ways to Save
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 / 212-741-0052

Our Price

$3,295.00
Free Shipping (USA)
Qty:

Add to Wishlist
OverviewFeaturesTech Specs
Its never too late...Click by 8! Same day shipping.

About the TVLogic PRM-702A

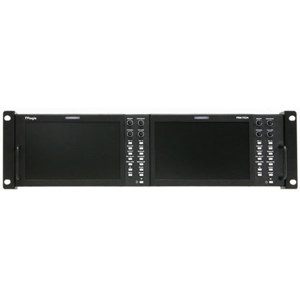

The TVLogic PRM-702A features two 7" 800 x 480 with LED backlight LCD panels with 90-degree tilt range. The 3RU PRM-702A provides individual controls in the front panel for brightness, contrast, chroma, SDI A/B select, analog, aspect select (16:9, 4:3), H/V delay, embedded audio level meter, various scan modes (over, zero, 1:1), user selectable marker, blue/mono, waveform/vectorscope and the PRM full feature/setup menu.

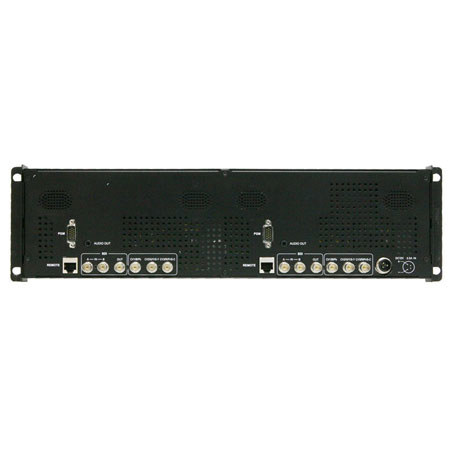

Inputs include two SDI with active loop through plus component analog, S-video, RGB and three composite analog inputs, RJ11 remote control and serial firmware upgrade port. Outputs include one SDI and one stereo mini audio out.

TVLogic PRM-702A Includes

  • TVLogic PRM-702A 7" 800x480 Multi-Format Dual LCD Rack Mount
  • AC Power Cord
  • DC Power Adaptor
  • TVLogic Warranty

TVLogic PRM-702A Features

  • Multi-Format Support (480i, 576i, 720P, 1080i, 1080P, 1080Psf, 2K)
  • 2x HD/SD-SDI inputs (Auto Detecting/Switching) with Active Loop Through
  • Dual High Definition 7" (800 x 480) 16.7 megapixel Wide Screen
  • Varieties of Analog Input (Composite, S-Video, YPbPr, RGB)
  • 3RU (standard EIA 19" rack)
  • Assignable Remote Control
  • Closed Caption: CEA-608/708
  • AFD
  • H/V Delay mode
  • Analog Stereo Audio Out (Phone Jack)
  • Internal Left & Right Speaker (2 x 1 W)
  • Blue Only & Monochrome
  • Markers & Safety Areas including user defined Markers
  • Source ID Function (User Defined in OSD Function)
  • Embedded Audio Level Meter (8 Ch)
  • Timecode Display (VITC & LTC)
  • Selectable Full & Small Size, WaveForm/Vector Scope (SDI only)

TVLogic PRM-702A Specifications

Number of Screens 2
LCD Size 7 inch / 152.4 (H) X 91.44 (V) mm
Resolution 800 x 480 (15: 9)
Pixel Pitch 0.1905 mm
Color Depth 16.7M (True 8bit)
Viewing Angle (Typ.) 140deg.(H) / 140deg.(V)
Luminance (Max.) 350cd/m2 (center)
Contrast Ratio 700:1
Display Area 152(H) x 91(V) mm
Input (1 Screen) 3 x BNC: 3 CVBS Inputs; S-Video / RGB / Component Video
2 x BNC: SDI 2 Channel Inputs
1 x BNC: CVBS Input
Output (1 Screen) 2 x BNC: SDI Channel / CVBS Outputs
1 x Phone Jack: Analog Stereo Audio Out
2 x Speaker: 2 X 1W
Input Signal: Analog CVBS (1.0Vpp with Sync)
S-Video(1.0Vpp Y with Sync, 0.268Vpp [c])
Component(1.0Vpp Y with Sync, 0.7Vpp [Pb, Pr])
RGB(1.0Vpp G with Sync, 0.7Vpp [B.R])
Input Signal: HD-SDI 1.485Gbps
Input Signal: SD-SDI 270Mbps
SDI Input Signal Formats SMPTE-274M: 1080i (60 / 59.94 / 50); 1080P (30/29.97/25/24/24sF/23.98/23.98sF)
SMPTE-296M: 720P (23.98/24/25/29.97/30/50/59.94/60)
SMPTE-260M: 1035i (60/59.94)
SMPTE-125M: 480i (59.94)
ITU-R BT.656: 576i (50)
2K Format: 2048 x 1080 (23.98psf/24psf/23.98p/24p)
CVBS Input NTSC (525 / 59.94i), PAL (625 / 50i), PAL-M (525 / 59.94i)
S-Video Input NTSC (525 / 59.94i), PAL (625 / 50i), PAL-M (525 / 59.94i)
Component, RGB Input 480i (59.94), 576i (50), 480P (59.94), 576P (50)
1080i (60/59.94/50)
1080P (30/29.97/25/24/24sF/23.98/23.98sF)
720P (50/59.94/60)
Power 12V DC. 3A
Power Consumption (Approx.) 36 Watts
Operating Temperature 0 deg.C to 40 deg.C (32 deg.F to 104 deg.F )
Storage Temperature -30 deg.C to 50 deg.C (-22 deg.F to 122 deg.F )
Dimensions 480 x 126 x 45 mm/ 18.89 x 4.96 x 1.78" -3RU
Weight 3.2 Kg / 7.05 lbs
