TVLogic

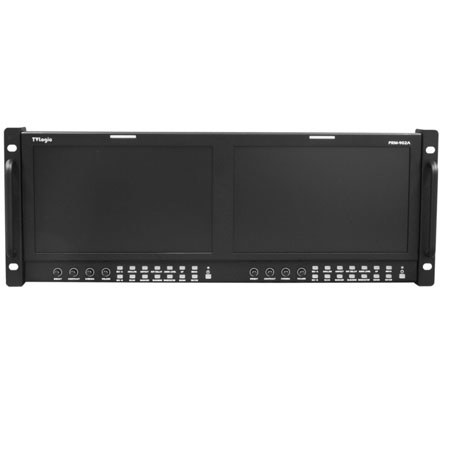

TVLogic PRM-902AS Dual 9" 800x480 Multi-Format Dual LCD Rack Mount, SD-SDI, Component and Composite Inputs, 4RU x 19" Rack, Embedded Audio Metering, Speaker Out, Waveform/Vector Scope (SD-SDI only)

SKU: TLPRM902AS MFR: PRM-902AS
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$2,795.00 List Price

Our Price

$2,515.50
Free Shipping
Qty:
Add to Wishlist

About the TVLogic PRM-902AS

Featuring two 9" 800 x 480 CCFL backlight LCD panels with 90-degree tilt range, the TVLogic 4RU PRM-902AS provides front panel individual control of brightness, contrast, chroma, SDI A/B select, analog, aspect select (16:9, 4:3), H/V delay, embedded audio level meter, various scan modes (over, zero, 1:1), user selectable marker, blue/mono, waveform/vectorscope and the PRM full feature/setup menu. Inputs include two SDI with active loop through plus component analog, S-video, RGB, three composite analog inputs, RJ11 remote control and serial firmware upgrade port. Outputs include one SDI and one stereo mini audio out.

TVLogic PRM-902AS Includes

  • TVLogic PRM-902AS 9" 800x480 Multi-Format Dual LCD Rack Mount
  • AC Power Cord
  • DC Power Adaptor
  • TVLogic Warranty

TVLogic PRM-902AS Features

  • 2x SD-SDI inputs (Auto Detecting/Switching) with Active Loop Through
  • Dual High Definition 9" (800 x 480) 16.7 megapixel Wide Screen
  • Varieties of Analog Input (Composite, S-Video, YPbPr, RGB)
  • 4RU of a standard EIA 19" rack
  • Assignable Remote Control
  • Closed Caption: CEA-608/708
  • AFD
  • H/V Delay mode
  • Analog Stereo Audio Out (Phone Jack)
  • Internal Left & Right Speaker (2 x 1 W)
  • Blue Only & Monochrome
  • Markers & Safety Areas including user defined Markers
  • Source ID Function (User Defined in OSD Function)
  • Embedded Audio Level Meter (8 Ch)
  • Timecode Display (VITC & LTC)
  • Selectable Full & Small Size
  • WaveForm/Vector Scope (SDI only)

TVLogic PRM-902AS Specifications

No. of Screens 2
LCD Size 9 inch / 196.8 (H) X 118.08 (V) mm
Resolution 800 x 480 (15: 9)
Pixel Pitch 0.246 mm
Color Depth 16.7M (True 8bit)
Viewing Angle (Typ.) 160deg.(H) / 140deg.(V)
Luminance (Max.) 600cd/m2 (center)
Contrast Ratio 600:1
Input (1 Screen) 3 x BNC: 3 Analog Inputs (S-Video / RGB / Component Video)
2 x BNC: SDI 2 Channel Inputs
1 x BNC: CVBS Input
Output (1 Screen) 2 x BNC: SDI Channel / CVBS Outputs
1 x Phone Jack: Analog Stereo Audio Out
2 x Speaker: 2 X 1W
Input Signal: Analog CVBS (1.0Vpp with Sync)
S-Video (1.0Vpp Y with Sync, 0.268Vpp [c])
Component (1.0Vpp Y with Sync, 0.7Vpp [Pb, Pr])
RGB(1.0Vpp G with Sync, 0.7Vpp [B.R])
Input Signal: SD-SDI 270Mbps
CVBS Input NTSC (525 / 59.94i), PAL (625 / 50i), PAL-M (525 / 59.94i)
S-Video Input NTSC (525 / 59.94i), PAL (625 / 50i), PAL-M (525 / 59.94i)
Power DC 12V / 3A
Power Consumption (Approx.) 36 Watts
Operating Temperature 0 deg.C to 40 deg.C (32 deg.F to 104 deg.F )
Storage Temperature -30 deg.C to 50 deg.C (-22 deg.F to 122 deg.F )
Dimensions 480 x 176 x 63 mm / 18.89 x 6.92 x 2.48" -4RU
Weight 4.1 Kg / 9.0 lbs
