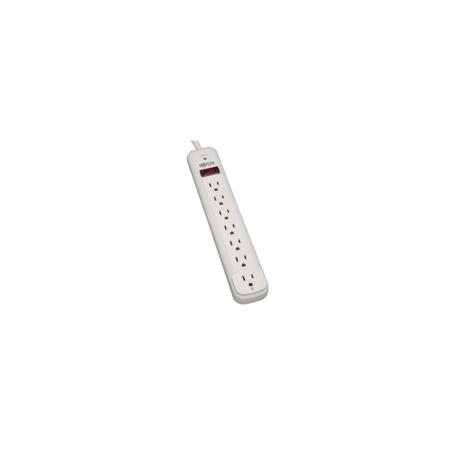

Tripp Lite 7 Outlet, 12ft Cord Protect It Surge Suppressor
Tripp Lite

Tripp Lite 7 Outlet, 12' Cord Protect It Surge Suppressor, 1080 Joules

SKU: TLTLP712 MFR: TLP712
Write a Review
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 / 212-741-0052

Our Price

$17.99
Qty:

Add to Wishlist
OverviewFeaturesTech Specs
Its never too late...Click by 8! Same day shipping.

About this item

The Tripp Lite 7 Outlet, 12ft Cord Protect It Surge Suppressor offers economical AC surge suppression for protection of workstations, desktop PCs, telecom systems and other sensitive electronics. AC surge suppression shields connected equipment from damage and performance problems due to transient surges.

The Protect It Surge Suppressor offers 7 total outlets, 12 foot cord and diagnostic LED to confirm surge suppression is present. AC suppression rated at 1080 joules shields equipment from surges and line noise. Attractive white suppressor housing with keyhole mounting slots and 1 designated transformer plug outlet offer convenient protection of desktop computer equipment and accessories.

Key Features

  • EMI/RFI noise filtering
  • Can accommodate 1 transformer without blocking remaining outlets
  • Diagnostic LEDs indicate protection present & ground present
  • Keyhole supports for wall mounting

Technical Specs

Frequency compatibility 50 / 60 Hz
Output watts 1800W
Circuit Breaker 15 amps
Outlet quantity / type 7 NEMA 5-15R
Transformer accommodation Supports 1 large transformer plug accessory without covering remaining outlets, accepts up to 4 transformers total
Outlet orientation Single row
Nominal Input Voltage(s) Supported 120V AC
Recommended Electrical Service 120V (110-125V)
Input connection type NEMA 5-15P
Input cord length 12ft / 3.66m
Input cord gauge, type 14 gauge, SJT
Voltage compatibility 120 VAC
Maximum Surge 72000 Amps
Switches Combination AC circuit breaker and 2 position red illuminated on/off power switch
Diagnostic LEDs Built-in LED confirms suppressor "protection present" (green) status
AC suppression joule rating 1080
AC suppression response time < 1 ns
Protection modes Includes full normal mode (H-N) and common mode (N-G / H-G) line surge suppression
Clamping voltage 150 (RMS)
UL1449 let through rating 400V
EMI / RFI filtering Up to 20 dB
Cable (Coax) Protection No
Network (Ethernet) Protection No
Material of construction Plastic
Integrated keyhole mounting tabs Keyhole mounting slots enable wall mounting
Outlets center to center measurement Distance between standard outlets = 29mm; Distance between last standard outlet and transformer outlet = 33mm
Keyhole slot center to center Distance between slots = 151mm; Distance between slot height = 24mm
UL1449 3rd Edition (AC Suppression) UL1449 3rd EDITION
NOM (Mexico) NOM
UL1363 (Power Tap) UL1363
cUL / CSA cUL
Approvals Exceeds IEEE 587 category A&B specifications
Dimensions (HxWxD) 1.32x2.05x11.69" / 3.35x5.20x29.69cm
Weight 1.76 lbs/ 0.79kg
