TVLogic

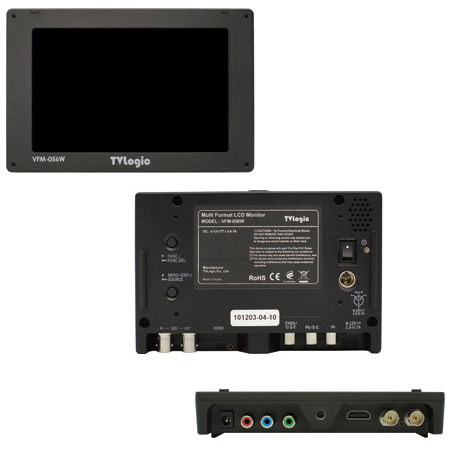

TVLogic VFM-056WP 5.6" LCD HD/SD-SDI HDMI Monitor with Waveform, 1280x800 Resolution, 500:1 Contrast Ratio, 300 cd/m2 (Center) Luminance

SKU: TLVFM056WP MFR: VFM-056WP
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$1,295.00 List Price

Our Price

$1,195.00
Free Shipping
Qty:

Add to Wishlist In Stock

About the TVLogic VFM-056WP

The TVLogic VFM-056WP 5.6" LCD 3G HD/SD-SDI HDMI Monitor with Loop-Through is a lightweight, LED backlit LCD monitor with features such as DSLR Scale, Focus Assist, Various Scan Modes, Markers, Audio Level Meter with speaker and time code display. The VFM-056WP 5.6" High-Resolution Compact LCD Monitor has a 6" x 4" x 1" lightweight magnesium-alloy case, which helps the unit weigh less than 11 oz (without battery plate). This monitor accepts multiple input formats including analog, 3G-SDI and HDMI, plus it has a HDMI direct loop out via HD-SDI (1280 x 720 59.94i/p only).

The TVLogic VFM-056W also features a DSLR scale function, this function is especially designed for some DSLR cameras whose outputs have different resolution while previewing and recording or during playback. In the case of the Canon 5D Mark II, when the record button is pressed resolution drops from 1080i in preview mode to 480p. The DSLR Scale function scales the image to 1280 x 800 (Panel Resolution) and displays it Full Screen. Various battery brackets are available for this monitor including: Canon, Sony, Panasonic and AA. The TVLogic VFM-056WP 5.6" LCD HD/SD-SDI HDMI Monitor has (4) mounting holes that are tapped to 1/4"-20, one on each side, top and bottom of the monitor's case.

TVLogic VFM-056WP Includes

  • TVLogic VFM-056WP 5.6" LCD HD/SD-SDI HDMI Monitor
  • AC Power Cord
  • DC Power Adaptor
  • TVLogic 2 Years Parts and Labor Warranty

TVLogic VFM-056WP Features

  • DSLR Scale: Function Scales SD output from a DSLR to 1280 x 800 Full Screen
  • Focus Assist (Peaking Filter): Red Color is displayed on sharp edges to enhance focus accuracy
  • Various Scan Modes: ZERO SCAN, UNDER SCAN, OVER SCAN and 1:1 PIXEL FOR PIXEL
  • Markers: Choose framing markers for CENTER, SAFETY AREA, FIT and more
  • SDI Loop Through: Feature allows your HDMI or SDI input signal to be looped through to a second display via SDI
  • Waveform/Vector Scope: Displays waveform luminance (Y Level) and Vector Scope (B-Y, R-Y on XY axis) in Y/Cb/Cr, Wide and Line modes
  • Range Error: Selected values (Y MAX, Y MIN, C MAX, C MIN) are indicated in WAVEFORM/VECTOR or Y/Cb/Cr modes
  • Y Level Check: Displays Y Level as a solid color on screen to assist in exposure adjustments

TVLogic VFM-056WP Specifications

Input: 3 X RCA Analog Input
Input: 1 X BNC 1 x 3G-SDI Channel Input
Input: 1 X HDMI HDMI Input
Output (1Screen): 1 X BNC SDI Channel (Loop Through Out)
Input Signal: Analog Composite / S-Video / Component
Input Signal: 3G-SDI 2.970Gb/s
Input Signal: HD-SDI 1.485Gbps
Input Signal: SD-SDI 270Mbps
Input Signal: HDMI 480i/480p/720p/1080i/1080p & VESA/IBM Modes
Analog Input: Composite 1.0Vpp (With Sync)
Analog Input: S-Video 1.0Vpp (Y With Sync), 0.286Vpp(C)
Analog Input: Component 1.0Vpp (Y With Sync), 0.7Vpp (Pb,Pr)
SDI Input Signal: SMPTE-425M-A/B 1080p(60/59.94/50/30/29.97/25/24/23.98/30sF/29.97sF/25sF/24sF/23.98sF), 1080i (60/59.94/50)
SDI Input Signal: SMPTE-274M 1080i (60/59.94/50)
1080p (30/29.97/25/24/24sF/23.98/23.98sF)
SDI Input Signal: SMPTE-296M 720p (60/59.94/50)
SDI Input Signal: SMPTE-260M 1035i (60/59.94)
SDI Input Signal: SMPTE-125M 480i (59.94)
SDI Input Signal: ITU-R BT.656 576i (50)
LCD: Size 5.6"
LCD: Resolution 1280 x 800
LCD: Pixel Pitch 94.5(H) x 94.5W) mm
LCD: Color 262,144(true 6bit)
LCD: Viewing Angle H: 170 degrees
V: 170 degrees
LCD: Luminance of White 300 cd/m2(Center)
LCD: Contrast 500:1
LCD: Display Area 120(H) x 75(V)mm
Audio In Embedded Audio
Audio Out Analog Stereo (Phone Jack). Internal Speaker Mixid (Mono)
Power 12V DC (6V-18V range)
Power Consumption (Approx.) 12Watts(Max)
Operating Temperature -0 deg.C to 50 deg.C (32 deg.F to 122 deg.F )
Storage Temperature -20 deg.C to 60 deg.C (-4 deg.F to 140 deg.F)
Dimensions (W x H x D) 156 x 103 x 26.5 mm / 6.14 x 4.05 x 1.04"
Weight 0.28 kg / 0.61 lbs
