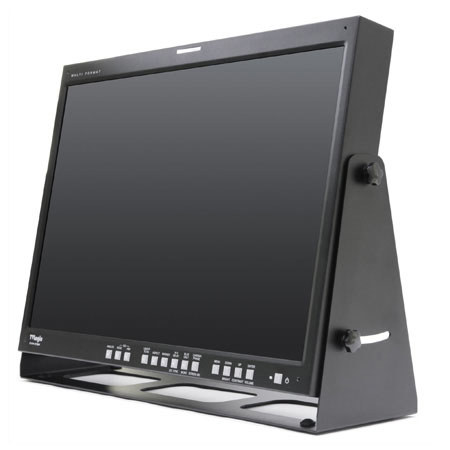

TV Logic XVM-245W 24" 10-bit Color Critical LCD Monitor, 1920x1080 Resolution, 2 HD/SD SDI Inputs

See all TV Logic items
SKU: TLXVM245W MFR: XVM-245W
TV Logic XVM-245W: Picture 1 thumbnail TV Logic XVM-245W: Picture 2 thumbnail TV Logic XVM-245W: Picture 3 thumbnail TV Logic XVM-245W: Picture 4 thumbnail TV Logic XVM-245W: Picture 5 thumbnail TV Logic XVM-245W: Picture 6 thumbnail TV Logic XVM-245W: Picture 7 thumbnail TV Logic XVM-245W: Picture 8 thumbnail TV Logic XVM-245W: Picture 9 thumbnail TV Logic XVM-245W: Picture 10 thumbnail
Made in USA

Our Price

$11,155.35
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

About TV Logic XVM-245W

The TVLogic XVM-245W utilizes a high-purity RGB Matrix LED backlight array to reproduce the most accurate color possible on an LCD. The XVM-245W meets most of EBU grade 1 specifications for color critical monitors while retaining all of the broadcast features found in the popular LVM series. The XVM-245W features an integrated 3D LUT and supports import and export of popular color grading application LUT formats.

TV Logic XVM-245W Features

  • 1920 x 1080 Native HD Resolution (Panel Resolution 1920 x 1200)
  • 10 bit - 1.07 Billion Colors Support
  • High-Purity Precision RGB Matrix LED Backlight Array
  • 2 x HD/SD SDI inputs
  • 1 x DVI-I input (W/HDCP) and 1 x HDMI input (W/HDCP)
  • Analog Component/Composite/S-Video/RGB Inputs
  • 1:1 Pixel Mapping Modes for SD/HD
  • Audio Disembedder & Speakers
  • Optional 19" Rack Mount Kit available (also VESA compatible)
  • Supports TVLogic Color Calibration Utility for proper color alignment
  • Dual-Link/3G Mode - 4:4:4/1080p/60 compatible
  • Matte Finish Panel
  • Waveform/Vector Scope (Line selectable)
  • Supports External Sync input
  • Supports 3D LUT & Adjustable Gamma (1.0 to 3.0) and user defined
  • Supports 3rd party 3D LUT formats for import and export
  • Supports Multi-point Calibration for RGB and White uniformity correction
  • Timecode Display (VITC/VTC), Dynamic UMD Display
  • Closed Caption: CEA-608/708
  • Embedded Audio Level Meter (16 Ch)

TV Logic XVM-245W Specifications

LCD Size
24"
Resolution
1920 x 1200 (16: 10)
Pixel Pitch
0.270 (H) x 0.270 (W) mm
Color
1,073,741,824 colors (true 10bit )
Viewing Angle
178deg.(H) / 178deg.(V)
Luminance of White
80 cd/m2 at Center (Max. 250cd/m2)
Contrast ratio
1000:1
Display Area
518.4(H) x 324.0(V) mm
Input
1 X DVI-I: DVI IN
3 X BNC: Analog Input
2X BNC: SDI A / B Channel Input
1 X HDMI: HDMI Input
1 X BNC: EXT SYNC INPUT
Output
3 x BNC: Analog (Passive Loop Through)
2 x BNC: SDI A/B Channel Output (Active Loop Through)
1 x BNC: External Sync. Output
Input Signal
Analog: Composite / S-Video / Component / RGB
3G-SDI: 2.970Gbps
HD-SDI: 1.485Gb/s
SD-SDI: 270Mbps
DVI: VESA/IBM Modes
HDMI: 480i/480 p/720p/1080i /1080 p& VESA/IBM Modes
Analog Input Signal Formats
Composite: 1.0Vpp (With Sync)
S-Video: 1.0Vpp (Y With Sync),0.286Vpp (C)
Component Video: 1.0Vpp (Y With Sync), 0.7Vpp (Pb, Pr)
RGB: 1.0Vpp (G With Sync), 0.7Vpp (B,R)
SDI Input Signal Formats 1
SMPTE-425M-A/B: 1080p (60/59.94/50/30/29.97/25/24/23.98/30sF/29.97sF/25sF/24sF/23.98sF) / 1080i (60/59.94/50)
SMPTE-372M (Dual Link): Dual HD-SDI YPbPr(4:2:2): 1080p(60/59.94/50)
Dual HD-SDI YPbPr/RGB(4:4:4): 1080i(60/59.94/50); 1080p(30/29.97/25/24/24sF/23.98/23.98sF)
SMPTE-274M: 1080i (60 / 59.94 / 50)
1080p (30/29.97/25/24/24sF/23.98/23.98sF)
SDI Input Signal Formats 2
SMPTE-296M: 720p (60/59.94/50)
SMPTE-260M: 1035i (60/59.94)
SMPTE-125M: 480i (59.94)
ITU-R BT.656: 576i (50)
2K Format: 2048 x 1080p (24/24sF/23.98/23.98sF)
Audio IN
Embedded Audio / Analog stereo (Phone Jack)
Audio OUT
Internal Speaker (Stereo) Analog stereo (Phone Jack)
Power
DC 24V / AC 100 - 240 V
Power Consumption (Approx.)
77 Watts( Typ.)
Operating Temperature
0 deg.C to 40 deg.C (32 deg.F to 104 deg.F )
Storage Temperature
-20 deg.C to 60 deg.C (-4 deg.F to 140 deg.F )
Dimensions
Without Stand: 552.5 x 389 x 95 mm / 21.75 x 15.31 x 3.74"
With Stand: 584 x 417 x 150 mm/ 23.00 x 16.41 x 5.90"
Weight
11 Kg / 24.2 lb
