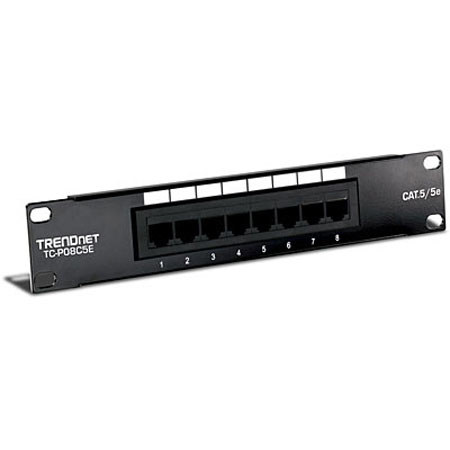

TRENDnet 8-Port Cat. 5e Unshielded Patch Panel

Please note: Although this item is temporarily out of stock, you can order it now and it will ship as soon as it arrives. Your card will only be charged once item is shipped.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

Add to Wishlist In Stock

About this item

The TRENDnet 8-Port Cat. 5e Unshielded Patch Panel is a stellar way to establish your network wiring at Gigabit speed. This 10" wide panel features a total of eight Gigabit RJ-45 Ethernet ports designed for connecting Cat. 5e Ethernet cables. It supports connections of 100MHz. Above each port is a writing space so that you can stay organized and keep track of each connection. While this product includes cable ties and nylon holders, you'll need to purchase a punchdown tool for installing it.

What's Included With This Item

  • TRENDnet 8-Port Cat. 5e Unshielded Patch Panel
  • Quick Installation Guide
  • Cable Holders and Ties
  • TRENDnet 2 Years Limited Warranty

Key Features

  • 8 x 1000Base-T Gigabit RJ-45 ports
  • Supports a 100MHz connection
  • 10 inch wide patch panel
  • Cat. 5e color coded labeling for T568A and T568B wiring schemes
  • IDC terminal blocks are compatible with 110 and Krone style connectors
  • Labels above each port Cat
  • 5e transmission performance compliant with ANSI, TIA and EIA 568 B.2 standards

Technical Specs

Wiring standards T568A and T568B
Network Media Cat. 5e
Mounting Point Retention Strength 7.7kg / 17lbs
Temperature -10deg. - 60deg.C (14deg.F - 140deg.F)
Certifications CE, FCC
Dimension (LxWxH) 254x44x30mm / 10x1.73x1.18"
Weight 205g / 7.23oz
