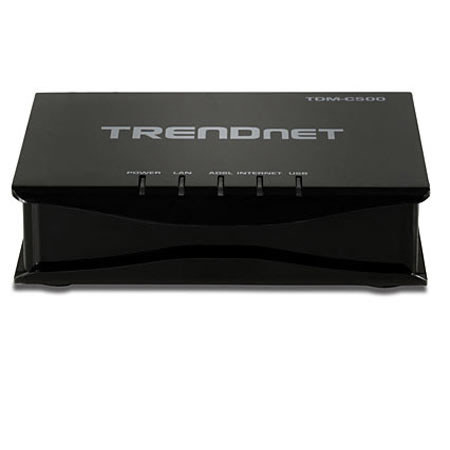

TRENDnet ADSL 2/2+ Modem Router, 10/100 Mbps Auto-MDIX RJ-45 Port, Supports upto 8 PVCs

Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500

Our Price

Free Shipping
Add to Wishlist

About this item

The TRENDnet ADSL 2/2+ Modem Router provides a modem for Internet and a high-speed router that allows multiple connections to the Internet. It supports all Internet service providers with ADSL 2, ADSL 2+, Annex A, Annex L, or Annex M networks. Installing is an easy step-by-step process. The ADSL 2/2+ Modem Router boasts of features such as LEDs that convey device status and a convenient on/off power button that protects hardware when powering down.

It also protects your data with a dual NAT and SPI firewall. You can manage access to the Internet with IP port and MAC address filtering and URL and domain name blocking controls. Additional features include a browser-based management interface, SNMP v1 and v2 support, QoS data prioritization, DMZ controls, Port Forwarding and Dynamic DNS support.

What's Included With This Item

  • TRENDnet ADSL 2/2+ Modem Router
  • Cat5 Ethernet Cable
  • 5' (1.5 m)
  • RJ-11 Telephone Cable
  • 6' (1.8 m)
  • Multi-Language Quick Installation Guide
  • CD-ROM (User's Guide)
  • Power Adapter
  • TRENDnet 3 Year Limited Warranty

Key Features

  • 1 x 10/100Mbps Auto-MDIX RJ-45 port
  • 1 x RJ-11 port
  • 1 x USB 2.0 Type B-port (male) for alternate Ethernet connection
  • On / off power button
  • Diagnostic LEDs
  • Modem: Compliant with ADSL, ADSL2 and ADSL2+ (Annex A, L and M) standards
  • Modem: Up to 24Mbps downstream and 1.2Mbps upstream Annex M is up to 3Mbps upstream
  • Modem: Compliant with PPPoE, PPPoA and IPoA connection types
  • Router: Supports up to 8 PVCs
  • Router: Compliant with SNMP v1 and v2c standards and Supports IGMP v1 and v2, port forwarding and DMZ controls
  • Router: Supports RIP, Static routing and Dynamic DNS service
  • Router: Advanced Firewall protection with Network Address Translation (NAT) and Stateful Packet Inspection (SPI)
  • Router: Internet Access Control (MAC Address, Domain, URL and IP Filtering) support
  • Router: Supports IP Quality of Service (QoS)
  • Router: Easy configuration and remote management with a Web browser (HTTP) and CLI
  • Router: Universal Plug and Play (UPnP) and Application Level Gateway support for Internet applications such as email, FTP, gaming, remote desktop, Net Meeting, telnet and more

Technical Specs

Standards Compliant with ADSL standards
- ANSI T1.413 Issue2
- G.992.1 (G.dmt, Annex A)
- G.992.2 (G.lite)
Compliant with ADSL2 standard
- G.992.3 (G.dmt.bis, Annex L)
Compliant with ADSL2+ standard
- G.992.5 Annex A and M
IEEE 802.3u 10/100Base TX Fast Ethernet
Protocol TCP/IP,NAT, HTTP, DHCP Server/Relay/Client, DDNS, DNS Proxy, UPNP
Firewall Network Address Translation (NAT)
Stateful Packet Inspection (SPI)
Packet Filtering - IP, MAC, Domain, Keyword
Management Access Control for LAN
ATM VC and LLC Multiplexing
Bridged/Routed Ethernet over ATM (RFC1483/2684)
OAM F4/F5 loop-back
PPP over ATM (RFC2364)
PPP over Ethernet (RFC2516)
ATM Traffic Shaping QoS(UBR, CBR, rt-VBR, nrt-VBR)
Management Web based Configuration (HTTP)
Command Line Interface (CLI) via Telnet
SNMP v1 and v2c
IGMP v1 and v2
SW upgrade
WAN Port (ADSL line Interface) 1 x RJ-11 port
LAN Port 1 x 10/100Mbps Auto-MDIX RJ-45 port
USB Type B male port, supporting USB 2.0 and backwards compatible with 1.0 (optional LAN port)
Reset Button Reset to factory default
On/Off Power Button Power on/off button
LED Power, LAN: Link/ACT, USB, ADSL, Internet, USB
Power A: 9V, 1A external power adapter
EU: 9V, 0.5A external power adapter
Power Consumption 4.3 Watts
Temperature Operating: 0deg.- 40deg.C (32deg.- 104deg.F)
Storage: -10deg.- 70deg.C (-14deg.- 158deg.F)
Humidity Max. 90% (non-condensation)
Dimensions 90x107x28mm / 3.54x4.21x1.10"
Weight 221g / 7.79oz
