TRENDnet

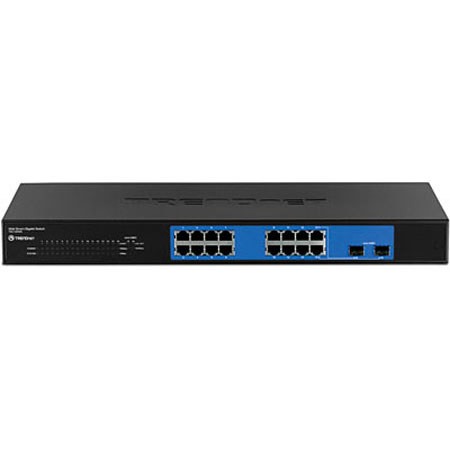

TRENDnet 16-port 10/100/1000 Web Smart Switch with 2 Shared Mini-GBIC Slots

SKU: TNEG160WS MFR: TEG-160WS
Ships in 1-2 business days
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$150.49 $6 per week
Qty:
Add to Wishlist In Stock

About this item

The TRENDnet 16-port 10/100/1000 Web Smart Switch with 2 Shared Mini-GBIC Slots delivers a 32Gbps switching capacity with managed layer 2 features at a reduced cost. Support for SNMP v1, 802.1X, STP, 802.1Q VLAN, QoS, IGMP snooping, Broadcast Storm Control and port Trunking provides a cost effective, scalable and secure backbone switch solution for SMB networks. SNMP support enables the switch to provide valuable status and event information, saving system administrators time and resources. Connect a fiber network to the shared mini-GBIC slots. Access the Web-browser management interface and segment up to 256 Virtual Local Area Networks, manage network priority with 802.1p support and dedicate bandwidth with port-based Trunking.

What's Included With This Item

  • TRENDnet 16-port 10/100/1000 Web Smart Switch with 2 Shared Mini-GBIC Slots
  • Multi-Language QIG
  • CD-ROM (Utility/UG)
  • Power Cord
  • Rack Mount Kit
  • TRENDnet 3 Year Limited Warranty

Key Features

  • 16 x 10/100/1000Mbps Auto-MDIX RJ-45 ports
  • 2 x 1000Base-SX/LX Mini-GBIC slots (shared with Gigabit ports 15-16)
  • 32Gbps switching capacity
  • IEEE 802.3x Full Duplex Flow Control and Back Pressure
  • IEEE 802.3ad Port Trunk
  • IEEE 802.1D Spanning Tree Protocol
  • IEEE 802.1p QoS
  • IEEE 802.1X Authentication and SNMP v1
  • Supports port based IEEE 802.1Q VLAN Tag and Asymmetric VLAN
  • Store and Forward switching method
  • Front panel diagnostic LEDs
  • Supports Jumbo Frame packets (max size up to 10Kbytes)
  • Integrated address look-up engine supports up to 8K absolute MAC addresses
  • Supports 512Kbytes RAM for data buffering
  • Easy configuration via Web browser

Technical Specs

Standards IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX
IEEE 802.3ab 1000Base-T
IEEE 802.3z 1000Base-SX/LX (Mini-GBIC)
IEEE 802.3x Flow Control and Back Pressure
IEEE 802.3ad Port Trunk
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1p QoS
IEEE 802.1Q VLAN Tag
IEEE 802.1X Authentication
SNMP v1
Protocol CSMA/CD
Transmission Method Store-and-Forward
Interface 16 x 10/100/1000Mbps Auto-MDIX RJ-45 ports
2 x 1000Base-SX/LX Mini-GBIC slots (shared with Gigabit ports 15-16)
Network Media Ethernet: UTP/STP Cat. 3, 4, 5 up to 100m
Fast Ethernet: UTP/STP Cat. 5, 5e up to 100m
Gigabit: UTP/STP Cat. 5, 5e, 6 up to 100m
Data Transfer Rate 10Mbps: 10/20Mbps (Half/Full-Duplex)
100Mbps: 100/200Mbps (Half/Full-Duplex)
1000Mbps: 2000Mbps (Full-Duplex)
Data RAM Buffers 512KBytes per device
Filtering Address Table 8K entries per device
Switch Fabric 32Gbps forwarding capacity
Diagnostic LEDs Per Unit: Power, System
Per Copper Gigabit Port: Link/ACT, 1000M, 100M
Per Mini-GBIC Port: Link/ACT, 1000M
Power Supply 100 - 240VAC 50/60Hz, internal universal switching power
Power Consumption 30 watts (max)
Operating Temperature 0deg.C - 40deg.C (32deg.F - 104deg.F)
Storage Temperature -10deg.C to 70deg.C (14deg.F to 158deg.F)
Operating Humidity 10 % - 90 % (non-condensing)
Storage Humidity 5 % - 90 %(non-condensing)
Dimensions 440x210x44mm (17.32x8.26x1.73")
Weight 3kg (6.61lbs)
