TRENDnet

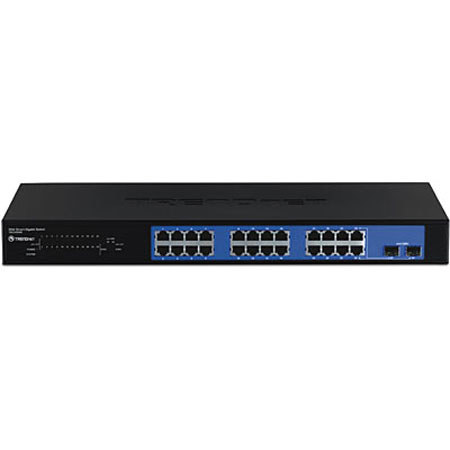

TRENDnet 24-port 10/100/1000Mbps Gigabit Web Smart Switch

SKU: TNEG240WS MFR: TEG-240WS
Ships in 1-2 business days
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$191.99 $8 per week
Qty:
Add to Wishlist In Stock

About this item

The TRENDnet 24-port 10/100/1000Mbps Gigabit Web Smart Switch is the ideal Switch for network segmenting. It has 24 10/100/1000Mbps Auto-Sensing and Auto-MDIX ports for easy installation. The TEG-240WS supports web browser configuration; Network Administrator can use web browser to configure port speed, port-based VLAN and QoS and also monitor each port's status which provides simple migration, scalability and flexibility to handle new applications and data types. The TEG-240WS is powerful and easy-to-use in reducing unnecessary broadcast traffic and enhance network security.

What's Included With This Item

  • TRENDnet 24-port 10/100/1000Mbps Gigabit Web Smart Switch
  • Multi-Language Quick Installation Guide
  • Rack-Mount Kit
  • Power Supply
  • TRENDnet 5 Year Limited Warranty

Key Features

  • 24 x 10/100/1000Mbps Auto-negotiation, Auto-MDIX Gigabit Ports
  • Full/Half-Duplex Transfer Mode for Each Port (2000Mbps Full-Duplex only)
  • Full Wire-Speed Non-Blocking Reception and Transmission
  • Store and Forward Switching Method
  • 512K bytes RAM Data Buffer and 8K entries MAC Address Table
  • Extensive Diagnostic LED's on the Front Panel
  • IEEE 802.3x Flow Control for Full-Duplex Mode; Back Pressure Flow Control for Half-Duplex Mode
  • Proprietary Windows Based Management/Monitoring Utility (similar to SNMP Trap)
  • Port-Based VLAN and Port-Based IEEE 802.1p QoS (High/Normal)
  • Supports Trunking (max. 3 groups/4ports each group) and Port Mirroring
  • Port Setting Function, Users can set each Port's Availability, Speed, Duplex Mode and Flow Control
  • Supports Jumbo Frame Packets Transfer
  • Easy configuration via Web browser
  • Standard 19" (1U) Rack Mount Size

Technical Specs

Standards IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX
IEEE 802.3ab 1000Base-T
IEEEE 802.3x Full Duplex Flow Control
Network Media Ethernet: 2-pair UTP Cat. 3, 4, 5, up to 10Mbps
Fast Ethernet: 2-pair UTP Cat. 5, up to 100Mbps
Gigabit: 4-pair UTP Cat. 5, 5E, 6, up to 1000Mbps
Transmission Method Store-and-Forward
Transfer Rate Ethernet: 10Mbps/20Mbps (Half/Full Duplex)
Fast Ethernet: 100Mbps/200Mbps (Half/Full Duplex)
Gigabit: 2000Mbps (Full Duplex)
Data RAM Buffer 512Kbytes
Filtering Address Table 8K Entries Per Device
Switch Fabric 48Gbps Forwarding Capacity
LED Per Unit: Power
Per Port: Link/ACT, 1000M, 100M
Power Supply 100-240V AC, 50/60Hz, Internal Power Supply
Power Consumption 35 watts. (max)
Temperature Operating: 0deg. - 40deg. C / 32deg. - 104deg.F
Storage: -10deg. - 70deg. C / 14deg. - 158deg.F
Humidity 10% - 90% (Non-Condensing)
Emissions FCC, CE
Dimensions 440x210x44mm / 17.3x8.26x1.73"
Weight 3Kg / 6.6lbs
