TRENDnet

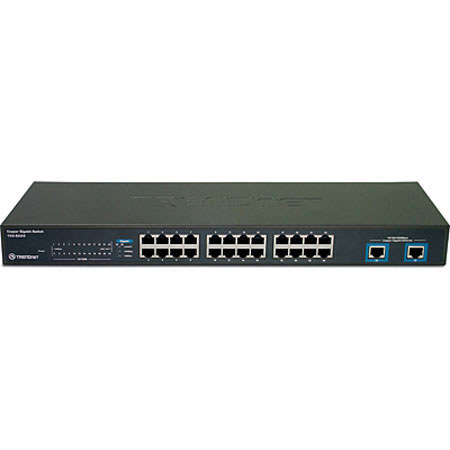

TRENDnet 26-port 10/100/1000Mbps Switch with 2 Gigabit Ports

SKU: TNEGS224 MFR: TEG-S224
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

About this item

The TRENDnet TEG-S224 Switch is a 26-port 10/100/1000Mbps Gigabit Ethernet Switch with 24 10/100Mbps Fast Ethernet ports and 2 10/100/1000Mbps Copper Gigabit Ethernet ports. Users can connect servers to the gigabit port(s) to increase network performance or uplink Copper Gigabit Switches together to create a high-bandwidth gigabit backbone. TRENDnet's TEG-S224 provides simple migration, scalability and flexibility to handle new applications and data types making it a highly reliable solution for high-speed network connectivity.

What's Included With This Item

  • TRENDnet 26-port 10/100/1000Mbps Copper Gigabit Switch
  • Multi-Language Quick Installation Guide
  • Rack Mount Kit
  • Power Cord
  • TRENDnet 3 Year Limited Warranty

Key Features

  • 24 x 10/100Mbps Auto-negotiation MDIX Fast Ethernet Ports
  • 2 x 10/100/1000Mbps Auto-negotiation, Auto-MDIX Gigabit Ports
  • Full/Half duplex transfer mode for each port (full duplex mode only for Gigabit)
  • Store and Forward switching method
  • 8.8 Gbps Switching Fabric
  • Integrated address Look-Up Engine with 8K absolute MAC address table
  • Supports 2.5MB RAM data buffering
  • IEEE 802.3x flow control for Full Duplex mode
  • Back pressure flow control for Half Duplex mode
  • Extensive Front-Panel Diagnostic LEDs
  • Standard 19" Rack-mount design

Technical Specs

LAN Standards IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T,. IEEE 802.3x Full Duplex Flow Control
Network Media Ethernet: UTP/STP Cat. 3, 4, 5
Fast Ethernet: UTP/STP Cat. 5
Gigabit: UTP/STP Cat. 5, Cat 5E (Recommend)
Protocol CSMA/CD
Topology Star
LAN Port 24 x 10/100Mbps Auto Negotiation
Auto-MDIX Fast Ethernet ports
2x10/100/1000Mbps Auto Negotiation
Auto MDIX Gigabit ports
Address Table 8K Entries Per Device
Data RAM buffer 2.5MB Per Device
Data Transfer Rate Ethernet: 10/20Mbps - Half/Full-Duplex
Fast Ethernet: 100/200Mbps - Half/Full Duplex
Gigabit Ethernet: 1000/2000Mbps - Half/Full Duplex
Diagnostic LEDs Per Unit: Power System
Per Fast Ethernet Port: Link/ACT, 100M (port 1-24)
Per Gigabit Ethernet Port: Link/ACT, 1000M, 100M (port 25, 26)
Power Consumption 11.75 Watts. Max
Power Supply 100-240V AC, 50/60Hz Internal Universal Power Supply
Temperature Operating: 0deg. - 40deg. C / 32deg. - 104deg. F
Storage: -10deg. - 70deg. C / 14deg. - 158deg. F
Humidity 10% - 90% (No-Condensing)
Certifications CE, FCC
Dimensions 440x140x44mm / 17.32x5.5x1.73"
Weight 4.7lbs / 2.13kg
