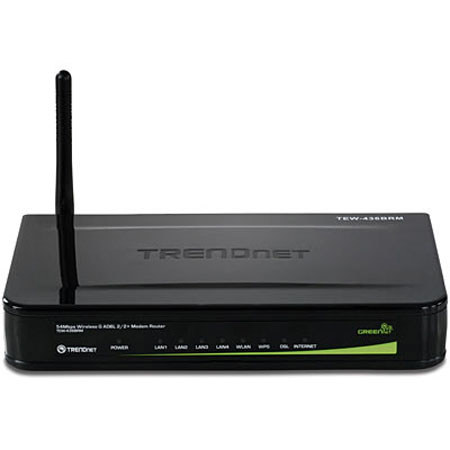

TRENDnet 54Mbps Wireless G ADSL 2/2+ Modem Router

SKU: TNEW436BRM MFR: TEW-436BRM
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$41.69
Qty:
Add to Wishlist

About this item

The TRENDnet 54Mbps Wireless G ADSL 2/2+ Modem Router is an all-in-one modem and wireless g router. This sleek device provides an ADSL 2/2+ modem, wireless g router and 4-port switch, all in a single product. Quickly install this device to surf the Internet, download files, play games and talk online. Advanced wireless encryption and a double firewall protect your valuable data. Wi-Fi Protected Setup (WPS) allows users to securely synchronize WPS supported wireless peripheral devices at the touch of a button.

What's Included With This Item

  • TRENDnet 54Mbps Wireless G ADSL 2/2+ Modem Router
  • Multi-language Quick Installation Guide
  • CD-ROM (User's Guide)
  • Power adapter (12V DC 1A)
  • Cat. 5 Ethernet cable (1.5m /5ft.)
  • RJ-11 telephone cable (1m /3ft)
  • TRENDnet 3 Year Limited Warranty

Key Features

  • Wi-Fi compliant with IEEE 802.11g and IEEE 802.11b wireless devices
  • Compliant with ADSL, ADSL2 and ADSL2+ standards and Compliant with PPPoE, PPPoA or IPoA connection types
  • Wi-Fi Protected Setup (WPS) for simple network connectivity
  • Supports RIP, Static routing and dynamic DNS service
  • Supports the TR-069 remote management protocol
  • Wi-Fi Multimedia (WMM) Quality of Service (QoS) technology
  • Advanced Firewall protection with Network Address Translation (NAT) and Stateful Packet Inspection (SPI)
  • Internet Access Control (MAC Address, Domain, URL and IP Filtering) support
  • Supports Windows, Linix and Mac operating systems
  • Easy configuration and remote management with a Web browser (HTTP)
  • Advanced wireless encryption: 64/128-bit WEP, WPA/WPA2-RADIUS and WPA/WPA2-PSK
  • Universal Plug and Play (UPnP) and Application Level Gateway support for Internet applications such as email, FTP, gaming, remote desktop, Net Meeting, telnet and more
  • On / off power button

Technical Specs

Standards Compliant with ADSL standards:
ANSI T1.413 Issue2
G.992.1 (G.dmt, Annex A)
G.992.2 (G.lite)
Compliant with ADSL2 standard: G.992.3 (G.dmt.bis)
Compliant with ADSL2+ standard:
G.992.5 Annex A
IEEE 802.11b & 802.11g Wireless LAN
IEEE 802.3u 10/100Base TX Fast Ethernet
Protocol TCP/IP,NAT, HTTP, DHCP Server/Relay/Client, DDNS, DNS Proxy
Firewall NAT Firewall
Stateful Packet Inspection (SPI)
Packet Filtering - IP, MAC Domain, Keyword
Management Access Control for LAN/WLAN
ATM VC and LLC Multiplexing
Bridged/Routed Ethernet over ATM (RFC1483/2684)
OAM F4/F5 loop-back
PPP over ATM (RFC2364)
PPP over Ethernet (RFC2516)
ATM TrafficShaping QoS(UBR, CBR, rt-VBR, nrt-VBR)
Management Web based Configuration (HTTP
Command Line Interface (CLI) via Telnet
TR-069 Remote Management
SNMP Support
IGMP v1/v2 Support
SW upgrade
WAN Port (ADSL line Interface) Complies with ADSL standards:
ANSI T1.413 Issue2
G.992.1 (G.dmt, Annex A)
G.992.2 (G.lite)
Complies with ADSL2 standard:
G.992.3 (G.dmt.bis)
Complies with ADSL2+ standard: G.992.5 Annex A
LAN Port 4 x 10/100Mbps Auto-MDIX and Auto-Negotiation RJ-45 Port
Reset Button Reset to Factory Default
On/Off Power Button Electrical power on/off button
WPS Button Wi-Fi Protected Setup (WPS) automated wireless connection push button
LED Power
LAN1-4: Link/ACT
WLAN: Link/ACT
WPS
ADSL
Internet
Power 12V DC 1A external power adapter
Power Consumption 6.5 watts (max)
Temperature Operating: 0deg.- 40deg.C (32deg.- 104deg.F)
Humidity 10% - 90% (non- condensation)
Certifications FCC, CE
Wireless Standards IEEE 802.11b, IEEE 802.11g
Wireless Modulation DBPSK/DQPSK/CCK/OFDM (BPSK/QPSK/16-QAM/64-QAM)
Wireless Data Rate 802.11g: up to 54Mbps
802.11b: up to 11Mbps
Wireless Frequency 2.412 - 24.84 GHz
Wireless Antenna 1 x fixed 2dBi dipole antenna
Wireless Security 64/128-bits WEP , WPA/WPA2 - PSK, WPA-PSK/WPA2-RADIUS
Wireless Output Power 802.11b: 14.5dBm (typical)
802.11g: 14dBm (typical)
Wireless Receiving Sensitivity 54Mbps: Typical - 65dBm at 10% PER
11Mbps: Typical - 80dBm at 8% PER
Wireless Channel 1 - 11 (FCC),1 - 13 (ETSI)
Dimensions Without Antenna: 195.00x120.00x30.00mm (7.67x4.72x1.18")
Weight 351g (12.38oz)
