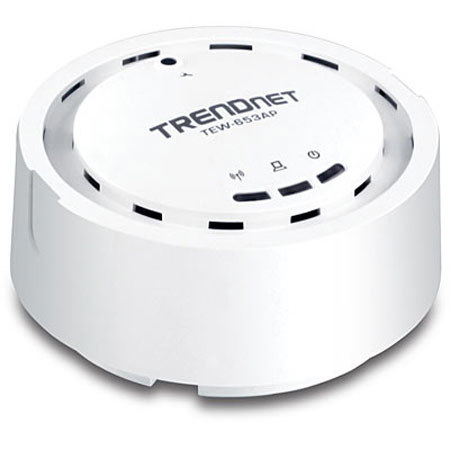

TRENDnet N300 Wireless PoE Access Point

See all TRENDnet items
SKU: TNEW653AP MFR: TEW-653AP
TRENDnet N300: Picture 1 thumbnail TRENDnet N300: Picture 2 thumbnail TRENDnet N300: Picture 3 thumbnail TRENDnet N300: Picture 4 thumbnail

About TRENDnet N300

The TRENDnet TEW-653AP N300 Wireless PoE Access Point combines high speed wireless n coverage with Power over Ethernet (PoE) technology to deliver up to 12x the speed and 4x the coverage of wireless. This feature rich device blends into most environments and offers Access Point, Wireless Distribution System (WDS) and Repeater mode functionality.

Define a weekly power saving schedule, view real time network traffic charts, turn off the flashing LED indicators and assign individual VLANs for up to 4 separate SSIDs. Advanced antenna technology (MIMO) delivers superior range and eliminates dead spots. Synchronize wireless clients at the touch of a button with Wi-Fi Protected Setup (WPS). Advanced encryption protects valuable data and WMM Quality of Service (QoS) technology prioritizes video and audio packets.

TRENDnet N300 Features

  • Wi-Fi compliant with IEEE 802.11n and IEEE 802.11b/g standards
  • Power device by an Ethernet cable using IEEE 802.3af Power over Ethernet (PoE) protocol
  • Functional Access Point, WDS and Repeater modes provide network flexibility
  • Advanced wireless security with 64/128-bit WEP, WPA/WPA2-RADIUS and WPA-PSK/WPA2-PSK
  • Supports multiple SSIDs (up to 4 SSIDs) with 802.1q VLAN tagging (AP mode)
  • High-speed data rates up to 300Mbps using 802.11n connection
  • Monitor bandwidth allocation through graphical interface
  • Wi-Fi Protected Setup (WPS) integrates wireless clients quickly
  • 802.1X Authentication protocol support
  • Wi-Fi Multimedia (WMM) Quality of Service (QoS) data prioritization
  • Management via web browser
  • SNMP (v1, v2c) support

TRENDnet N300 Specifications

Hardware Standards
IEEE 802.3 (10Base-T)
IEEE 802.3u (100Base-TX)
IEEE 802.11b
IEEE 802.11g
IEEE 802.11n
802.3af
Interface
1 x 10/100Mbps Auto-MDIX PoE LAN port
LED Indicators
Power/Status, LAN, WLAN
Hardware Button
Reset button - restores factory default settings
Power Supply
Active Ethernet (Power over Ethernet, IEEE802.3af ) -48VDC/0.375A
Power adapter 12V/1A
Power Consumption
6 watts (max)
Temperature
Operating: 0deg. - 45deg.C (32deg. - 113deg.F)
Storage: -20deg.C - 70deg.C (-4deg. - 158deg. F)
Humidity
5% - 95% typical (non-condensing)
Wireless Module Technique
OFDM: BPSK, QPSK, 16-QAM, 64-QAM
DBPSK, DQPSK, CCK
Wireless Modes
Access Point, WDS Bridge, Repeater
Wireless Antenna
4dBi Smart Internal Antenna
Wireless Frequency
2.412 - 2.472 GHz
Wireless Management
Web browser (HTTP); SNMP v1, v2c
Wireless Data Rate (Auto Fallback)
802.11n: up to 300Mbps
802.11g: up to 54Mbps
802.11b: up to 11Mbps
Wireless Output Power
802.11n: 18dBm (typical) at 300Mbps
802.11g: 18dBm (typical) at 54Mbps
802.11b: 17dBm (typical) at 11Mbps
Wireless Receiving Sensitivity
802.11n: -61dBm
802.11g: -72dBm
802.11b: -89dBm
Wireless Encryption
64/128 bit WEP, WPA-PSK/WPA2-PSK, WPA/WPA2-RADIUS
Wireless Channels
1-11 (FCC), 1-13 (ETSI)
Dimensions (DxH)
120.00x50.00mm (4.72x1.97")
Weight
280g (9.87oz)
