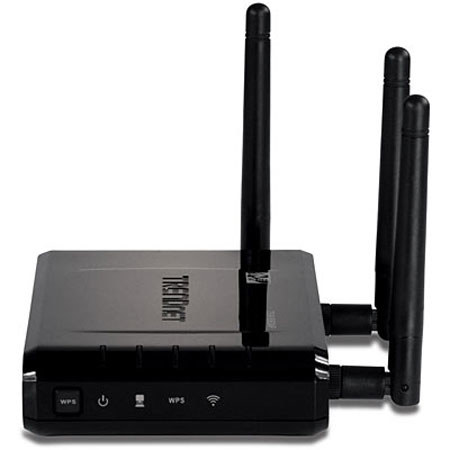

TRENDnet N450 Wireless Access Point

SKU: TNEW690AP MFR: TEW-690AP

Our Price

$74.99
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

Availability: In Stock & Ready to Ship

Free Expedited Shipping

See all shipping options

TRENDnet N450: Picture 1 regular $74.99

About TRENDnet N450

The TRENDnet TEW-690AP N450 Wireless Access Point is supported Access Point, Wireless Distribution System (WDS) and Repeater mode functionality. Advanced Multiple Input Multiple Output (MIMO) antenna technology with three spatial streams per antenna, generates a maximum theoretical wireless throughput of 450Mbps and exceptional wireless coverage. A Gigabit Ethernet port maintains high performance wired connections. Wi-Fi Protected Setup (WPS) integrates other WPS supported devices at the touch of a button. Advanced features include 4 SSIDs per wireless band, different encryption for each SSID, WMM Quality of Service data prioritization, WPA2-RADIUS encryption and a convenient on/off power switch.

TRENDnet N450 Features

  • High performance 450Mbps wireless n access point
  • 1 x 10/100/1000Mbps Auto-MDIX Gigabit LAN port
  • 1 x WPS button
  • 1 x Reset button
  • On/off power switch (EU Version)
  • Diagnostic LEDs
  • Wi-Fi compliant with IEEE 802.11n standard
  • Backwards compatible with IEEE 802.11g/b devices
  • Features Wireless Distribution System (WDS) and Repeater modes for wireless network expansion
  • Supports 64/128-bit WEP, WPA/WPA2-PSK and WPA/WPA2-RADIUS wireless security
  • Mac filter feature for added security
  • Wi-Fi Multimedia (WMM) Quality of Service (QoS) data prioritization
  • Multiple Input Multiple Output (MIMO) antenna technology
  • Define up to 3 additional SSIDs
  • One touch wireless connection using the WPS button
  • Maximum reliability, throughput and connectivity with automatic data rate switching
  • Easy user setup wizard and intuitive Web browser configuration
  • Coverage of up to 100 m indoor (328') and 300 m outdoor (948')

TRENDnet N450 Specifications

Hardware Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.11b, IEEE 802.11g and IEEE 802.11n
Interface
1 x 10/100/1000Mbps Auto-MDIX Gigabit LAN port
Hardware Access Control
64 MAC Address Filter Entries
LED Indicator
Wireless, LAN, WPS, Power
Buttons
Reset button - restores factory default settings
WPS button - enables WPS function
On/off power (EU version)
Power
12V DC 1A power adapter
Power Consumption
4.5 watts (max)
Temperature
Operating: 0deg. - 40deg. C (32deg. - 104deg. F)
Storage: -20deg. - 60deg. C (-4deg. - 140deg. F)
Humidity
Max. 90% (non-condensing)
Wireless Frequency
2.412 - 2.472 GHz
Wireless Antenna
3 x 2dBi detachable antennas
Wireless Data Rate (auto fallback)
802.11b: up to 11Mbps
802.11g:up to 54Mbps
802.11n: up to 450Mbps
Wireless Output Power
802.11b: 18dBm (typical)
802.11g: 15dBm (typical)
802.11n: 15dBm (typical)
Wireless Receiving Sensitivity
802.11b: -84dBm (typical)
802.11g: -72dBm (typical)
802.11n: -69dBm (typical)
Wireless Encryption
64/128-bit WEP, WPA/WPA2-PSK, WPA/WPA2-RADIUS
Wireless Channels
1-11 (FCC), 1-13 (ETSI)
Dimensions (LxWxH)
120.00x84.00x24.00mm (4.72x3.30x1.00")
Weight
160g (5.64oz)
Mfr #
TEW-690AP
SKU
TNEW690AP
