TRENDnet

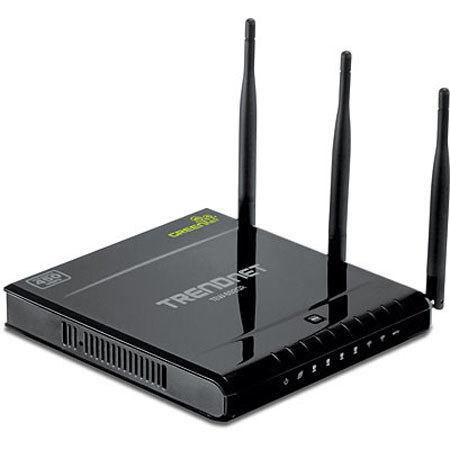

TRENDnet N900 450Mbps Concurrent Dual Band Wireless-N Router

SKU: TNEW692GR MFR: TEW-692GR
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

About the TRENDnet N900

The TRENDnet N900 450Mbps Concurrent Dual Band Wireless-N Router is the first router to support 450Mbps speeds on both the 2.4GHz and 5GHz bands at the same time. Gigabit Wide Area Network and Local Area Network ports transfer wired data fast. Embedded GREENnet technology reduces port-based power consumption by up to 70%.

Advanced Multiple Input Multiple Output (MIMO) antenna technology reduces wireless dead spots. Wi-Fi Protected Setup (WPS) connects other WPS supported wireless adapters at the touch of a button. WMM Quality of Service (QoS) technology prioritizes gaming, Internet calls and video streams. Assign up to four virtual networks on each wireless band and manage access control for IP addresses, website URLs and data protocols.

TRENDnet N900 Includes

  • TRENDnet N900 450Mbps Concurrent Dual Band Wireless-N Router
  • Multi-Language Quick Installation Guide
  • CD-Rom (User's Guide)
  • Cat. 5 Ethernet Cable (1m / 3.2ft)
  • Power Adapter (12V, 1A)
  • TRENDnet 3 Year Limited Warranty

TRENDnet N900 Features

  • 4 x 10/100/1000Mbps Auto-MDIX LAN ports
  • 1 x 10/100/1000Mbps WAN port (Internet)
  • Wi-Fi Protected Setup (WPS) button
  • On/off power switch (EU Version)
  • On/off wireless radio button
  • LED status indicators
  • Compliant with IEEE 802.11n/b/g/a standards
  • High-speed data rates of up to 450 Mbps using both 2.4 GHz and 5 GHz bands
  • Compatible with most popular cable/DSL Internet Service Providers using Dynamic/Static IP, PPPoE, L2TP and PPTP connection
  • Advanced firewall protection with Network Address Translation (NAT) support
  • Advanced wireless security of up to WPA2-RADIUS
  • DMZ support
  • Wi-Fi Multimedia (WMM) Quality of Service (QoS) data prioritization
  • Support for up to four virtual wireless networks (SSIDs) per wireless band
  • Gaming Port Controls: supports opening multiple ports or a range of ports
  • Internet Access Control with MAC, URL, Service Type and IP Range filtering
  • Internet Access Control Rule Scheduling: schedule access to websites, online video games, Internet cameras and more for specific times through the week
  • One touch wireless connection to wireless clients using the WPS button
  • Easy setup via Web browser using the latest versions of Internet Explorer, FireFox, Safari and Chrome
  • Virtual server and Application Level Gateway (ALG) services for special Internet applications
  • Universal Plug and Play (UPnP) for auto discovery and support for device configuration of Internet applications

TRENDnet N900 Specifications

Standards Wired: IEEE 802.3 (10Base-T), IEEE 802.3u (100Base-TX), IEEE 802.3ab (1000Base-T), 802.3az
Wireless: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, 802.11a
LAN 4 x 10/100/1000Mbps Auto-MDIX port
WAN 1 x 10/100/1000Mbps Auto-MDIX port
WPS Button Wi-Fi Protected Setup (WPS) Connects With Other WPS Compliant Devices
LED Indicator Power, LAN 1-4, WAN, 2.4GHz Wireless, 5Ghz Wireless, WPS
Power Adapter 12V DC, 1A External Power Adapter
Power Consumption 9.6 watts (max)
Temperature Operation: 0deg.- 40deg.C (32deg.F- 104deg.F) Storage: -20deg.- 60deg.C (-4deg.F-140 deg.F)
Humidity Max. 90% (Non-Condensing)
Certifications CE, FCC
Frequency FCC: 2.412-2.462 GHz, 5.180-5.240 GHz, 5.725-5.850 GHz
ETSI:2.412-2.472 GHz, 5.150-5.250 GHz
Antenna 2.4GHz: 3 x 2dBi (Internal)
5GHz: 3 x 3dBi (External Fixed)
Modulation OFDM: BPSK, QPSK, 16-QAM, 64-QAM
DBPSK, DQPSK, CCK
Data Rate 802.11a: up to 54Mbps
802.11b: up to 11Mbps
802.11g: up to 54Mbps
802.11n: up to 450Mbps (for both 2.4 & 5GHz)
Security 64/128-bit WEP, WPA/WPA2-PSK, WPA/WPA2-RADIUS
Access Control MAC Address Filter (Up to 24 entries)
Output Power 802.11a: 14dBm (typical)
802.11b: 18dBm (typical)
802.11g: 15dBm (typical)
802.11n: 15dBm +/- 1 dBm (typical) (for 2.4 & 5GHz)
Receiving Sensitivity 802.11a: -70dBm (typical) at 54Mbps
802.11b: -84dBm (typical) at 11Mpbs
802.11g: -72dBm (typical) at 54Mbps
802.11n: -66dBm +/- 1 dBm (typical) at 450Mbps (for 2.4 & 5GHz)
Channels 2.4GHz: 1-11 (FCC), 1-13 (ETSI)
5GHz: 36, 40, 44, 48, 149, 153, 157, 161 and 165(FCC)
36, 40, 44 and 48 (ETSI)
Dimensions(LxWxH) 163x156x26mm / 6.41x6.1x1"
Weight 175g / 6.17oz
