About TRENDnet N150

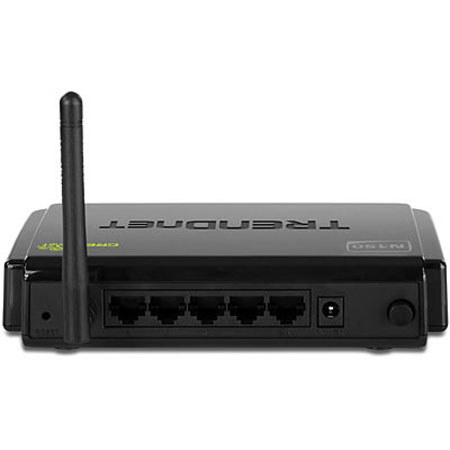

The TRENDnet TEW-712BR N150 Wireless Router provides reliable 150Mbps wireless n speed and coverage to share files, play games and surf the Internet. Advanced encryption protects your wireless network, Access Control tools help block unwanted websites and unknown users and embedded GREENnet technology reduces power consumption by up to 50%. WMM Quality of Service (QoS) technology prioritizes gaming, Internet calls and video streams. Wi-Fi Protected Setup (WPS) connects other WPS supported wireless adapters at the touch of a button. LEDs on the front of the router convey device status. Network wired devices to the four Fast Ethernet ports on the back of the router.

Summary of Customer Reviews

(5)
Customers most agreed on the following attributes:
Pros:
Easy to set up (3),Fast (3)
Reviewer Profile:
High bandwidth user (4)

TRENDnet N150 Features

  • 4 x 10/100Mbps Auto-MDIX LAN ports
  • 1 x 10/100Mbps Auto-MDIX WAN port (Internet)
  • High-speed data rates of up to 150Mbps based on IEEE 802.11n
  • One touch wireless connection to wireless clients using the WPS button
  • GREENnet technology reduces power consumption by up to 50%
  • Compliant with IEEE 802.11b/g standards
  • Advanced wireless security of up to WPA2-RADIUS
  • Compatible with most popular cable/DSL Internet
  • Internet Access Control (MAC Address, Domain and IP Filtering)
  • Firewall features Network Address Translation (NAT)
  • Virtual server and Application Level Gateway (ALG) services for special Internet applications
  • Universal Plug and Play (UPnP) for auto discovery and support for device configuration of Internet applications
  • Dynamic DNS Client for dynamic Internet IP resolution
  • Wi-Fi Multimedia (WMM) Quality of Service (QoS) data prioritization
  • Easy setup via Web browser using Internet Explorer 6.0 or above, Firefox 2.0 or above, Chrome, Opera, Safari
  • Indoor range up to 100 m (330') depending on the environment
  • Outdoor range up to 300 m (980') depending on the environment

TRENDnet N150 Specifications

Hardware Standards
IEEE 802.3 (10BASE-T), IEEE 802.3u (100BASE-TX), IEEE 802.11b
IEEE 802.11g, Based on IEEE 802.11n technology
WAN
1 x 10/100Mbps Auto-MDIX WAN port (Internet)
LAN
4 x 10/100Mbps Auto-MDIX LAN ports
WPS Button
Enables Wi-Fi Protected Setup (WPS) function (Hold for 3 seconds)
Power Switch
On/Off power switch
Connection Type
Dynamic IP, Static (fixed) IP, PPPoE, PPTP, L2TP
Supported Web Browsers
Internet Explorer 6.0 or above, Firefox 2.0 or above, Chrome, Opera, Safari
Internet Access Control
MAC Address Filter, Domain/URL Filter, Protocol/IP Filter, Virtual Server, DMZ host, UPnP, PPTP/L2TP/IPsec VPN pass through
Hardware
Local/remote configuration, upgrade firmware, Backup/Restore configuration via Web browser, Internal System Log, Syslog, E-Mail Logging, Ping Test Tool, Dynamic DNS
Routing
Static
LED Indicators
Power, LAN1 - LAN4, WAN, WLAN
Power
Input: 100-240V AC, 50-60Hz
Output: 5V DC, 1A
Power Consumption
3 Watts (max)
Temperature
Operating: 0deg. - 40deg.C (32deg. - 104deg.F)
Storage: -10deg.C - 70deg.C (-14deg. - 158deg.F)
Humidity
Max. 95% (non-condensing)
Wireless Frequency
2.412 - 2.484 GHz ISM band
Wireless Antenna
1 x 2dBi fixed dipole antenna
Wireless Modulation
DBPSK/DQPSK/CCK/OFDM (BPSK/QPSK/16-QAM/64-QAM)
Wireless Media Access Protocol
CSMA/CA with ACK
Wireless Data Rate
802.11b: up to 11 Mbps
802.11g: up to 54 Mbps
802.11n: up to 150 Mbps
Wireless Output Power
802.11b: 15dBm (typical) at 11 Mbps
802.11g: 17dBm (typical) at 54 Mbps
802.11n: 18dBm (typical) at 150 Mbps
Wireless Receiving Sensitivity
802.11b: -85dBm (typical) at 11 Mbps
802.11g: -68dBm (typical) at 54 Mbps
802.11n: -62dBm (typical) at 150 Mbps
Wireless Encryption
64/128-bit WEP (HEX/ASCII), WPA /WPA2-PSK, WPA/WPA2-RADIUS
Wireless Channels
1-11 (FCC), 1-13 (ETSI)
Dimensions (L x W x H)
158.00x109.00x34.00mm (6.22x4.30x1.33")
Weight
204g (7.20oz)

TRENDnet N150 Reviews

Review Snapshot®


4.2

(based on 5 reviews)

Ratings Distribution

  • 5 Stars



    (2)

  • 4 Stars



    (2)

  • 3 Stars



    (1)

  • 2 Stars



    (0)

  • 1 Stars



    (0)

Reviewed by 5 customers


5.0

Small, easy to setup and easy to use

By

from Michigan  -  Tech Savvy

I love the compact size. Range in my apartment is really good, too. This is the same brand my boss recommends for his clients. Setup was pretty easy with the included CD/DVD. There was one question I wasn't sure about (which type of security), but I just searched it on the Internet and found out which type was more secure.


4.0

TRENDnet N150 Easy-N-Range Extender

By

from il  -  High bandwidth user

very good product..got it in time,good service


3.0

IT OK not that great

By

from new jersey  -  High bandwidth user

This extender works OK, and extend the wifi but the speed is slow for the data upload and download.


4.0

Good Extender, took a little longer...

By

from san francisco  -  High bandwidth user

So far, so good. Got this 3 weeks ago, and set it up a few days ago. Right now, the signal strength is great downstairs in my house. The only issue is that it takes a little longer than the Belkin extender I already have to link up. We also had to try a few times while the light continued to flash green. However, I used the WPS to setup, while I used the internal web setup on the other range extender. So sort of comparing apples to oranges in terms of setup.


5.0

Great

By

from Los Angeles, CA  -  High bandwidth user

Easy to use, very fast. Great price. Thankx.
