TRENDnet

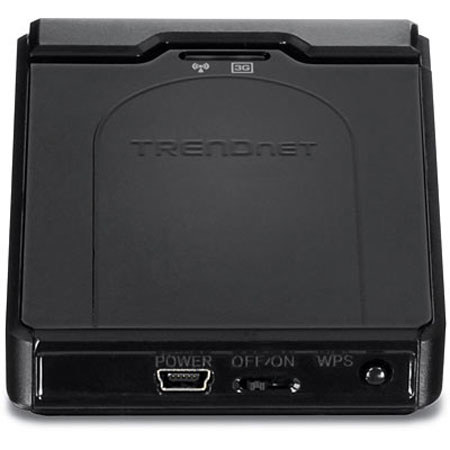

TRENDnet 3G Mobile Wireless Router

SKU: TNEW716BRG MFR: TEW-716BRG
Please note: Although this item is temporarily out of stock, you can order it now and it will ship as soon as it arrives. Your card will only be charged once item is shipped.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$38.60
Qty:

Add to Wishlist

About this item

The TRENDnet 3G Mobile Wireless Router shares a single internet connection from a compatible USB 3G modem provider (such as Sprint, AT&T, or Verizon) with multiple users. Compatible with USB dongles from every mobile provider, this compact router shares an internet connection anywhere there is a 3G mobile signal. No installation is required with auto-recognized modems; simply plug and go.

The router can be powered directly from a laptop's USB ports, eliminating the search for an electrical outlet. The device also features a built in hanging hook allowing users to neatly hang the TEW-716BRG on the back of a laptop screen while working. The TEW-716BRG makes it easy to share a single internet connection while at the airport, job site, carpooling, or even while on vacation.

What's Included With This Item

  • TRENDnet 3G Mobile Wireless Router
  • Multi-Language Quick Installation Guide
  • CD-ROM (User's Guide)
  • USB Power Cable
  • Power Adapter (5 V, 1.2 A)
  • TRENDnet 3 Year Limited Warranty

Key Features

  • USB 2.0 port (3G dongle internet)
  • USB power port
  • Hanging clip neatly hangs the TEW-716BRG on the back of most laptop screens
  • High-speed data rates of up to 150 Mbps based on IEEE 802.11n
  • Compliant with IEEE 802.11b/g standards
  • Works with UMTS / HSPA, WCDMA (HSDPA), CDMA2000 (EV-DO) and TD-SCDMA mobile networks
  • Third party wireless 3G dongles connects to ISPs such as AT&T, Sprint, T-Mobile, or Verizon
  • Powered by computer's USB ports for easy portability or by an optional electrical adapter
  • Advanced wireless encryption of up to WPA2-PSK
  • Built-in antennas provide high-speed performance and expansive wireless coverage
  • Quality of Service (QoS) prioritization controls
  • Advanced Firewall protection with Network Address Translation (NAT), Stateful Packet Inspection (SPI)
  • Denial of Service (DoS) Attacks
  • Static and Dynamic RIP V1/2 routing support
  • Access restriction with Internet Access Control by URL, Domain, packet type and MAC address
  • Universal Plug and Play (UPnP) for auto discovery and support for device configuration of internet applications
  • Easy setup via web browser using Internet Explorer 6.0 or above, Firefox 2.0 or above, Chrome, Opera, Safari
  • One touch wireless connection to wireless clients using the WPS button
  • Easy setup installation wizard with built-in WAN auto detection

Technical Specs

Standards IEEE 802.11b, IEEE 802.11g, Based on IEEE 802.11n technology
USB: USB 2.0, USB 1.1
USB Port 1 x USB 2.0 port for 3G USB Adapter (internet)
1 x USB 2.0 mini-Type B power port
WAN Connection Type USB: 3G
Compatible Mobile Networks UMTS / HSPA, WCDMA (HSDPA), CDMA2000 (EV-DO) and TD-SCDMA
Compatible USB Modems List of Compatible USB Modems
Router / Firewall NAT, NAPT and SPI
Static / Dynamic Route (RIP v1/v2)
UPnP, DMZ, Static / Dynamic Route support
DoS protection, MAC / Packet / Domain and URL filtering (deny or allow).
Power Switch On / off Power Switch
WPS / Reset Button Wi-Fi Protected Setup (WPS) - Automated wireless connection push button (Hold for 3 seconds)
Reset Button - Factory Default (Hold for 20 seconds)
LED Indicator Power / Wireless / WPS, USB (3G modem)
Power Adapter Input: 100 -240 V AC, 50-60 Hz, 0.2 A
Output: 5 V DC, 1.2 A
Power Consumption 350 mA (max.)
Temperature Operation: 0deg.- 40deg.C (32deg.F- 104deg.F)
Storage: -10deg.- 70deg.C (14deg.F-158deg.F)
Humidity Max 95% (Non-Condensing)
Certifications CE, FCC
Frequency 2.400 - 2.484 GHz
Modulation OFDM, DSSS, BPSK, QPSK, CCK
Data Rate 802.11b: up to 11 Mbps
802.11g: up to 54 Mbps
802.11n: up to 150 Mbps
Security 64/128-bit WEP, WPA / WPA2-PSK
Output Power 802.11b: 13 dBm at 11 Mbps
802.11g: 11 dBm at 54 Mbps
802.11n: 10 dBm at 150 Mbps
Receiving Sensitivity 802.11b: -85 dBm at 11 Mbps
802.11g: -70 dBm at 54 Mbps
802.11n: -68 dBm at 150 Mbps
Channels 1-11 (FCC), 1-13 (ETSI)
Dimension (L x W x H) 93x65x19.5mm / 3.66x2.56x0.76"
Weight 66g / 2.3oz
