About TRENDnet N150

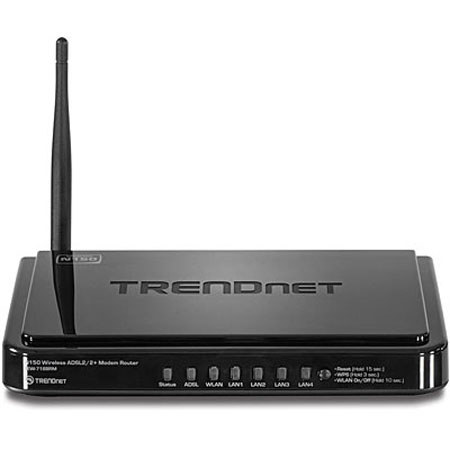

The TRENDnet TEW-718BRM N150 Wireless ADSL 2/2+ Modem Router provides both a modem for Internet access and a wireless n network in a single solution. No need to buy a separate modem and router. This modem supports Internet service providers with ADSL 2 and ADSL 2+ networks. Install TEW-718BRM quickly with a step-by-step setup wizard to browse the Internet, download files and video chat with the latest in wireless n technology. Connect computers, game consoles and media players to the built-in 4-port switch. WMM Quality of Service (QoS) technology prioritizes online gaming, Internet calls and video streams. One-touch Wi-Fi Protected Setup (WPS) connects WPS peripheral devices at the touch of a button.

Summary of Customer Reviews

(5)
Customers most agreed on the following attributes:
Pros:
Easy to set up (3),Fast (3)
Reviewer Profile:
High bandwidth user (4)

TRENDnet N150 Features

  • 4 x 10/100 Mbps Auto-MDIX RJ-45 LAN ports (option to convert one RJ-45 port 1 to a WAN port)
  • 1 x RJ-11 (telephone) ADSL WAN port (Internet)
  • Detachable antenna
  • WPS / reset button
  • Status LEDs
  • Router + Modem or Modem Only (Bridge) modes
  • Modem compliant with ADSL, ASDL2 and ADSL2+ standards
  • Wireless: Data rates of up to 150 Mbps, based on IEEE 802.11n, Backward compatible with IEEE 802.11b/g standards, Create a wireless schedule to automatically turn off wireless when away, Broadcast up to 2 SSIDs with different wireless encryption
  • Wireless: Advanced wireless encryption up to WPA2-RADIUS, One touch wireless connection using the WPS button, Wi-Fi Multimedia (WMM) Quality of Service (QoS) data prioritization
  • Supports up to 8 PVCs
  • Support for IPv6: Static, DHCPv6, PPPoE, 6 to 4 and IPv6 in IPv4 Tunnel, Stateful / Stateless Auto-configuration
  • Support for port-based and 802.1Q VLANs (ID range: 1-4094)
  • Set device time using Network Time Protocol (NTP) and define schedules for Wireless, Virtual Server and Packet Filters
  • Smart Quality of Service (QoS) controls to allocate bandwidth to: Gaming, Chat, VoIP, P2P, Video and Web Access
  • Advance Firewall protection with Network Address Translation (NAT), Stateful Packet Inspection (SPI) and WAN stealth mode
  • Supports Internet Group Multicast Protocol IGMPv1/2/3 proxy and snooping for multicast applications
  • Access Control: Virtual Servers, MAC / IP Packet Filters, URL / Keyword Filters, Demilitarized Zone (DMZ) host,
  • PPTP / L2TP / IPsec VPN pass through
  • Supports static and dynamic RIP v1/2 routing
  • Dynamic DNS support
  • Universal Plug and Play (UPnP) for auto discovery and support for device configuration of Internet applications
  • Local / remote management via Web browser, upgrade firmware and backup / restore configuration
  • Supports TR069 remote management (CPE and ACS support)
  • Device monitoring using modem and router logs, email alerts and SNMP v1/2c support

TRENDnet N150 Specifications

Hardware Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.1p, IEEE 802.11b, IEEE 802.11g, based on IEEE 802.11n technology
Complies with ADSL standards
ANSI T1.413 Issue2
G.992.1 (G.dmt, Annex A)
G.992.2 (G.lite)
Complies with ADSL2 standard
G.992.3 (G.dmt.bis, Annex L)
Complies with ADSL2+ standard
G.992.5 (G.dmt.bis+, Annex M)
WAN (ADSL Line Interface)
1 x RJ-11 port (telephone)
LAN
4 x 10/100 Mbps Auto-MDIX RJ-45 ports (option to convert port 1 to WAN port)
Hardware Options
Reset: Reset to factory defaults (Hold for 15 sec.)
WPS: Activates Wi-Fi Protected Setup (WPS) (Hold for 3 sec.)
WLAN On / Off: Enables or disables wireless radio (Hold for 10 sec.)
ATM & PPP Protocols / Modes
VC and LLC multiplexing (Up to 8 PVCs)
Ethernet over ATM (RFC 1483 Bridged) with NAT
RFC 1483 bridged
IP over ATM (RFC 1483 Routed)
PPP over ATM (RFC2364)
PPP over Ethernet (RFC2516)
ATM Traffic QoS (UBR, CBR, VBR, GFR)
Firewall
NAT, SPI, DMZ host, virtual servers, MAC / IP filters, URL / keyword filters, deny WAN ping requests and WAN stealth mode
Schedules
Define schedules for wireless, virtual server, packet filters and QoS
Network Protocols
IGMP v1/2/3 proxy and snooping
Static and dynamic routing RIP v1/2
UPnP
DHCP (Dynamic Host Configuration Protocol) server / relay
Dynamic DNS (DynDNS.com, No-IP.com, TZO.com and dhs.org)
NTP (Network Time Protocol)
PPTP / L2TP / IPsec VPN pass through
IPv6: Static, DHCPv6, PPPoE, 6 to 4 and IPv6 in IPv4 Tunnel, Stateful / Stateless auto-configuration
Quality of Service
Smart-QoS (simple) or manually defined QoS ToS / CoS (Type of service / Class of service) based on IP, TCP/UDP port, MAC, DSCP (Differentiated Services Code Point) and WMM
Management / Monitoring
Local / remote configuration, upgrade firmware, backup / restore configuration via web browser, TR-069 remote management, DoS (Denial of Service) detection, internal system log, Syslog, email alert, SNMP v1/v2c, ping test tool and Wake-on-LAN (WoL), NAT Status log, Client List log, Web log, Modem log
LED Indicators
Status, ADSL, WLAN, LAN1-LAN4
Power Adapter
Input: 100-240 V AC, 50-60 Hz, 0.2 A
Output: 5 V DC, 1.2 A external power adapter
Power Consumption
5 watts (max)
Temperature
Operation: 0deg. - 40deg.C (32deg.F - 104deg.F)
Storage: -10deg. - 70deg.C (14deg.F - 158deg.F)
Humidity
Max 95% (non-condensing)
Wireless Frequency
2.4 -2.483 GHz band
Wireless Modulation
DBPSK / DQPSK / CCK / OFDM (BPSK / QPSK / 16-QAM / 64-QAM)
Wireless Modes
Access Point Router
Access Point Only
WDS Hybrid
WDS Only
Universal Repeater
Wireless SSID
Broadcast up to 2 SSIDs each with different wireless encryption with support for VLAN mapping
Wireless Antenna
1 x 2 dBi detachable dipole antenna (TEW-718BRM5: 1 x 5 dBi detachable dipole antenna)
Wireless Data Rate
802.11b: up to 11 Mbps
802.11g: up to 54 Mbps
802.11n: up to 150 Mbps
Wireless Security
WEP (HEX/ASCII): 64/128-bit
WPA (AES/TKIP): WPA / WPA2-RADIUS, WPA-PSK / WPA2-PSK
Wireless Output Power
802.11b: 17 dBm (typical)
802.11g: 14 dBm (typical)
802.11n: 14 dBm (typical)
Wireless Receiving Sensitivity
802.11b: -91 dBm (typical) at 11 Mbps
802.11g: -91 dBm (typical) at 54 Mbps
802.11n: -87 dBm (typical) at 150 Mbps
Wireless Channels
1- 11 (FCC), 1-13 (ETSI)
Dimension (LxWxH)
189.00x118.00x33.00mm (7.44x4.64x1.30")
Weight
221.10g (7.80oz)

TRENDnet N150 Reviews

Review Snapshot®


4.2

(based on 5 reviews)

Ratings Distribution

  • 5 Stars



    (2)

  • 4 Stars



    (2)

  • 3 Stars



    (1)

  • 2 Stars



    (0)

  • 1 Stars



    (0)

Reviewed by 5 customers


5.0

Small, easy to setup and easy to use

By

from Michigan  -  Tech Savvy

I love the compact size. Range in my apartment is really good, too. This is the same brand my boss recommends for his clients. Setup was pretty easy with the included CD/DVD. There was one question I wasn't sure about (which type of security), but I just searched it on the Internet and found out which type was more secure.


4.0

TRENDnet N150 Easy-N-Range Extender

By

from il  -  High bandwidth user

very good product..got it in time,good service


3.0

IT OK not that great

By

from new jersey  -  High bandwidth user

This extender works OK, and extend the wifi but the speed is slow for the data upload and download.


4.0

Good Extender, took a little longer...

By

from san francisco  -  High bandwidth user

So far, so good. Got this 3 weeks ago, and set it up a few days ago. Right now, the signal strength is great downstairs in my house. The only issue is that it takes a little longer than the Belkin extender I already have to link up. We also had to try a few times while the light continued to flash green. However, I used the WPS to setup, while I used the internal web setup on the other range extender. So sort of comparing apples to oranges in terms of setup.


5.0

Great

By

from Los Angeles, CA  -  High bandwidth user

Easy to use, very fast. Great price. Thankx.

Q&A

Questions & Answers Powered by TurnTo®

Questions about this item:

Shopper  Is this modem the same as the Actiontec C1000A?
Andrew R  Not specified by the manufacturer.
