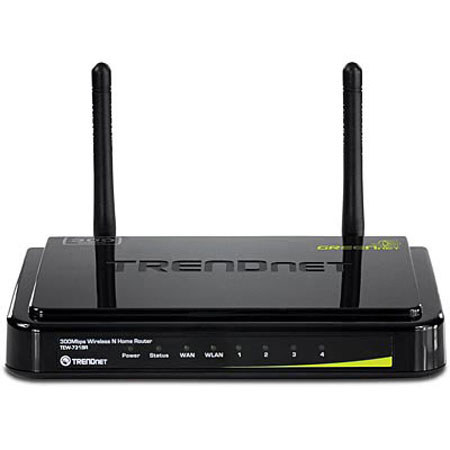

TRENDnet TEW-731BR N300 Wireless Home Router

SKU: TNEW731BR MFR: TEW-731BR

Our Price

$19.49
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

TRENDnet TEW-731BR: Picture 1 regular $19.49

About TRENDnet TEW-731BR

The TRENDnet TEW-731BR N300 Wireless Home Router provides enhanced 300Mbps wireless n speed and coverage to share files, play games and stream video wirelessly. Advanced encryption protects your wireless network, Access Control tools help block unwanted Websites and unknown users and embedded GREENnet technology reduces power consumption by up to 50%. Advanced Multiple Input Multiple Output (MIMO) antenna technology reduces wireless dead spots.

Wi-Fi Protected Setup (WPS) connects other WPS supported wireless adapters at the touch of a button. WMM Quality of Service (QoS) technology prioritizes gaming, Internet calls and video streams. LEDs on the front of the router convey device status. Network wired devices to the four Fast Ethernet ports on the back of the router.

TRENDnet TEW-731BR Features

  • 4 x 10/100Mbps Auto-MDIX LAN ports
  • 1 x 10/100Mbps Auto-MDIX WAN port (Internet)
  • One touch wireless connection to wireless clients using the WPS button
  • Wi-Fi compliant with IEEE 802.11n and IEEE 802.11b/g standards
  • High-speed data rates of up to 300Mbps with IEEE 802.11n
  • GREENnet technology reduces power consumption by up to 50%
  • Compatible with most popular cable/DSL Internet service providers using Dynamic/Static IP, PPPoE, PPTP and L2TP protocols
  • 2 fixed external antennas support high speed performance and great coverage with MIMO technology
  • Firewall features Network Address Translation (NAT)
  • Virtual server and Application Level Gateway (ALG) services for special Internet applications
  • Universal Plug and Play (UPnP) for auto discovery and support for device configuration of Internet applications
  • Dynamic DNS Client for dynamic Internet IP resolution
  • Provides additional security with Internet Access Control (MAC Address, Domain and IP Filtering)
  • Static and Dynamic RIP V1/2 routing support
  • Easy setup via Web browser using Internet Explorer 6.0 or above, Firefox 2.0 or above, Chrome, Opera, Safari
  • Advanced wireless security of up to WPA2-RADIUS
  • Wi-Fi Multimedia (WMM) Quality of Service (QoS) data prioritization
  • Indoor coverage up to 100 m (330') depending on the environment
  • Outdoor coverage up to 300 m (980') depending on the environment

TRENDnet TEW-731BR Specifications

Hardware Standards
IEEE 802.3 (10BASE-T), IEEE 802.3u (100BASE-TX)
IEEE 802.11b, IEEE 802.11g
IEEE 802.11n
IEEE 802.3az
WAN
1 x 10/100Mbps Auto-MDIX port (Internet)
LAN
4 x 10/100Mbps Auto-MDIX ports
WPS Button
Enables Wi-Fi Protected Setup (WPS) function (Hold for 3 seconds)
Power Switch
On/Off power switch
Connection Type
Dynamic IP, Static (fixed) IP, PPPoE, PPTP, L2TP
Supported Web Browsers
Internet Explorer 6.0 or above, Firefox 2.0 or above, Chrome, Opera, Safari
Internet Access Control
MAC Address Filter, Domain/URL Filter, Protocol/IP Filter, Virtual Server, DMZ host, UPnP, PPTP/L2TP/IPsec VPN pass through
Management/ Monitoring
Local/remote configuration, upgrade firmware, Backup/Restore configuration via Web browser, Internal System Log, Syslog, E-Mail Logging, SNMPv1/v2c, Ping Test Tool, Dynamic DNS
Routing
Static and Dynamic RIPv1/2
LED Indicators
Power, Status, LAN1-LAN4, WAN, WLAN
Power
Input: 100-240V AC, 50-60Hz
Output: 5V DC, 1A
Power Consumption
3.0 Watts (max)
Temperature
Operation: 0deg.- 40deg.C (32deg.F- 104deg.F)
Storage: -10deg.- 70deg.C (14deg.F-158 deg.F)
Humidity
Max. 90% (non-condensing)
Wireless Frequency
2.412-2.484GHz band
Wireless Antenna
2 x 2dBi fixed dipole antennas
Wireless Modulation
802.11b: CCK (11 and 5.5Mbps), DQPSK (2Mbps), DBPSK (1Mbps)
802.11g: OFDM with BPSK, QPSK and 16/64-QAM
802.11n: BPSK, QPSK, 16QAM, 64QAM with OFDM
Wireless Media Access Protocol
CSMA/CA with ACK
Wireless Data Rate
802.11b: Up to 11Mbps
802.11g: Up to 54Mbps
802.11n: Up to 300Mbps
Wireless Security
64/128-bit WEP (HEX/ASCII), WPA/WPA2-RADIUS, WPA/WPA2-PSK
Wireless Output Power
802.11b: 15dBm (typical) at 11Mbps
802.11g: 15dBm (typical) at 54Mbps
802.11n: 13dBm (typical) at 300Mbps
Wireless Receiving Sensitivity
802.11b: -85dBm (typical) at 11Mbps
802.11g: -68dBm (typical) at 54Mbps
802.11n: -62dBm (typical) at 300Mbps
Wireless Channels
1- 11 (FCC), 1-13 (ETSI)
Dimension (LxWxH)
158.00x109.00x34.00mm (6.22x4.30x1.33")
Weight
210g (7.40oz)
Mfr #
TEW-731BR
SKU
TNEW731BR
