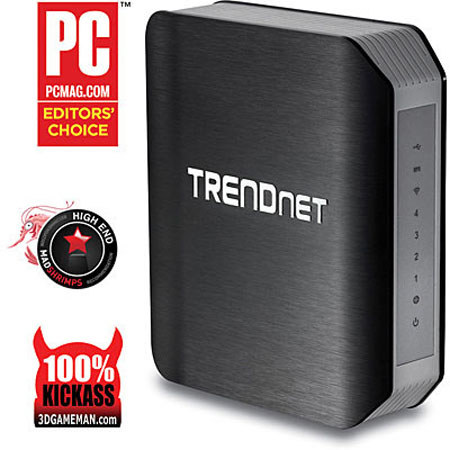

TRENDnet AC1750 Dual Band Wireless Router - Version 2.0

Our Price

$119.99
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

Availability: In Stock & Ready to Ship

Free Expedited Shipping

See all shipping options

TRENDnet AC1750: Picture 1 regular $119.99

About TRENDnet AC1750

The TRENDnet AC1750 Dual Band Wireless Router produces the ultimate wireless experience with gigabit wireless speeds. Manage two wireless networks-the 1300 Mbps Wireless AC band for the fastest wireless available and the 450 Mbps Wireless N band to connect common wireless devices. The TEW-812DRU can easily handle the demands of multiple HD streams in a busy connected home.

Plug in a USB flash or NAS drive to share HD videos and music across the network. Gigabit ports on the back of the router maintain high speed wired connections. Create a secure isolated guest network for guest internet access. Beamforming technology directs the strongest signal to each connected device. Multiple-MIMO technology enables communication with multiple devices simultaneously. Wi-Fi Protected Setup (WPS) connects other WPS supported wireless adapters at the touch of a button. Manage access to websites and file types with advanced access controls.

TRENDnet AC1750 Features

  • 4 x 10/100/1000 Mbps Auto-MDIX LAN ports
  • 1 x 10/100/1000 Mbps WAN port (Internet)
  • 1 x USB 2.0 port for USB share (storage and printing)
  • 1 x Wi-Fi Protected Setup (WPS) button
  • On / off power switch (EU version)
  • Simultaneously transmit both 2.4 GHz and 5 GHz wireless networks
  • Compliant with the latest draft 802.11ac wireless technology
  • Backwards compatible with IEEE 802.11n/b/g/a wireless standards
  • High-speed data rates of up to 1.3 Gbps with 802.11ac and 450 Mbps with 802.11n on both 2.4 GHz and 5 GHz band
  • IPv6 (Internet Protocol v6) support
  • FTP and Samba USB storage support
  • Share USB peripheral devices over the network including; flash drives, external hard drives and printers
  • Printer Control Center utility supports Windows 8 (32/64-bit), 7 (32/64-bit), Vista (32/64-bit), Windows XP (32/64-bit) and
  • Mac OS X 10.6/10.7/10.8 operating systems
  • Compatible with most popular cable / DSL Internet Service Providers using Dynamic / Static IP, PPPoE, L2TP and PPTP connection
  • Firewall protection with Network Address Translation (NAT)
  • Wireless Distribution System (WDS) support for wireless network bridging
  • Advance wireless security of up to WPA2-RADIUS
  • Wi-Fi Multimedia (WMM) and configurable WAN Quality of Service (QoS) support
  • Guest network support (3x per wireless band) with Internet access restriction
  • Internet Access Control with MAC, URL, Service Type and IP Range filtering
  • One touch wireless connection using the WPS button
  • Easy setup via Web browser using the latest versions of Internet Explorer, FireFox, Safari and Chrome
  • Virtual server and Application Level Gateway (ALG) services for special Internet applications
  • Universal Plug and Play (UPnP) for auto discovery and support for device configuration of Internet applications

TRENDnet AC1750 Specifications

Standards
Wired: IEEE 802.3 (10Base-T), IEEE 802.3u (100Base-TX), IEEE 802.3ab (1000Base-T)
Wireless: IEEE 802.11ac (draft), IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, 802.11a
Internet Protocol
IPv4 and IPv6
LAN
4 x 10/100/1000 Mbps Auto-MDIX
WAN
1 x 10/100/1000 Mbps Auto-MDIX
USB
1 x USB 2.0 Type-A (Storage / Printing)
WPS Button
Wi-Fi Protected Setup (WPS) connects with other WPS compliant devices
Reset Button
Reset unit back to factory default (press and hold for 10 seconds)
Network Protocols
IGMP v1/2/3 proxy and snooping, Static and dynamic routing, UPnP, DHCP, server, Dynamic DNS (No-IP.com and DynDNS.com), NTP, IPsec / PPTP / L2TP VPN pass through, IPv6
Quality of Service
WMM and WAN (Configurable Upload / Download)
Control Center Utility: OS Support
Windows: 8 (32/64-bit), 7 (32/64-bit), Vista (32/64-bit), XP (32/64-bit)
Mac OS X: 10.4 / 10.5 / 10.6 / 10.7
Internet Connection Type
IPv6, Dynamic IP, Static (fixed) IP, PPPoE, PPTP, L2TP
Firewall
NAT, SPI, DMZ host, virtual servers, MAC / IP filters and URL filter
Management / Monitoring
Local / remote configuration, upgrade firmware, backup / restore configuration via web browser, internal system log, ping test tool
Supported Web Browser
Internet Explorer 6.0 or above, Firefox 2.0 or above, Chrome, Opera, Safari
LED Indicator
Power, LAN 1-4, WAN, 2.4 GHz Wireless, 5 GHz Wireless, WPS
Power Adapter
Input: 100 - 240 V, 50-60 Hz, 0.8 A
Output: 12 V DC, 2 A external power adapter
Power Consumption
18 watts (max.)
Temperature
Operation: 0deg.- 40deg.C (32deg.F- 104deg.F)
Storage: -20deg.- 60deg.C (-4deg.F-140deg.F)
Humidity
Max 90% (non-condensing)
Wireless Frequency
2.4 GHz: 2.412-2.462 (FCC) and 2.412-2.472 (ETSI)
5 GHz: 5.15 - 5.250 / 5.725-5.850 GHz (FCC) 5.15 - 5.250 (ETSI)
Wireless Antenna
2.4 GHz: 3 x 2 dBi PIFA internal
5 GHz: 3 x 2 dBi PIFA internal
Wireless Modulation
CCK, DQPSK, DBPSK, OFDM, BPSK, QPSK, 16/64/256-QAM
Wireless Data Rate
802.11a: up to 54 Mbps
802.11b: up to 11 Mbps
802.11g: up to 54 Mbps
802.11n: up to 450 Mbps (for both 2.4 & 5 GHz)
802.11ac: up to 1.3 Gbps
Wireless Security
64/128-bit WEP, WPA/WPA2-PSK, WPA/WPA2-RADIUS
Wireless Guest network
Up to 3 per wireless band
Wireless Access Control
MAC Address Filter (Up to 24 entries)
Wireless Output Power
802.11a: FCC 22 dBm (typical), CE 18 dBm (typical)
802.11b: 19 dBm (typical) (for 2.4 & 5 GHz)
802.11g: 18 dBm (typical) (for 2.4 & 5 GHz)
802.11n: 18 dBm (typical) (for 2.4 & 5 GHz)
802.11ac: FCC 23 dBm (typical), CE 19 dBm (typical)
Wireless Receiving Sensitivity
802.11a: -68 dBm (typical) at 54 Mbps
802.11b: -84 dBm (typical) at 11 Mbps
802.11g: -72 dBm (typical) at 54 Mbps
802.11n: 18 dBm (typical) at 300 Mbps
802.11an:-68 dBm (typical) at 450 Mbps (for 2.4 & 5 GHz)
802.11ac: -55 dBm (typical) at 1.3 Gbps
Wireless Channels
2.4 GHz: 1-11 (FCC), 1-13 (ETSI)
5 GHz: 36, 40, 44, 48, 149, 153, 157, 161 and 165 (FCC), 36, 40, 44, 48 (ETSI)
Dimension (LxWxH)
48x155x180mm (1.9x6.1x7.1")
Weight
395 g (14 oz)
Mfr #
TEW-812DRU
SKU
TNEW812DRU

TRENDnet AC1750 Reviews Powered by TurnTo®

Reviewed by 3 customers


1.0

Save Your Money

By

Worked for 20 minutes then would no longer establish an Internet connection. USA/Canada customer service did not answer the phone so I called the other help number. Got a guy in India who hung up on me after he took all my details. Returned item to Adorama for refund. Will purchase a different brand.


1.0

Worked 20 Minutes, Terrible Tech Support

By

Plugged it in, got an Internet connection for about 20 minutes. After that it failed to make a connection again. Spent hours trying to figure it out. Finally called tech support and got someone in India who hung up on me after I gave him all the details. He had no idea anyway how to help me. USA tech support was out to lunch all day long. Left a message and they returned my call three days later. By that time I had already returned the router to Adorama for a refund. Advice: Buy a different product!


5.0

Faster then old SMC Wireless

By

Internet speed is much faster with this wireless router.
